About the Q-Forms Kick Panel Enclosures
Many award-winning sound-off competitors put their mid-woofers and tweeters in custom-built kick panel enclosures because that's one of the best ways to get a concert-quality stereo image. But why pay hundreds of dollars to an installer? Mount your 5-1/4" components in Q-Logic's Q-Forms, which deliver competition-quality imaging without the expensive custom installation work.
With Q-Forms, each speaker is located and angled to maximize sound quality. The theory is that the distance between your ears and each of the speakers should be equal. With your speakers in the kick panels, it's like sitting in that "sweet spot" at a concert or right between your home speakers.
All the available colors for the Q-Forms that fit your 2000-up Dodge Neon are listed here. Pick the color that matches your interior. If there is no match for your vehicle, that means Q-Forms are not available for it.
To install your component speakers in the Q-Forms, you have to cut holes for them in the Q-Form panels. Installing the Q-Form panels in your vehicle may sometimes require relocation of the parking brake pedal or other vehicle parts. Please check with us before purchasing by using the vehicle selector on our site, or calling a Sales Advisor at 1-888-955-6000 to verify fit information.
What's in the box:
Q-Forms Kick Panel Enclosures owner's manual
- 2 Black plastic Q-Forms for Dodge Neon
- 2 Black plastic mesh grilles
- 2 Pieces of Poly-fil batting (8" x 6")
- 41" Length of "U-channel" rubber grille gasket
- Roll of foam tape
- 2 Self-tapping screws (#8 x 3/4")
- Installation instruction sheet
12 reasons to shop with us
#3
Free tech support for the life of your gear
Here in Virginia, 7 days a week.
REVIEWS
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
More details on the Q-Forms Kick Panel Enclosures
Product Research
Features
Product Overview: Q-Logic Q-Form custom kick panels are designed to hold a 2-way component speaker system consisting of a 5-1/4" woofer (or a larger woofer up to 6-1/8" diameter) and a tweeter (up to 2" diameter). They are fabricated of durable ABS plastic, color-matched to the factory interior colors, and directly replace the factory kick panels. The positioning and angle of the speakers provide optimum stereo imaging and staging. Because no modifications to the vehicles are necessary, the Q-Forms can be used to improve the sound systems of leased vehicles.
Grilles: Two color-matched, plastic mesh woofer grilles are included. You may be able to use the grilles supplied with the component system, instead of the color-matched grilles, if room permits.

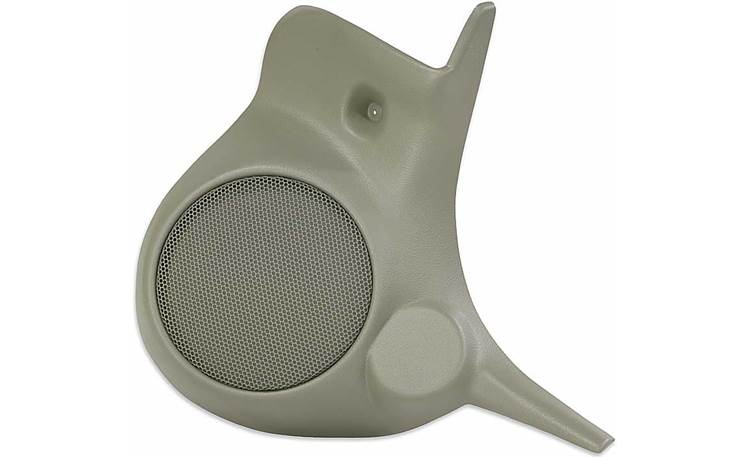

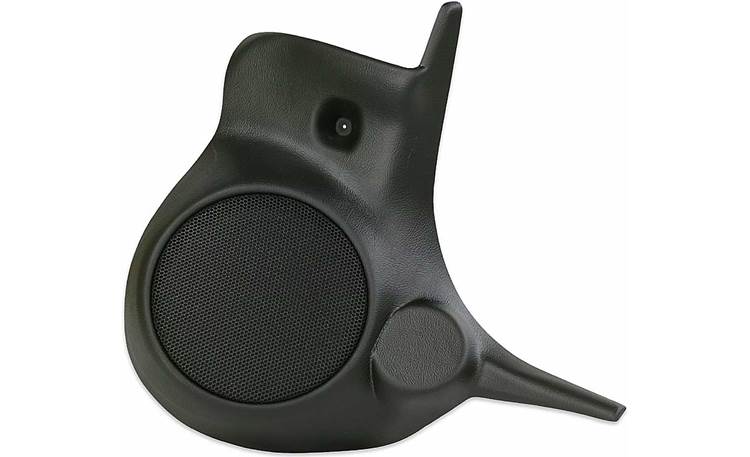

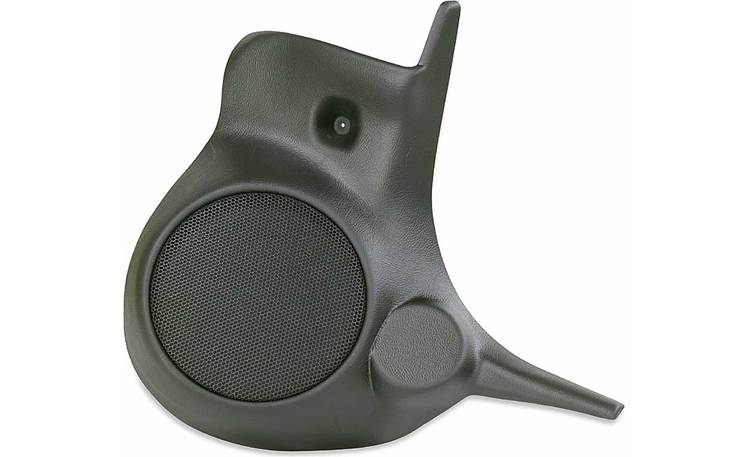

Compatibility: These Q-Forms are designed to fit the 2000-up Dodge Neon. These kick panels match the factory Black interior trim. The kick panels are also available in Taupe and Agate. Note: For each specific vehicle, please verify compatibility with Auto Install Guide.
Installation Overview: You will need to cut out the mounting holes in the designated areas of the plastic Q-Form. A "dimple" is provided on the underside of the Q-Form to mark the center of the speaker and tweeter mounting surfaces for positioning the pilot drill. A roll of foam tape is provided for sealing the woofer in the kickpanel. The tweeter can be flush or surface mounted. Giving exact mounting depths is not possible, since it will depend to some extent on the space available behind the factory kick panel.
