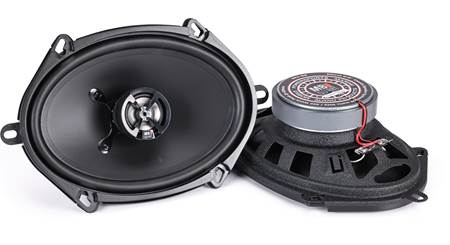

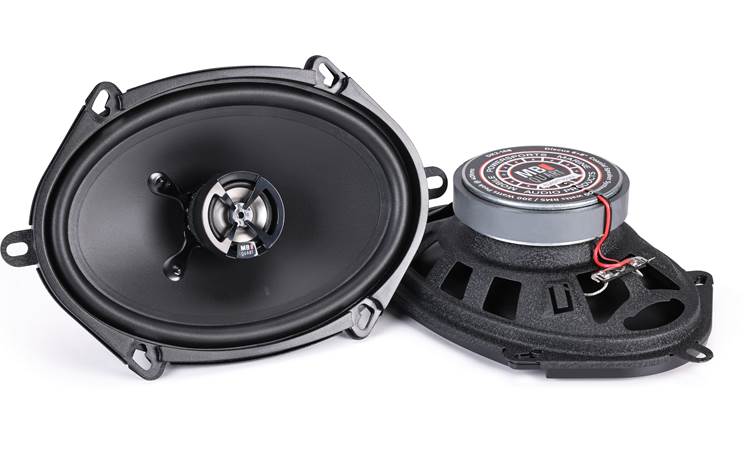

About the MB Quart DK2-168

Product highlights:
- 2-way car speakers (pair)

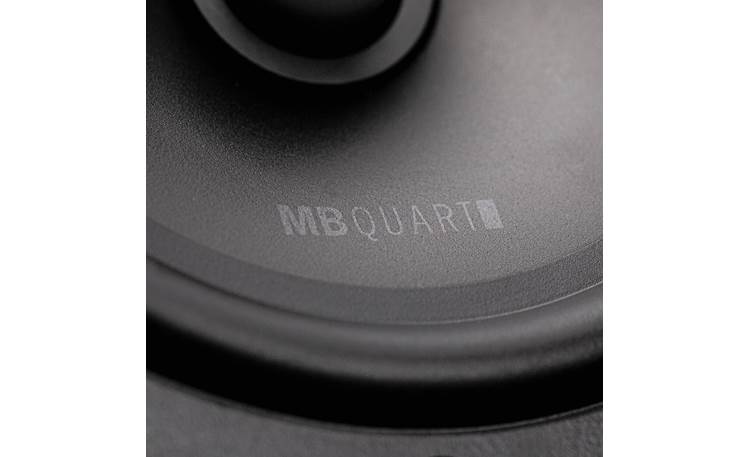

- 5"x7" / 6"x8" polypropylene woofer cone with butyl rubber surround
- aluminum inverted-dome tweeter
- handles up to 50 watts RMS (100 watts peak power)
- frequency response: 46-20,000 Hz
- sensitivity: 88 dB
- top-mount depth: 2.247"
- grilles not included
- warranty: 1 year
- MFR # DK2-168
- Item # 049DK2168
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart DK2-168 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers

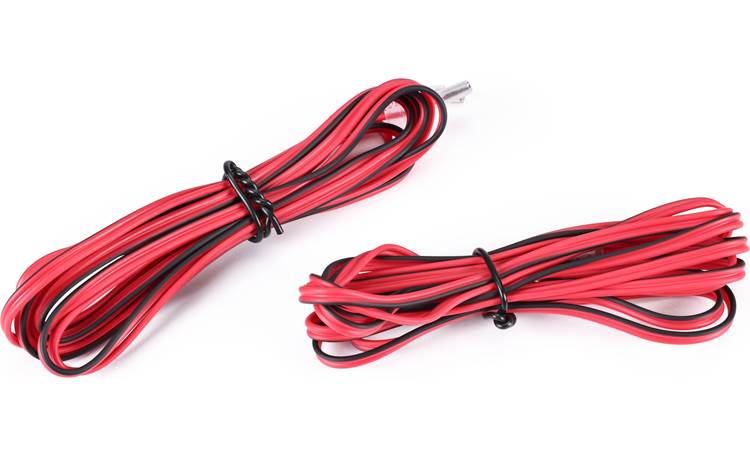

- Two 6' Lengths of speaker wire (quick slides on one end and bare wire on the other)
- Eight 1-3/8" Screws
- 8 Speed clips
- Installation guide
- Specs printed on the box
More details on the MB Quart DK2-168

Features & specs
General | ||
---|---|---|
Speaker Size | 5X7/6X8 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 46 - 20k Hz | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 100 | |
Top-mount Depth (Inches) | 2 1/4 | |
Bottom-mount Depth (Inches) | 2 5/8 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.517 | |
Frame Width | 5.446 | |
Frame Length | 7.55 |
