About the MB Quart DS2-216

Product highlights:

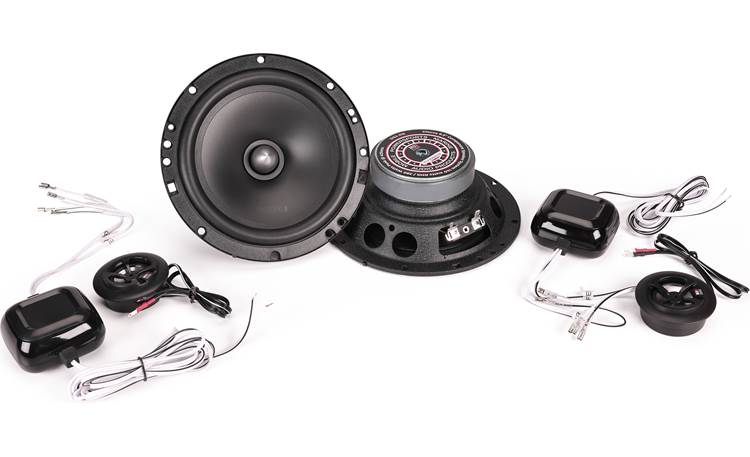

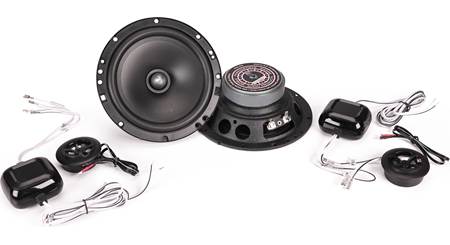

- component speaker system includes 2 woofers, 2 tweeters, 2 external crossovers, and 2 woofer grilles

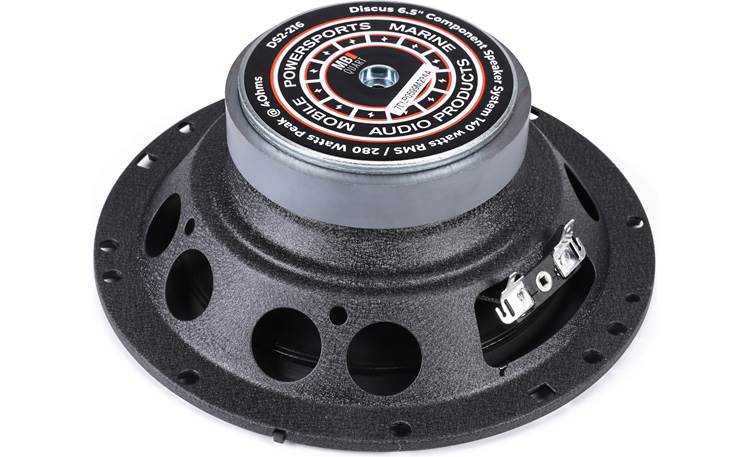

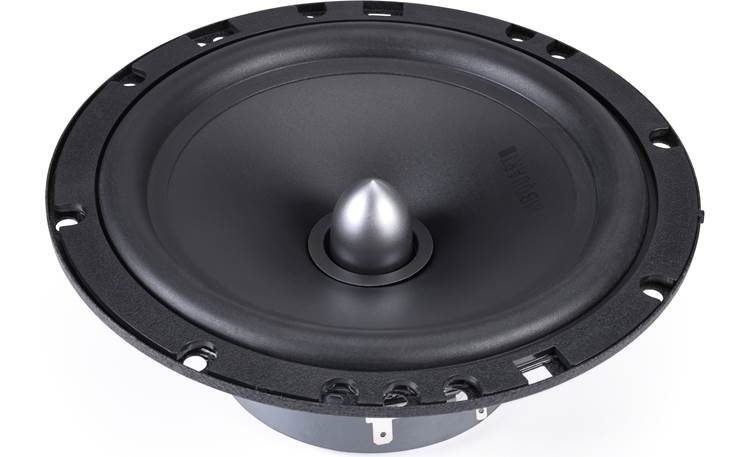

- 6-1/2" polypropylene woofer cone with butyl rubber surround
- aluminum inverted dome tweeter
- handles up to 70 watts RMS (140 watts peak power)
- frequency response: 55-20,000 Hz
- sensitivity: 88 dB
- woofer top-mount depth: 2.29"
- woofer cutout diameter: 5.514"
- grilles included
- warranty: 1 year
- MFR # DS2-216
- Item # 049DS2216
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart DS2-216 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Woofers
- 2 Tweeters (each has a 19" wire attached)
- 2 Crossovers

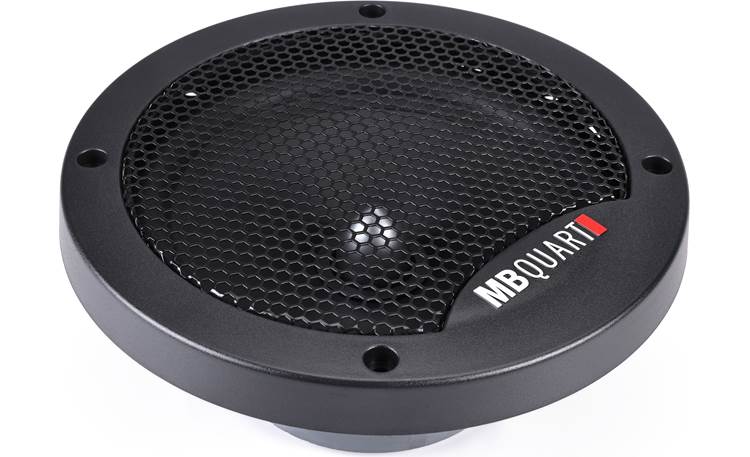

- 2 Woofer grilles
- 2 Flush-mount housings (Tweeter)
- 2 Metal flush-mount clamps
- 2 Angled surface-mount bases (Tweeter)
- 2 Universal tweeter mounting straps
- 2 Adhesive backed tweeter pads
- Eight 1-3/8" Screws
- Four 1" Screws
- 12 Speed clips
- Installation guide
- Specs printed on the box
More details on the MB Quart DS2-216

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 55 - 20k Hz | |
Maximum RMS Wattage | 70 | |
Peak Power Handling (Watts) | 140 | |
Top-mount Depth (Inches) | 2 5/16 | |
Bottom-mount Depth (Inches) | 2 1/2 | |
Cutout Diameter or Length (inches) | 5 9/16 | |
Mounting Height (Inches) | 0.254 | |
Frame Width | 6.595 | |
Frame Length | 6.595 |
Product Research
Features
Woofer Size Classification Note: Some manufacturers, including MB Quart, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size as a 6¾". Please enter your vehicle information to confirm fit.

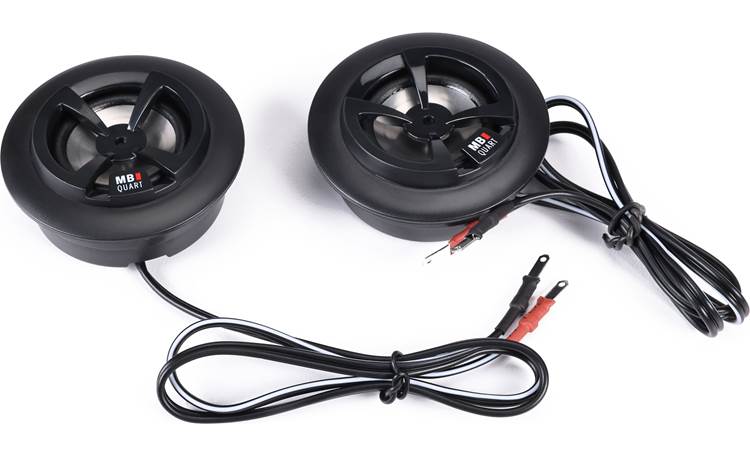

Tweeter Mounting: There are three options for mounting the tweeters, flush mount, angled surface mount, and straps are included for mounting behind the factory grilles.
Flush Mount | Angled Surface Mount | |
---|---|---|
Mounting Height | 0.25" | 1.5" |
Depth | 0.7" | N/A |
Frame Diameter | 2.235" | 2"x1.875" |
Cutout Diameter | 1.935" | N/A |

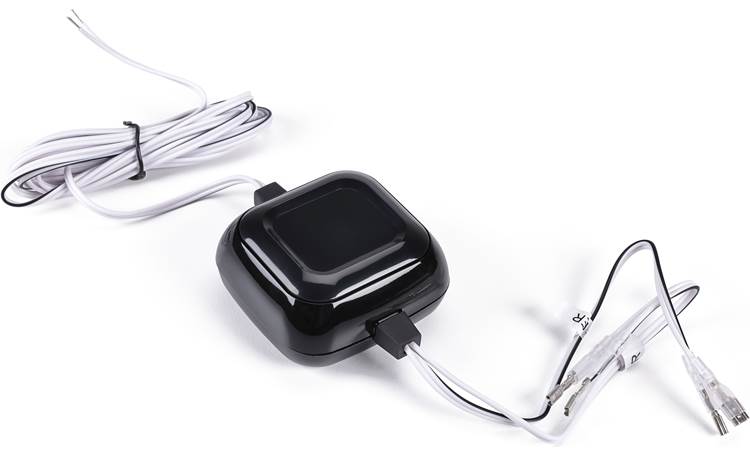

Crossovers: The input and output wires are attached to the crossovers. The 76" input wires are not terminated (tinned bare wire). The 8" woofer and tweeter output wires are terminated with quick slides to easily attach to the drivers. Each crossover has an adhesive pad on the bottom for mounting.
Crossovers Dimensions:
- Width: 2⅜" (3¼" including wire)
- Height: 1⅜"
- Depth: 2½"
