About the MB Quart NF1-116
Product highlights:

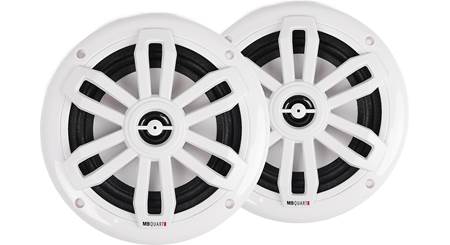

- 6-1/2" shallow-mount marine speakers (pair)
- white grilles included
- polypropylene woofer with Butyl rubber surround
- 3/4" composite dome tweeter
- water-resistant aramid fiber spider
- IP67 certified for marine use
- lightweight composite frame
- UV- and salt water-resistant
- power rating: 40 watts RMS (80 watts peak power)
- frequency response: 65-20,000 Hz
- impedance: 4 ohms
- sensitivity: 89 dB
- cut out diameter: 5-1/16"
- frame diameter: 7-1/8"
- mounting depth: 2-3/8"
- warranty: 1 year
- MFR # NF1-116
- Item # 049NF1116
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart NF1-116 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way marine speakers
- Eight 1-3/8" Stainless steel screws
- 8 Speed clips
- Quick start installation guide
- Specifications printed on box
More details on the MB Quart NF1-116
Researched by Crutchfield's Pat M.
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 3/4" Dome | |
| Tweeter Composition | Composite | |
| Woofer Composition | Composite Polypropylene | |
| Woofer Surround | Butyl Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity |
89 dB at 1 watt | |
| Frequency Response | 65 - 20k Hz | |
| Max RMS Power Handling | 40 | |
| Peak Power Handling (Watts) | 80 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 2 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 1/16 | |
| Bolt Circle | 6.3915 | |
Product Research
Features
Woofer Cone: The woofer cones are made of UV protected Thermal Formed Polypropylene.
UV Protection: The composite plastic grills and frames are UV protected, helping prevent color fade.
Tweeters: The tweeters are bridge mounted to the grilles, rather than to a pole piece, thus there is no chance of water leaking through the woofer cone.
Loading...
Loading accessories...
Customer Q&A
3 questions already asked
Q
Do I need an enclosure for the speakers to use in my travel trailer when mounting in the ceiling?
mayday May 30, 2021
1 answer
A
No, you do not need an enclosure for the speakers if you are mounting them to the ceiling. But you will need a set of enclosures if you decide to mount an additional set of speakers on the outside of your travel trailer.
charles Jun 09, 2021
Q
can i use a 4 way speaker as a marine speaker or should i get a normal marine speaker?
frank Nov 06, 2020
3 answers
A
Depending on the application if it's going to be outside I would most likely use a Moreen speaker but if this speaker is going to be inside the cabin you might be able to get away with a four-way speaker promises with the moisture the marine speakers are designed for Moreen applications corrosion and rust etc.Enter an answer to this question.
paul Nov 07, 2020
A
Personally I would get a marine speaker because of the water and especially the salt air it will definitely last longer. As you can see Crutchfield has some great deals on them
joseph Nov 06, 2020
A
If you are in freshwater you could probably get away with a standard car speaker as long as it has a non-paper cone and rubber surround. If you are on saltwater I wouldn't do anything but marine.
william Nov 06, 2020
Q
What's the outside diameter of the plastic mounting ring ?
bill Sep 10, 2019
1 answer
A
7" outside edge to outside edge
clay Sep 14, 2019
Loading...
Loading articles...
MB Quart NF1-116 were just what the customer service rep from Crutchfield said they would be. Great speakers for the price and my boat sounds awesome. Can't wait to hook up the amp to really see how my whole system performs. Thanks again Crutchfield!!
Robert from Wayne, NJ
