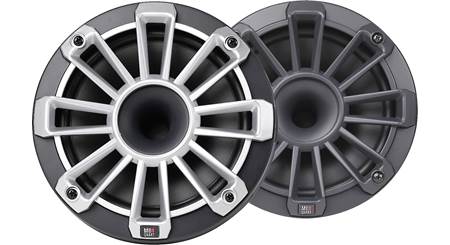

About the MB Quart NP1-116

Product highlights:
- 6-1/2" marine speakers (pair)
- white, silver, and black grilles included
- polypropylene woofer with Butyl rubber surround
- 1" titanium tweeter
- water-resistant aramid fiber spider
- IPx67 certified for marine use
- lightweight composite frame
- UV- and salt water-resistant
- power rating: 60 watts RMS (120 watts peak power)
- frequency response: 30-22,000 Hz
- impedance: 4 ohms
- sensitivity: 92 dB
- cutout diameter: 5-9/16"
- top-mount depth: 3-3/16"
- warranty: 1 year
- MFR # NP1-116
- Item # 049NP1116
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart NP1-116 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way marine speakers
- 2 Black grilles
- 2 White grilles
- 2 Silver grilles
- Eight 1-3/4" Stainless steel screws
- 8 Speed clips
- 2 Adhesive backed MB Quart badges
- Quick start installation guide
More details on the MB Quart NP1-116

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | 1" Dome | |
Tweeter Composition | Titanium | |
Woofer Composition | Polypropylene | |
Woofer Surround | Santoprene Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity |
92 dB at 1 watt | |
Frequency Response | 30 - 22k Hz | |
Max RMS Power Handling | 60 | |
Peak Power Handling (Watts) | 120 | |
Impedance (Ohms) | 4 | |
Top-mount Depth (Inches) | 3 3/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 5 9/16 | |
Bolt Circle | 6.093 |
Product Research
Features
Woofer Cone: The woofer cones are made of UV protected injection molded polypropylene.
Mounting Gasket: Polymer gaskets are used to keep the speaker isolated from the mounting surface and improve protection from water intrusion.
Water Resistant Spider: Each speaker uses an aramid fiber composite spider, which will not degrade over time and is not susceptible to temperature changes.
Tweeters: The 1" titanium dome tweeters use waterproof, coated silk surround and are bridge mounted, rather than mounted to a pole piece, thus there is no chance of water leaking through the woofer cone.
Crossover: The Butterworth crossovers have PTC (Positive Thermal Coefficient) tweeter protection and a slope of 12 dB/octave.
UV Protection: The composite grills and frames are UV protected, helping prevent color fade.
