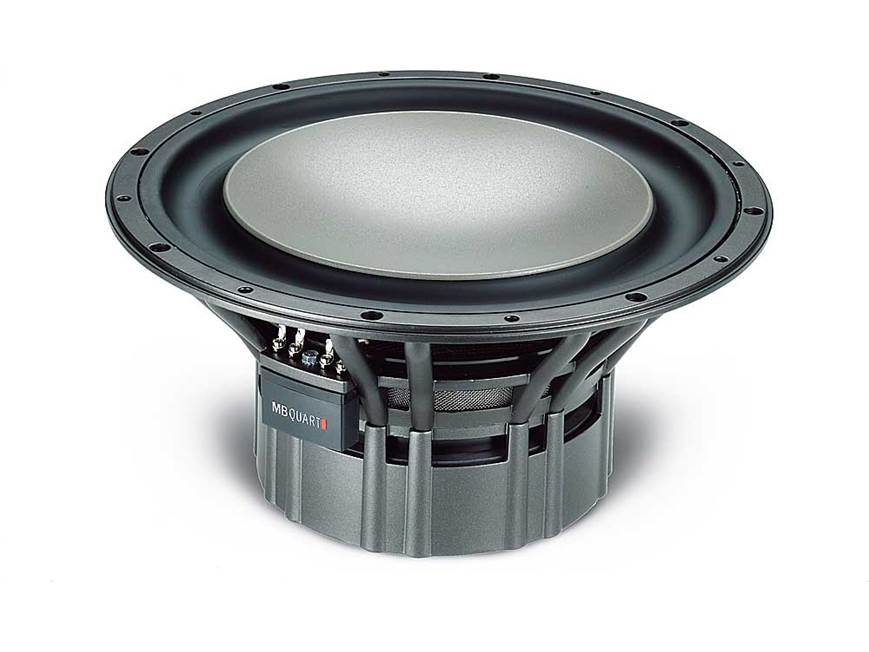

MB Quart PWE 304 12" subwoofer with dual 4-ohm voice coils

Name: MB Quart PWE 304
Brand: MB Quart
SKU: 049PWE304
Rating: 4.5 (6 reviews)

Item # 049PWE304

The PWE 304 12" subwoofer offers the exceptional performance you'd expect from an MB Quart Premium Series speaker.

Front

1/4

Back

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Cone

The PWE 304 12" subwoofer offers the exceptional performance you'd expect from an MB Quart Premium Series speaker.

Item # 049PWE304

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Shop all MB Quart Component Subwoofers

by Crutchfield's Ken Nail

The PWE 304 12" subwoofer offers the exceptional performance you'd expect from an MB Quart Premium Series speaker. Its sturdy cast alloy frame suppresses resonances that can distort your bass. And a special-design dustcap strengthens and stiffens the treated-paper cone, so it holds its shape when you crank the volume.

The durable Santoprene rubber surround attaches to the bottom of the cone for enhanced excursion and a clean look. And you can wire up this 12" speaker as either an 8-ohm or 2-ohm sub, so you'll have plenty of options when building your system. MB Quart has created a subwoofer that handles plenty of power and produces deep, clean bass.

Product highlights:

12" subwoofer with two 4-ohm voice coils
treated paper cone with polypropylene dustcap and inverted Santoprene surround
cast alloy basket
power handling: 600 RMS watts (300 watts per voice coil)
frequency range: 18-300 Hz
sensitivity: 90 dB
mounting depth: 6-1/4"
sealed box volume: 1.0 cu. ft.
Recommended Q-Logic Box Type: 1
warranty: 3 years
MFR # PWE 304
Item # 049PWE304

What's in the box:

MB Quart PWE 304 owner's manual

12" Dual-voice coil subwoofer
Plastic cover ring
3 Terminal jumpers (2 short/1 long)
4 Terminal set screws
2mm Allen wrench
"MB Quart Premium" badge
Self-adhesive foam gasket (in 4 pieces)
Installation Manual

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	12-inch
Impedance (Ohms)	---
Cone Material	TreatedPaper/Poly dustcap
Surround Material	Santoprene
Basket Material	---
Grille	Not included
Free-Air	No
Dual Voice Coil	Yes
Sensitivity	90 dB at 1 watt
Frequency Response	18 - 300 Hz
Max RMS Power Handling	600
Peak Power Handling (Watts)	---
Top Mount Depth (inches)	6 1/4
Bottom Mount Depth (inches)	---
Cutout Diameter or Length (inches)	11 1/16
Frame Width	12.4375
Frame Length	12.4375
Vas (liters)	28.4
Fs (Hz)	34
Qts	0.54
Xmax (millimeters)	---
Parts Warranty	3 Years
Labor Warranty	3 Years
Box Requirements
Ideal Sealed Box Volume (cubic feet)	1
Minimum Sealed Box Volume (cubic feet)	1
Maximum Sealed Box Volume (cubic feet)	1
Ideal Ported Box Volume (cubic feet)	N/A
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	N/A
Port length (inches)	N/A

Product Research

Features
Specifications

Features

Woofer Construction: This MB Quart Premium Series woofer is equipped with a treated paper diaphragm with an inverted parabolic polypropylene dust cap and a Santoprene synthetic rubber, inverted roll surround.

Basket: The PWE 304's motor structure is supported by a high-strength, non-resonant cast alloy basket.

Kapton Voice Coil Former: Kapton is a highly temperature-resistant, completely non-magnetic plastic foil. Because it has no affect on the magnetic field, the woofer provides more precise, distortion-free music reproduction.

Speaker Terminals: This dual-voice-coil subwoofer has a unique speaker terminal which can accept up to 10-gauge wire. The one-piece terminal block holds the speaker wire in place using set screws (2mm Allen wrench supplied). A plastic cover protects the terminal strip from unwanted contact.

Wiring: The woofer can be connected in the following ways:

Standard: You can connect the woofer to two separate amplifier channels, and each channel will see a 4-ohm load. Connections are made to the woofer's +1, +2, -1, and -2 terminals.
Parallel: You can connect the woofer to a single amplifier channel which will see a 2-ohm load. Connections are made to the woofer's +1, and -2 terminals. Two supplied short terminal jumpers are attached to the terminal block to link together the two positive terminals and the two negative terminals.
Series: You can connect the woofer to a single amplifier channel which will see an 8-ohm load. Connections are made to the woofer's +1, and -2 terminals. The supplied long terminal jumper is attached to the terminal block to link together the +2 and -1 terminals.

Logo Badge: The self-adhesive MB Quart Premium Logo badge can be mounted on the top of the screw cover ring in either direction.

Specifications

Enclosure Recommendation: MB Quart recommends a sealed enclosure with an internal volume of 1.0 cu.ft. for this woofer.

Mounting Recommendations: The PWE 304 can only be top-mounted into the enclosure. The supplied self-adhesive rubber gasket should be placed on the woofer to ensure a tight seal. No mounting hardware is included, however, MB Quart recommends M5 hex-head screws and lock nuts. After installation, the supplied screw cover ring can be fitted to the woofer's outer ring for a custom look.

Miscellaneous Specs:

Power Handling: 600 watts RMS (300 watts per voice coil)
Mounting Height: 0.224" without cover ring, 0.522" with ring installed
