About the MB Quart RA1-710.5
Product highlights:
- 5-channel car amplifier
- 50 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms
- 100 watts RMS x 4 + 250 watts RMS x 1 at 2 ohms
- 100 watts RMS x 4 at 2 ohms + 350 watts RMS x 1 at 1 ohm
- channels 1-4:
- variable high-pass filters (50-250 Hz, 12 dB/octave)
- subwoofer channel:
- variable low-pass filter (50-250 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- switchable subsonic filter (Off/25 Hz, 12 dB/octave)
- wired remote bass level control included
More Info:
- preamp and speaker-level inputs
- speaker wire-to-RCA adapters required for speaker-level input
- DC offset-sensing turn-on with speaker-level input
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80A fuse recommended
- dimensions: 14-7/16"W x 2-1/4"H x 5-7/8"D
- warranty: 1 year
- MFR # RA1-710.5
- Item # 049RA17105
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart RA1-710.5 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 5-channel amplifier
- Wired remote control
- 16' Remote cable (RJ-45 connector on both ends)
- 4mm Hex key
- 2mm Hex key
- Four 5/8" screws
- MB Quart logo badge (taped to the top)
- Quickstart guide
More details on the MB Quart RA1-710.5
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
50 x 4 150 x 1 | |
| Peak Power Output (Watts x Channels) | N/A | |
| Power at 2 Ohms (Watts x Channels) | 100 x 4 | |
| Power at 1 Ohm (Watts x Channels) | 350 x 1 | |
| Bridged Power (Watts x Channels) | N/A | |
| Minimum Impedance Bridged | --- | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 10-35k Hz | |
| THD at Rated RMS Power | 0.07% | |
| Signal to Noise Ratio | 101 dB | |
| Input Voltage | 14.4v | |
| Features | ||
| Amplifier Class | AB/D | |
| Built-in DSP | No | |
| Remote Control | Yes | |
| Low-Pass Crossover Frequency | 50-250 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 50-250 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | 0-12 dB | |
| Bass Boost Frequency | 45 Hz | |
| Fan Cooled | No | |
| Fuse Rating | 80 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | No | |
| Width (inches) | 14-7/16 | |
| Height (inches) | 2-1/4 | |
| Depth (inches) | 5-7/8 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features

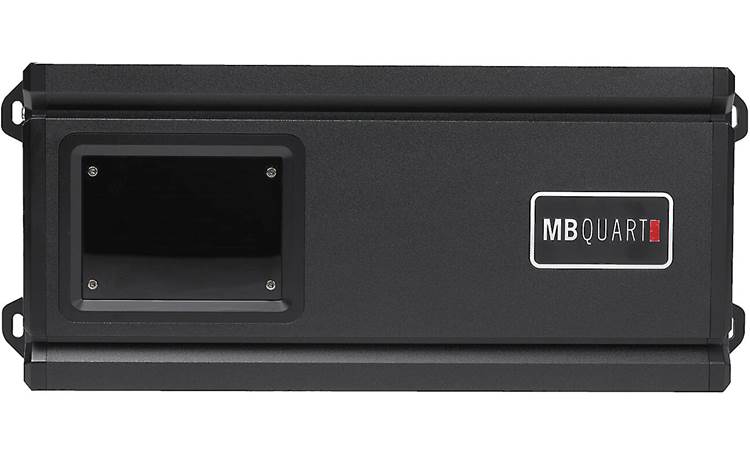

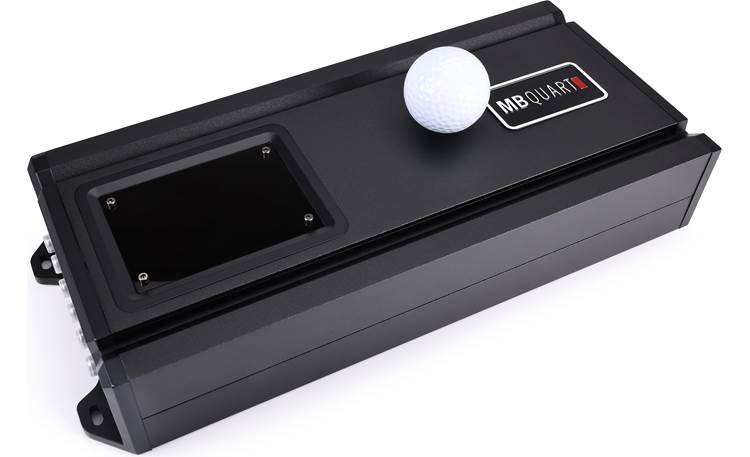

Overview: The RA1-710.5 5-channel amplifier is effectively two full range 2-channel amps (labeled channels 1/2 and 3/4) and a subwoofer amp (labeled channel 5) built into one chassis.
Power Output:
- Full Range Channels:
- 4Ω: 50 watts x 4
- 2Ω: 100 watts x 4
- Subwoofer Channel:
- 4Ω: 150 watts x 1
- 2Ω: 150 watts x 1
- 1Ω: 350 watts x 1 (only the subwoofer channel is 1Ω stable)
Control Panel: The control panel is protected by a cover to prevent unwanted adjustments. The cover screws are removed with the included 2mm Allen wrench. The rotary controls and recessed slide switches require the use of a narrow flat blade screwdriver (not included) to make adjustments. Each section of the amplifier has independent gain and crossover controls.
- Input Mode: 3-position switch; 2-channel (all five output channels fed using just the channel 1/2 inputs), 4-channel (discrete inputs for channels 1/2 and 3/4, subwoofer channel fed by the sum of those four), 5-channel (discrete inputs used for all five output channels)
- Turn-on Mode: 2-position switch; Remote (turns on when triggered by +12 volts DC on remote terminal), DC Sense (turns on/off with the presence of a speaker level input)
- Gain: three rotary controls; variable from 200mV to 9V
- Crossover:
- Full Range Channels:
- X-Over: 2-position switches; high-pass or full-range
- Frequency: rotary controls; variable 50-250 Hz
- Subwoofer Channel:
- Frequency: rotary control; variable 50-250 Hz
- Subsonic Filter: 2-position switch; 25 Hz or off
- Full Range Channels:
- Bass EQ: rotary control; subwoofer channel only; variable 0 to +12 dB
Connections:
- Audio Inputs: three pair of stereo RCA jacks; accept pre-amp level or speaker-level input
Note: If connecting the amp with speaker-level input signals, a speaker wire to RCA adapter will be required (sold separately).
- Speaker Outputs: five pair of set-screw terminals; accept up to 12-gauge speaker wire
- Power/Ground: set-screw terminals; accept up to 4-gauge wire; MB Quart recommends 4-gauge power and ground wire, and using an 80-amp in-line fuse (there is no fuse on the amplifier chassis)
- Remote Turn-on: set-screw terminal; accepts up to 12-gauge wire
- Remote Level Control: RJ-45 socket; connect to the included wired remote level control (adjusts subwoofer channel only)
Wired Remote: A remote level control is included that allows you to adjust the output level of the subwoofer amp from the driver's seat. A 16' remote cable is included.
Remote Dimensions:
- Width: 1⅝" (2½" mounting flange)
- Height: 1"
- Depth: 2¼" (2¾" including knob and cable)
