Display, Remote, & Installation Features
Variety Of Sources
Audio Section

Display, Remote & Installation Features

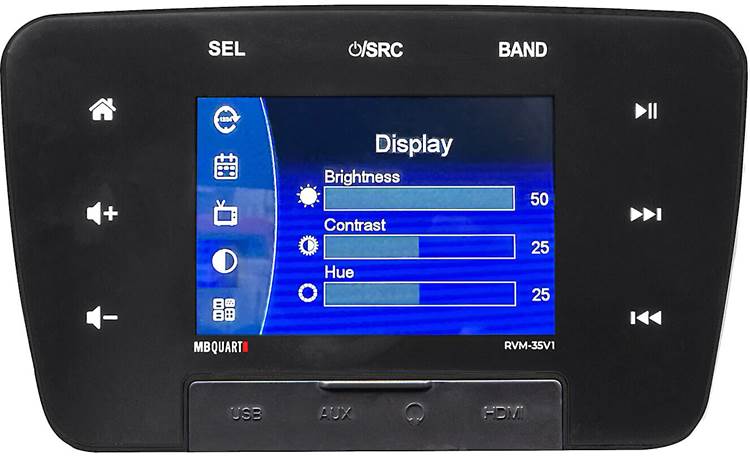

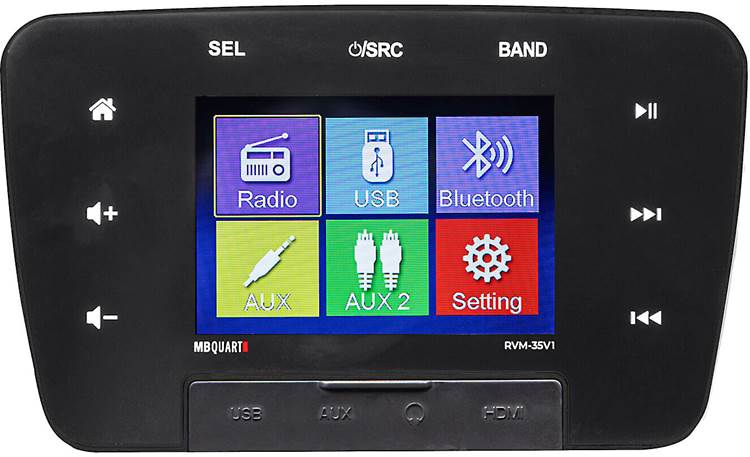

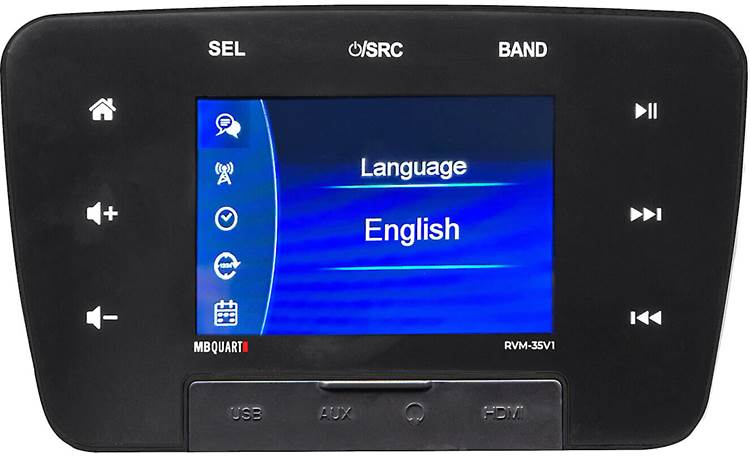

High-Contrast Display: The MB Quart RVM-35V1 features a high contrast display that allows easy viewing and control. Regardless of full sun or shade, the display is clearly visible. The front-panel LCD will display source and menu selections, as well as song/artist/album information (no album art) from USB and Bluetooth devices. The LCD screen offers four dimmer settings - High, Medium, Low, and Off.

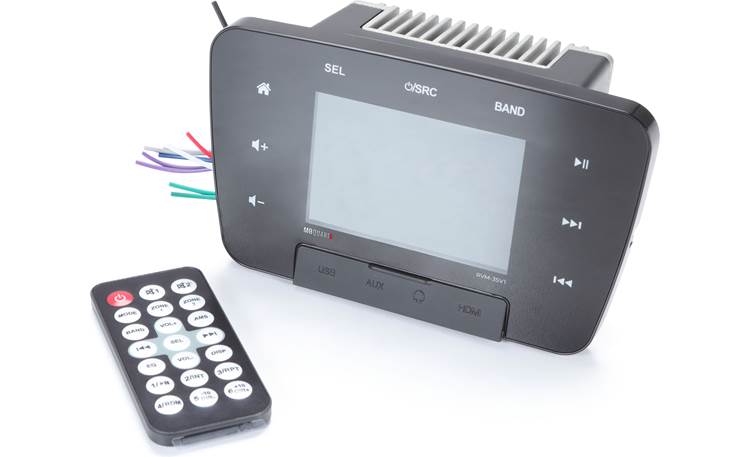

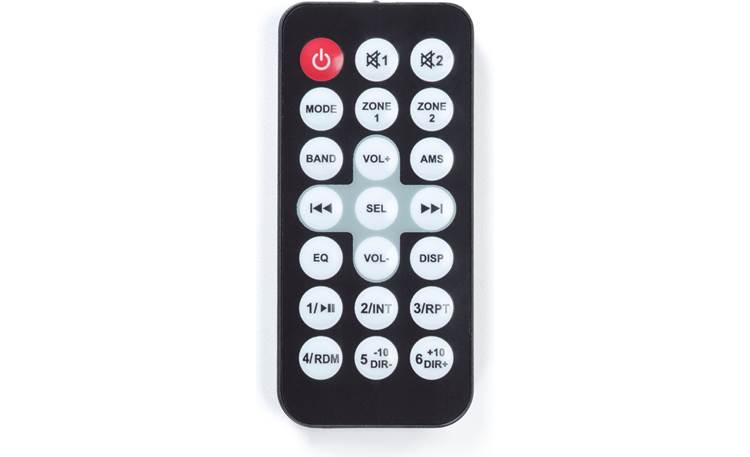

Remote Control: The included 21-button IR remote control provide full wireless operation for the MB Quart RVM-35V1 digital media receiver.

Mounting Options: The MB Quart RVM-35V1 requires a rectangular cutout in your RV's dash or other mounting surface, and secures to the dash or other mounting surface using the supplied metal bracket and two screws.

• Cutout Dimensions: 3.965" (w) x 3.335" (h) x 3.0"
• Front-Panel Dimensions: 5.985" (w) x 3.585" (h) x 0.425" (d)
• Screw-Hole Spacing: 4.75"

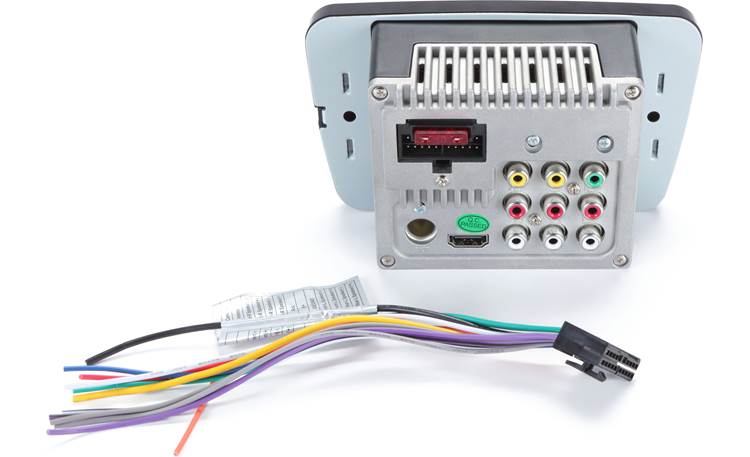

Wiring: The included wiring harness will need to be hardwired to power, ground, and speakers.

Variety Of Sources

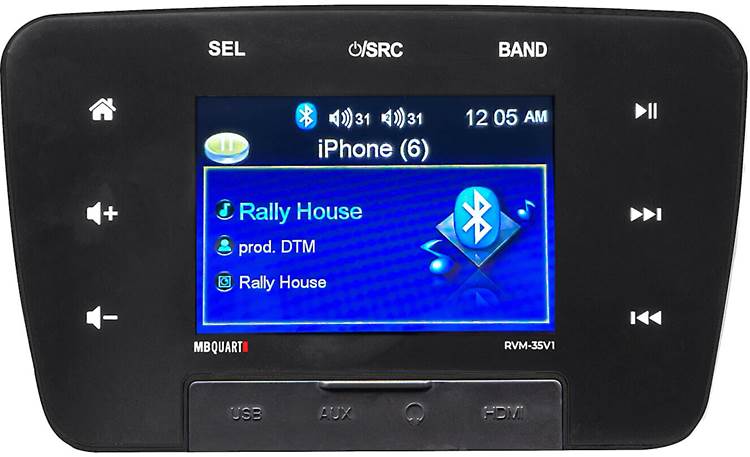

Bluetooth Audio Streaming: The MB Quart RVM-35V1 features built-in Bluetooth 4.0 with support for wireless audio playback (AD2P) and control (AVRCP). You'll be able to wirelessly stream stored music, music apps, and other audio content on your Bluetooth device to the RVM-35V1receiver. You can operate basic playback functions, such as Play/Pause & Skip Next/Previous, from the unit's front-panel controls (advanced music control will still need be done from your Bluetooth-enabled source device). The unit will also display song/artist/album information (no album art) of your Bluetooth streaming music. The unit offers quick and easy wireless connection to your Bluetooth enabled device thanks to Simple Secure Pairing (SSP). When the unit powers up, it immediately connects to the last device connected. The unit has a Bluetooth wirelessly range of approximately 32'.

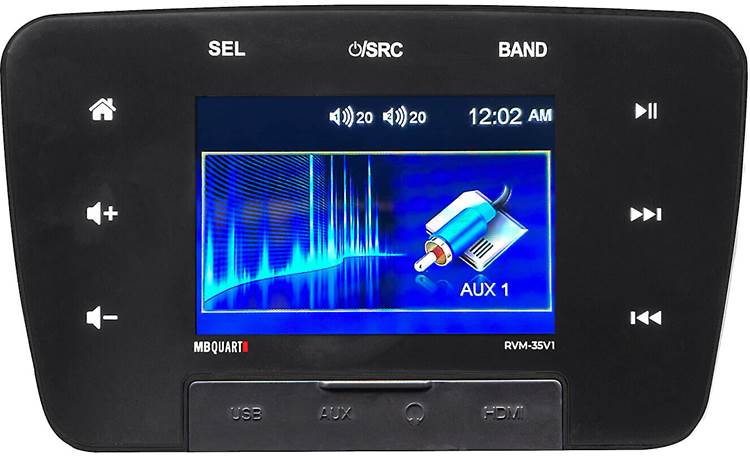

Dual Aux Inputs: The RVM-35V1 features a front and rear mounted Aux input. The front-panel Aux input consists of a stereo minijack for temporary connection of a portable audio source device. The rear-panel Aux input consists of stereo RCA Jacks for permanent connection of an external 12-volt audio source.

HDMI In/Out Pass-Through: The RVM-35V1 is outfitted with a front-panel HDMI input and a rear-panel HDMI output for connection of an external audio/video source and display monitor. You are able to connect an external AV source to the front-panel HDMI input and transmit the audio signal through the RVM-35V1 and your connected speakers, while the video signal is transmitted through the RVM-35V1's HDMI out to a connected display monitor. The unit supports up to 1080p HDMI video pass-through (4K not supported).

USB-A Port: The MB Quart RVM-35V1 is equipped with a front-panel USB-A port that allows you to connect a USB MSC (mass storage class) device, like a USB thumbdrive. The unit supports audio playback & control of MP3 and WMA audio files stored on a compatible USB thumbdrive or other MSC device. It will also playback MPEG video and JPEG photo files that are stored on a connected USB thumbdrive through an external video monitor (sold separately) and the RVM-35V1's composite video out. The unit offers File List, Play/Pause and Previous/Next Track control functions. This unit will also display song/artist/album information (no album art). In addition, the unit will charge a connected USB device (up to 0.5A).

Composite Video Out & Camera In: The MB Quart RVM-35V1 features a composite video camera input with reverse trigger wire that allows connection of a backup camera (sold separately). The unit will automatically switch over to the camera input when your vehicle is put in reverse gear. The backup camera image is displayed on an external video monitor (sold separately) connected to the digital media receiver's composite video output. The composite video output, along with an external monitor (sold separately), can also be used to display MPEG video and JPEG photo files stored on a connected USB thumbdrive that is plugged into the unit's front-panel USB port.

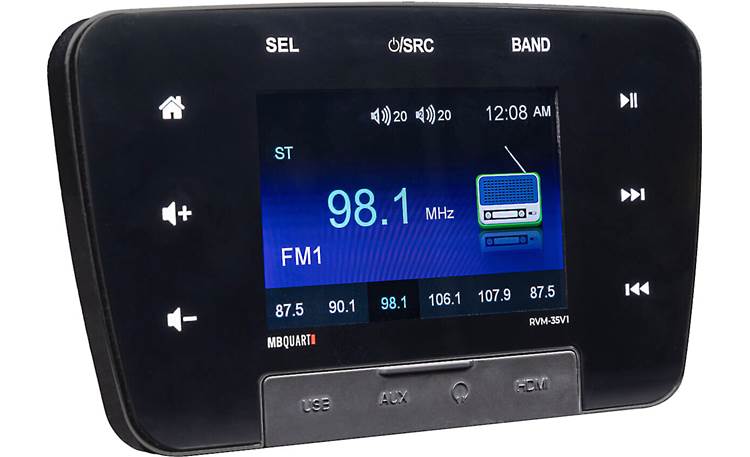

AM/FM Radio: The MB Quart RVM-35V1 digital media receiver features an AM/FM radio that utilizes a PLL Synthesized crystal for strong reception. The built-in AM/FM radio offers manual, seek, and preset tuning. You can store up to 18 FM and 12 AM presets for a total of 30 AM/FM radio station presets. There are no physical preset buttons on the front-panel of the receiver. To access your presets, you will need to navigate the digital media receiver's menu.

Audio Section

20W x 4ch Amplifier: The MB Quart RVM-35V1 is equipped with a built-in 20 watt (RMS) / 40 watt (Peak) x 4 channel amplifier that can drive up to two pairs of 4-ohm loudspeakers (one pair of speakers in Zone 1 and another pair of speakers in Zone 2).

4Ch/2V Pre-Outs: The RVM-35V1 digital media receiver is also outfitted with 4-channels of 2-volt preamp outputs (Zone 1 and Zone 2) for connection of external power amplifiers and speakers in separate zones.

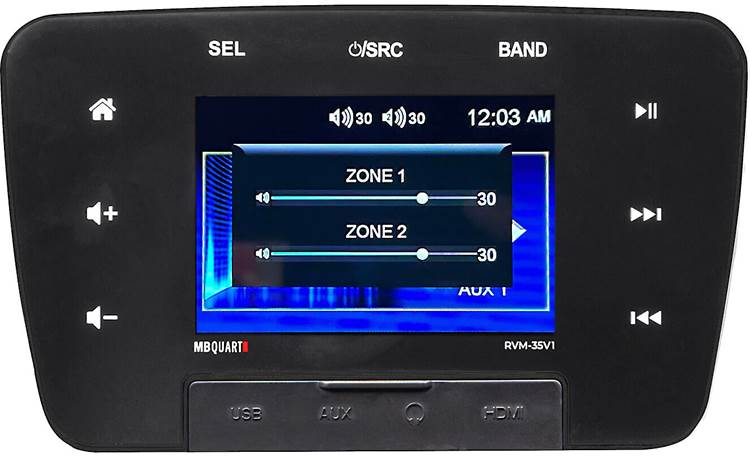

Dual Zone: The RVM-35V1 offers dual zone control with independent volume level of each zone. The same source will be played back in each zone. You can turn a zone completely off.

EQ: You can choose between six EQ Preset modes - Classical, Rock, Pop, Beat, Jazz, & Off. The Off mode allows you to manually adjust the receiver's Bass (100Hz) & Treble (10kHz) from -10dB to +10dB.

Loudness: There is also a Loudness function that enhances low and high frequencies at lower volume levels, making them easier to hear.

Program Volume: This function allows you to set the volume level at which the unit powers up again depending on what the volume level was when the unit was last turned off.

Headphone Output: The MB Quart RVM-35V1 is equipped with a front-panel 3.5mm headphone output jack for private listening. When a set of headphones are plugged into the headphone jack, the unit's connected speakers are muted.

Beep Tone: Every time a button is pressed, the unit will output a beep tone (this can be turned off).
