About the Sanus CAPS12-B1

Product highlights:
- designed to be mounted vertically in a component rack system
- mounts on rear rack rails with included hardware
- 12U vertical rack size
- 8 protected AC outlets
- 2 outlets spaced further apart to fit larger transformer plugs
- EMI/RFI filters help reduce line noise
- 900-joule surge protection
- maximum current rating: 12 amps
- 10-ft. AC power cord
- 1-5/8"W x 18-7/16"H x 1-5/8"D
- warranty: 1 year
- MFR # CAPS12-B1
- Item # 051CAPS12
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Sanus CAPS12-B1 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Vertical power strip (attached 10' power cord)
- 2 L-brackets
- 2 Flat brackets
- 4 Pan-head screws
- 2 Counter-sunk screws
- Instruction Manual
More details on the Sanus CAPS12-B1

Features & specs
Type | --- | |
Total AC Outlets | --- | |
Total Current Capacity | --- | |
High-Current Outlets | --- | |
USB Connections | --- | |
Coaxial RF Jacks | No | |
Line Conditioning | --- | |
Joule Rating | --- | |
Powerline Network Compatible | --- | |
Connected Equipment Guarantee | --- | |
Width (inches) | --- | |
Height (inches) | --- | |
Depth (inches) | --- | |
Weight (pounds) | --- | |
Parts Warranty | --- | |
Labor Warranty | --- |
Product Research
Features

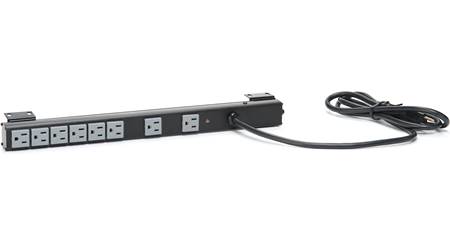

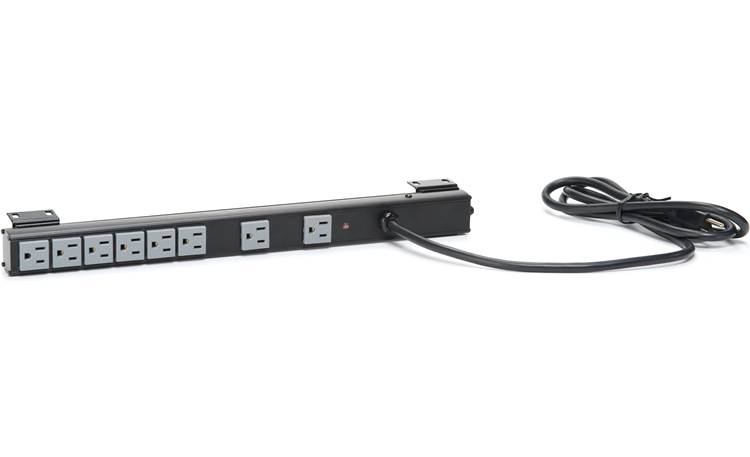

Vertical Power Strip with Surge Protection: The Sanus Component Series CAPS12 vertical power strip with surge protection features eight 3-prong outlets with two specifically spaced for transformers. A 10' power cord adds versatility, and the power strip easily mounts vertically on rear rack rails. All the hardware needed to mount the CAPS12 is included, making installation simple.
- Clamping Response Time: <1ns
- UL Eletrical Rating: 12A Max / 125Vac / 60Hz / 1500W
- Voltage Protection Rating: 500V (L-N), 500V (L-G), 500V (N-G)
- EMI/RFI Noise Filtration: 40dB (100kHz - 1MHz)
- Joule Rating: 900 Joules
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
No issues, helps keep everything neat and tidy. Lots of outlets. Only issue I have is that the outlets could be spaced a little further apart. Some cords I use have bulky ends and I have to use adapters or skip an outlet.
Alan from COMFREY, MN
