About the Sanus SA-PS80

Product highlights:
- eight protected AC outlets
- six outlets rotate 160° for easy access and organization
- remaining two outlets are fixed facing the outside
- onboard 2-in-1 power and circuit breaker switch lets you safely shut the surge protector off
- 2160-joule protection
- LED indicator shows whether ground wiring at the outlet is okay and that connected devices are being protected
- indicators will no longer light up when protection circuit has been exhausted
- built-in EMI/RFI noise filtering reduces sound-muddying noise that can detract from your A/V system's performance
- slim overall profile
- built-in cable management hooks and channels
- attached 8-foot power cable plugs into any standard AC outlet
- two rear keyhole slots for easy wall mounting
- dimensions (measured by Crutchfield): 2-1/16"W x 2-3/16"H x 13-9/16"D
- $25,000 connected equipment guarantee
- warranty: 5 years
- MFR # SA-PS80-B1
- Item # 051SAPS80
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Power strip surge protector with attached 8' power cord
- Instruction Manual
More details on the Sanus SA-PS80

Features & specs
Type | Strip | |
Total AC Outlets | 8 | |
Total Current Capacity | 15 | |
High-Current Outlets | None | |
USB Connections | None | |
Coaxial RF Jacks | No | |
Line Conditioning | Yes | |
Joule Rating | 2160 | |
Powerline Network Compatible | No | |
Connected Equipment Guarantee | $25,000/5 Years | |
Width (inches) | 2-1/16 | |
Height (inches) | 2-3/16 | |
Depth (inches) | 13-9/16 | |
Weight (pounds) | --- | |
Parts Warranty | 5 Years | |
Labor Warranty | 5 Years |
Product Research
Features
6 Rotating Outlets & 2 Fixed Outlets: The Sanus SA-PS80 power strip surge protector powers and protects up to 8 electronic devices at once. There are a total of 8 outlets - 6 pivoting outlets and 2 fixed outlets. The 6 pivoting outlets with 160 degrees of rotation allow you to fit larger and right-angle plugs without blocking other outlets.
Surge Protection: The Sanus SA-PS80 keeps your electronic devices safe from devastating power surges caused by lightning or power outages. Its advanced internal components, including X3 Fire-proof MOV (Metal Oxide Varistor) technology, provide up to 2160 joules of surge protection with a maximum spike current rating of 144,000A or 6 KV (6000 volts). The device can attenuate an electrical spike up to 40dB, and has a Clamping Voltage (or Voltage Protection Rating) of L-N 300V, L-G 400V, N-G 400V. When the Surge Protector is operating properly and prevents an energy surge from damaging electrical equipment, the surge protective component will disconnect from the circuit, and the product will need to be replaced.
- 2-in-1 Power & Circuit Breaker Switch: The unit features a 2-in-1 Power and Circuit Breaker switch, which allows you to turn all of the outlets on or off with a switch.
- LED Indicator Lights: The Sanus SA-PS80 features LED lights that indicate that your connected electronic devices are grounded and protected. When the "Protected" LED indicator no longer lights up, the surge protection of the SA-PS80 has been exhausted and its time to replace the unit.
Note: Only the AC power line of your connected devices are protected by the SA-PS80. Etherent, Phone, RF-Coaxial, and other cables of your connected devices are not protected.
EMI/RFI Filtering: In addition to protecting your devices from power surges and lightning strikes, the SA-PS80 filters out EMI (electromagnetic interference) and RFI (radio frequency interference). EMI and RFI can adversely affect the performance of your electronic devices, including your A/V equipment. The surge protector filters unwanted EMI/RFI noise between 150 kHz and 100 MHz by 48dB.
Cord Management: The SA-PS80 features built-in cable hooks to help with cord management, so your connected devices' AC power cords stay organized and neat looking.
Attached Power Cord: The Sanus SA-PS80 power strip surge protector features an attached 8' power cord (IEC 3-prong) which should be plugged into a standard 120V 60Hz AC outlet rated at a maximum of 15A.
Note: Surge protectors should never be daisy-chained to one another or used with an extension cord.

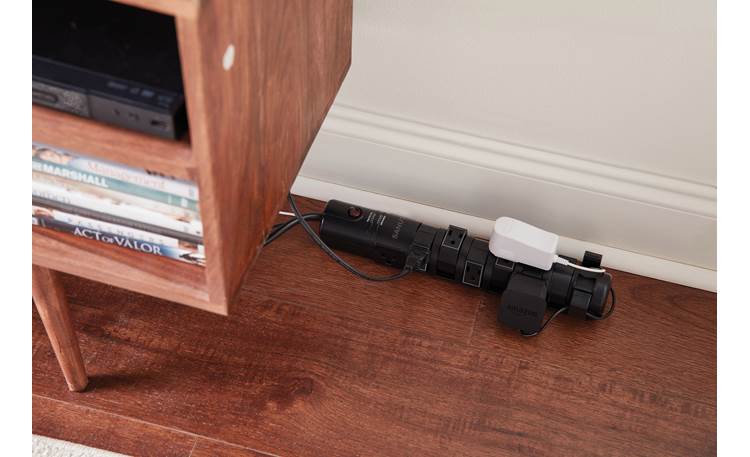

Mounting Options: The power strip surge protector can be simply placed on the floor or tabletop. Its slim design fits nicely behind furniture or under your desk. The unit can also be wall-mounted using the integrated keyhole slots on the back of unit (mounting screws not included).
Connected Equipment Damage Limited Warranty: The Sanus Surge Protector features a 5-year, $25,000 Connected Equipment Damage limited warranty. If a properly-connected piece of equipment is damaged by an energy surge, Legrand (Sanus' parent company) will, at its discretion, provide you with a replacement, pay for repair, or pay the fair market value of the connected equipment, up to $25,000. For full details of the Connected Equipment Damage warranty, please refer to the included Instruction Manual.
Specifications:
- Surge Protection (Joule Rating): 2160 joules
- Max Spike Protection: 144,000A or 6KV
- Outlet Electrical Rating: 120V AC, 15A, 1800W
- Clamping Voltage (Voltage Protection Rating):
- L-N 330V
- L-G 400V
- N-G 400V
- EMI/RFI Noise Filtering: 48dB at 150kHz - 100MHz
- Attenuation: Up to 48dB
- Dimensions: 2.0625" (w) x 2.1875" (h) x 13.5625" (d)
- Cord Length: 8'
