About the Sanus VLF628
Full-motion mount
Full-motion mount

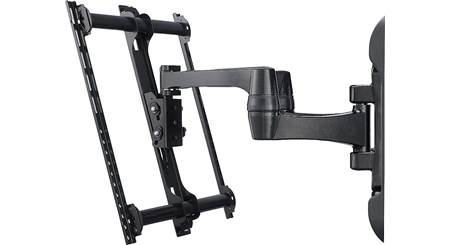

Sanus' ultra-thin VisionMount® holds your flat-panel TV only 3-1/4" from the wall when fully retracted. Just pull on the mount and it smoothly extends outward up to 28".
Decorative cover for finished appearance
The mount's decorative cover conceals the assembly and hardware, giving it a finished appearance that complements your TV. An integrated cable management system keeps wires organized and out of sight without interfering with the motion of the extending arm.
Ideal for larger TVs
This durable heavy-gauge steel mount supports a TV with a screen size up to 90" and weighing up to 150 lbs. The mount's brackets can easily be shifted to the right or left, in case the wall studs are a little off-center. And you can make fine adjustments after installation to keep your TV leveled.
Will this mount work with my TV?
Use the Sanus MountFinder™ to see a list of mounts that work with your specific TV.
Where do I drill the holes?
Tell the Sanus HeightFinder™ Installation Assistant how high you want your TV, and it tells you exactly where to drill.
Product highlights:
- fits most flat-panel TVs with screen sizes from 46"-90"
- heavy-gauge steel construction with powder-coated finish
- supports up to 150 lbs.
- mount can extend TV up to 28" from wall
- decorative cover conceals mounting hardware for finished appearance
- stud-mounting required
- post-install leveling adjustments
- includes all necessary hardware
- swivels from left to right
- tilt range: up to -15°
- 33-7/8"W x 20-7/16"H x 3-1/4"-28"D
- weight: 58 lbs.
- warranty: 10 years
- MFR # VLF628
What's in the box:
- Arm Assembly
- TV bracket
- Wall-plate
- 2 Wall-plate covers
- Four M6x12mm bolts
- Four M6x35mm bolts
- Four M8x16mm bolts
- Four M8x20mm bolts
- Four M8x25mm bolts
- Four M8x35mm bolts
- Four M8x45mm bolts
- Four M8x50mm bolts
- Four 22mm spacers
- Four 2.5mm spacers
- Four 5mm spacers
- Two 1/4"-20 screws
- 10-32 Screw
- Four 5/16"x3-1/2" lag-bolts
- 2 Square washers
- Four Round washers
- 4 Concrete-anchors
- 8 Wire-ties
- Hex-key
- Wall-Mount Template
- Instruction Manual
Reviews (46)
Customer reviews for Sanus VLF628
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Sanus VLF628
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
Full-Motion Design: The Sanus Premium Series VLF628 full-motion, wall-mount bracket provides a 3-points of movement for an optimal viewing position. The VLF628 extends from the wall (3.25"-28"), tilts up/down (+4°/-15°), and swivels left or right (+/-90°) for easy viewing anywhere in the room.
TV Capacity: The Sanus Premium Series VLF628 wall-mount bracket is designed to support flat-panel TVs from 46" to 90", weighing up to 150 lbs.
Bolt Pattern: The VLFVLF628 full-motion, wall-mount bracket accommodates a horizontal hole spacing on back of the TV of 100mm-600mm and a vertical hole spacing of 100mm-400mm. The Sanus VLFVLF628 comes with M6 and M8 size bolts of differing lengths to mount the bracket to your TV.
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Construction: The bracket is constructed of heavy-gauge steel and high-impact plastic with a durable powder-coated black finish.
Wall-Plate: The wall plate must be mounted to wall studs or anchored to a solid concrete or concrete block wall using the supplied lag bolts (and wall-anchors). The slots in the wall plate can accommodate wall studs 16" on-center (not compatible with 24" on-center). Wall-plate covers are included to cover the mounting holes for a clean, neat installation.
Installation Tools: The following tools are recommended for installing the VLF628:
- Tape measure
- Stud finder
- Level
- Drill
- 7/32 Drill bit (for wood stud)
- 3/8" Drill bit (for masonry)
- 1/2" Socket wrench
- Screw driver
- Hammer
- Pencil
The Sanus VLF628 replaces these items
- full-motion bracket for flat-panel TVs weighing up to 125 lbs.
- extends up to 25" away from wall
- swivel range: +5° to -15°; roll adjustment: +3° to -3°
- full-motion bracket for flat-panel TVs from 42"-90" and up to 175 lbs.
- in-arm wire channel conceals cables without inhibiting movement
- swivel range: +75° to -75°; tilt range: +5° to -15°
- full-motion bracket for flat-panel TVs from 37"-65" and up to 135 lbs.
- extends up to 28" away from wall
- swivel range: +85° to -85°; tilt range: +5° to -15°
- full-motion bracket for flat-panel TVs from 37"-65" and up to 130 lbs.
- in-arm wire channel conceals cables without inhibiting movement
- swivel range: +75° to -75°; tilt range: +5° to -15°
