About the Sanus VLT7 Advanced Tilt 4D™
Position your large TV for optimal viewing
Position your large TV for optimal viewing
The Sanus VLT7 wall mount uses a new design that makes it easy to tilt your mounted TV up, down, left, or right. You get a vertical tilt range of +7° to -13° and 15° side to side. Built-in extenders provide up to 6-13/16" clearance behind your TV, giving you room to tilt even a larger screen. This mount can also hold your TV as close as 2-1/8" to the wall.

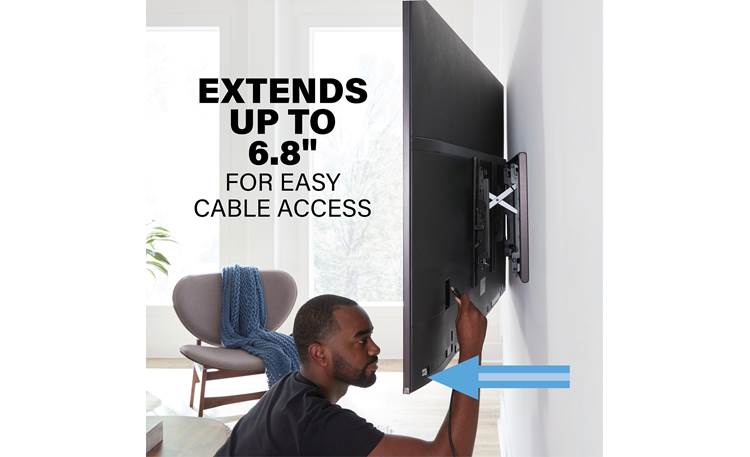

Extra room for making connections
The extenders also help with installation. Rather than having to remove your mounted TV to connect new gear, just tilt it up or to the side. There's plenty of room to reach back behind your set and connect those cables.
A safe design for mounting
Once you've secured the open wall plate to the wall and attached the brackets to your TV, the whole assembly just slides into position. A safety lock closes with an audible click to let you know it's securely in place.
Post-installation adjustments help you get your screen positioned just right. The TV assembly can be shifted slightly left or right on the wall plate. So even if your wall studs are off-center, your TV doesn't have to be. And you can level your set after installation or make slight adjustments to screen height.
Will this mount work with my TV?
Use the Sanus MountFinder™ to see a list of mounts that work with your specific TV.
Where do I drill the holes?
Tell the Sanus HeightFinder™ Installation Assistant how high you want your TV, and it tells you exactly where to drill.
Product highlights:
- designed for TVs 42"-90"
- supports up to 150 lbs.
- fits VESA mounting hole patterns from 150 x 140mm to 600 x 400mm
- Tilt 4D design allows easy tilt adjustments up, down, left, or right
- scissor mechanism provides smooth in, out, and swivel motion
- vertical tilt range: +7° to -13°
- swivel range: ±15°
- stud-mounting required
- mounting hardware included
- 31-5/16"W x 16-5/8"H x 2-1/8"D (6-13/16"D fully extended)
- warranty: 10 years
- MFR # VLT7-B2
What's in the box:
Sanus VLT7 Advanced Tilt 4D™ owner's manual
- Wall-plate
- 2 TV brackets
- Four M6x12mm screws
- Four M6x20mm screws
- Four M6x35mm screws
- Four M8x16mm screws
- Four M8x20mm screws
- Four M8x30mm screws
- Four M8x40mm screws
- Four M8x50mm screws
- Four M6/M8 washers
- Four 2.5mm spacers
- Four 5mm spacers
- Four 22mm spacers
- Four 5/16" x 2-3/4" lag-bolts
- 4 Concrete anchors
- Hex-key
- Instruction Manual
- Wall Plate Template
Reviews (34)
Customer reviews for Sanus VLT7 Advanced Tilt 4D™
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Sanus VLT7 Advanced Tilt 4D™
Features & specs
| Features | ||
|---|---|---|
| Mount Type | --- | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | Yes | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Sanus VLT7 advanced tilt 4D premium wall-mount bracket supports 42" to 90" flat-panel TVs that weigh up to 150 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 150x140mm to 600x400mm
- Screw Size: M6 or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Steel Construction: The Sanus VLT7 bracket is constructed of heavy-gauge steel with a durable powder-coated black finish.
Full-Motion Design: The Sanus VLT7 features a full-motion design that accommodates a variety of TV viewing positions. The VLT7 offers extension, tilt, andswivel adjustments.
- Extension: The VLT7 can position your TV as close as 2.125" from the wall or extend your TV 6.8125" out from the wall.
- Tilt: The tilt mechanism makes it easy to angle your TV up to 13° forward or 7° backward for the best viewpoint.
- Swivel: The wall-mount bracket allows you to swivel your TV up to 15° in either direction. Depending on the size of your TV, the swivel range may be reduced.
Dual-Stud Installation: The Sanus VLT7 advanced tilt 4D premium TV wall-mount bracket can accommodate 16" or 24" stud spacing, and comes with all the hardware you need for wood stud and concrete installation. Its open wall-plate design allows for mounting directly over electrical outlets or media boxes. Tools required for installation include -
- Drill
- 7/32" bit (wood), 1/2" bit (masonry)
- 1/2" Socket wrench
- Awl
- Hammer
- Stud finder
- Level
- Pencil
- Tape Measure
Post Installation Adjustments: Post-installation height, lateral, and leveling adjustments allow your TV to be perfectly positioned after hanging. Once installed, your TV may not appear completely level or centered with its surroundings. Your are able to make small lateral, height, and level adjustment after mounting to ensure perfect positioning.
Optional Padlock: The ability to padlock (sold separately) your TV to the mount for additional safety or security means the Sanus VLT7 can be used in private or public settings without worry.

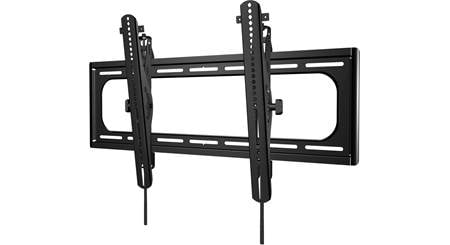

The Sanus VLT7 Advanced Tilt 4D™ replaces these items
- tilt bracket for flat-panel TVs weighing up to 150 lbs.
- easy one-finger tilt adjustment
- vertical tilt range: +7° to -12°
