Features

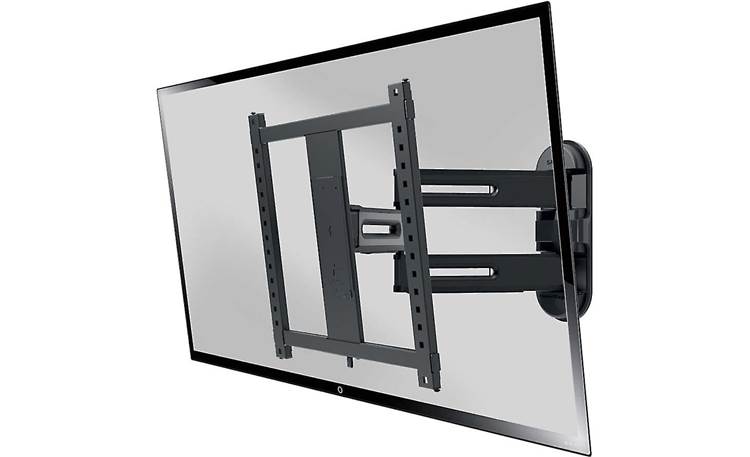

TV Compatibility: The Sanus VMF822 full-motion wall-mount bracket supports 32" to 65" flat-panel TVs that weigh up to 70 lbs. The TV must also meet the following VESA and screw size requirements.

• VESA Sizes: 200mm x 100mm to 400mm x 400mm
• Screw Size: M6 or M8

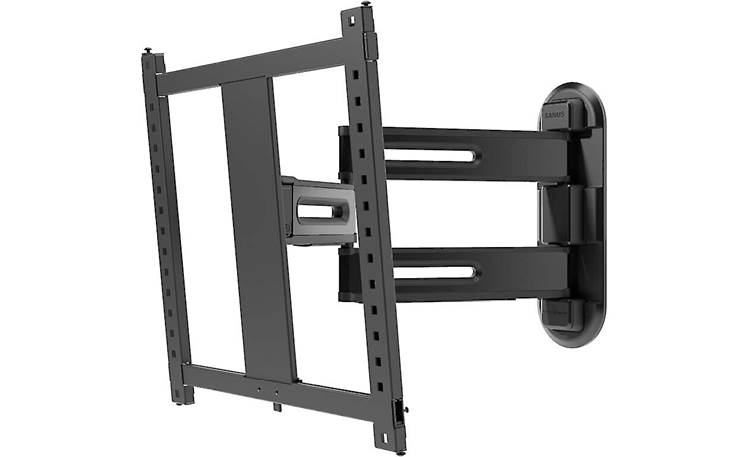

Solid Steel Frame: The Sanus VMF822 features an ultra-strong, solid steel frame that provides maximum support to ensure your wall-mounted flat-panel TV stays securely in place. Once properly installed your wall-mounted flat-panel TV will stay exactly where you want it with no drifting or unwanted movement.

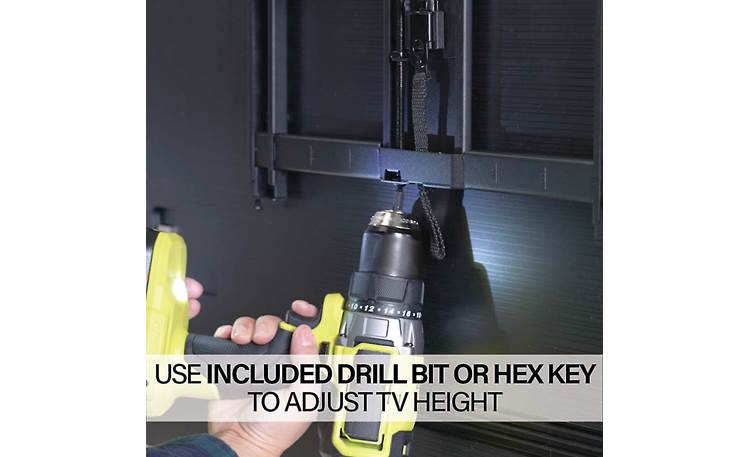

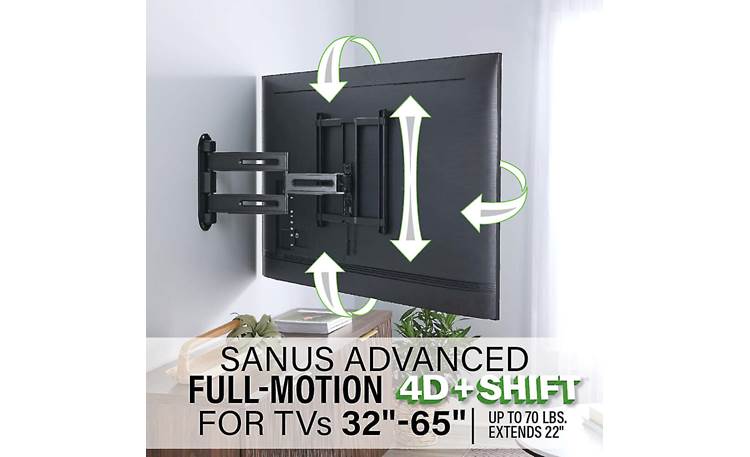

Full-Motion Design: Thanks to its full-motion design, the Sanus VMF822 wall-mount bracket lets you enjoy a great picture on your TV no matter where you watch it. You'll be able to tilt, swivel, extend, level, and make height adjustments to your wall-mounted TV without the need for tools.

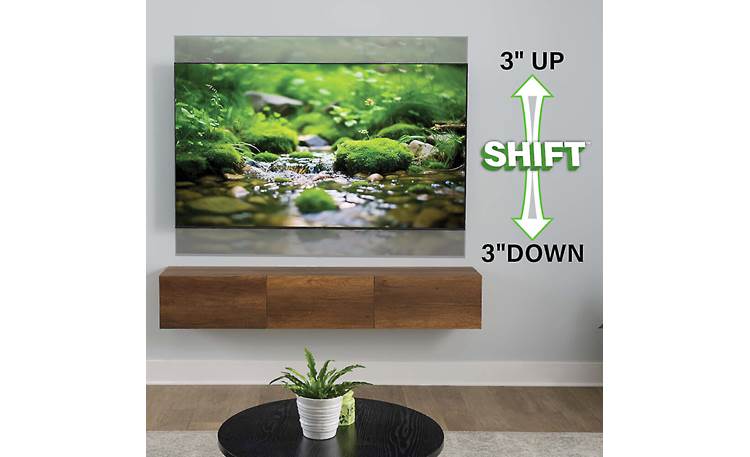

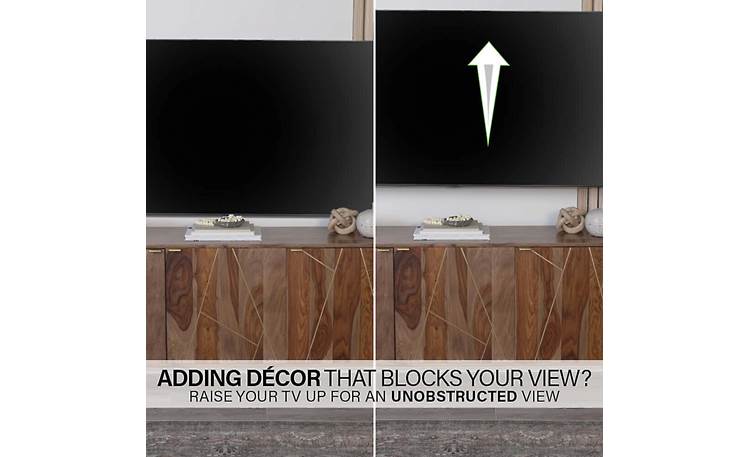

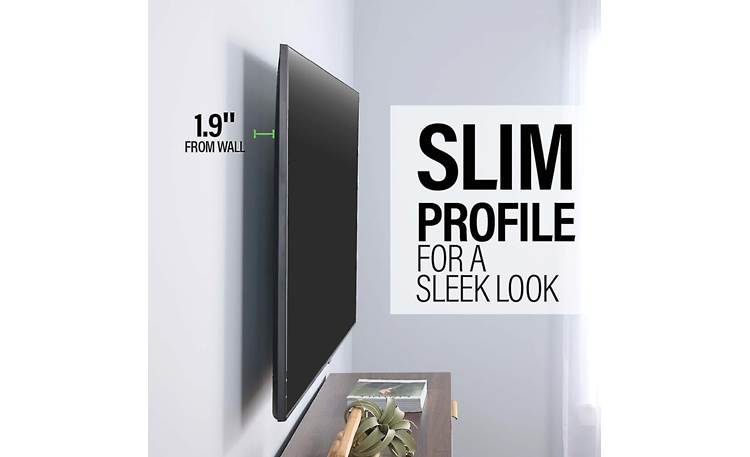

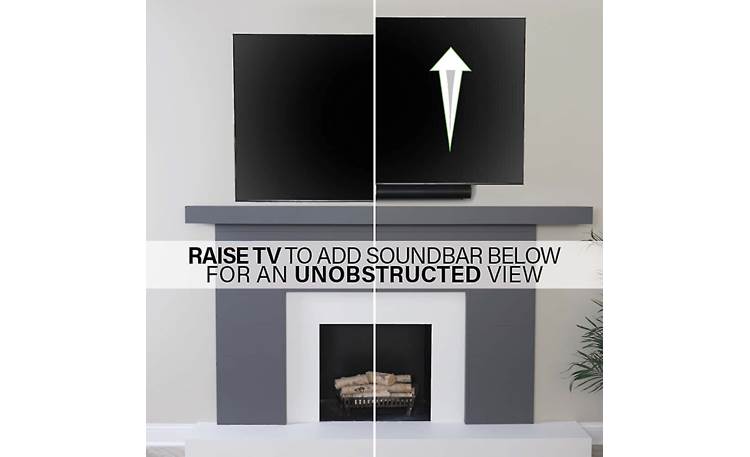

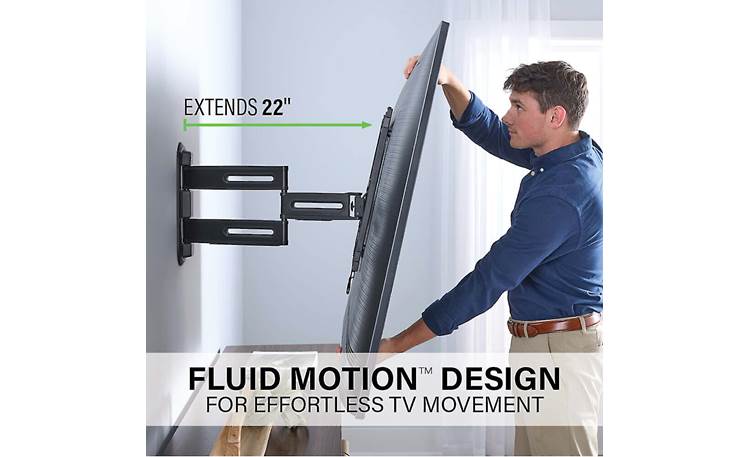

• Extend & Height Adjustment: The VMF822 lets you extend your TV 1.9375" to 22.3125" from the wall to give you greater flexibility with your TV's viewing angle and to provide easier access to the TV's rear-panel connections. You can also enjoy up to 6" of up or down movement for precision TV positioning on the wall, making this mount an ideal solution for when mounting a TV above a fireplace mantle, above a TV console, or even when you have to position around a pre-existing outlet on the wall. The height adjustment also allows you to raise your TV at a later time to provide enough space to add in a soundbar.

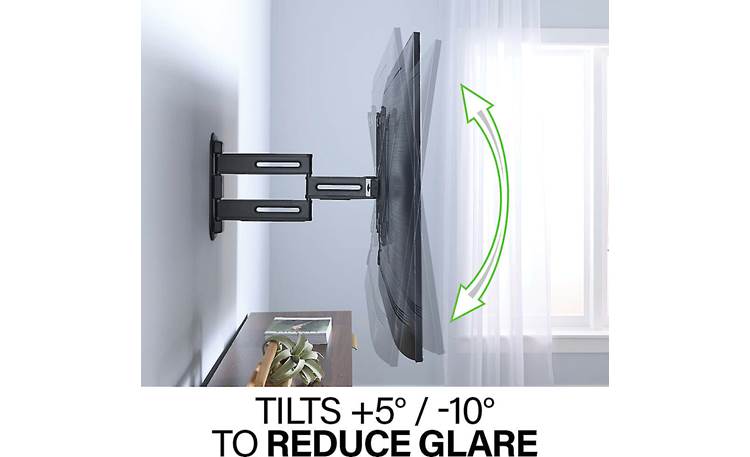

• Tilt & Swivel Mechanism: If your TV has to be mounted low below a structure or high above a mantle or fireplace, you can tilt it 5° up or 10° down for the perfect viewing angle. The maximum tilt range will depend on size of TV. You are also able to swivel your mounted TV to left 59° or to the right 59°, so you can have the perfect view of the screen no matter where you sit in the room. The maximum swivel range will depend on size of TV.

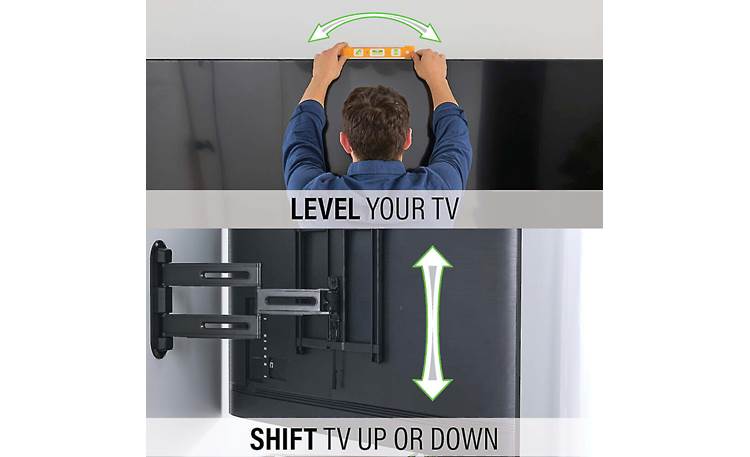

• Roll & Leveling: You can also raise and lower the sides of the TV from -2° to +2° to make sure the TV is level once it is mounted on the wall.

Single-Stud Installation: The wall bracket can be mounted to a single wooden wall stud or anchored to a solid concrete or concrete block wall using the supplied lag bolts (and wall-anchors). Plastic snap-on covers are included to hide the mounting holes for a clean, neat installation.

• Drywall & Wood Stud Notes: Wood studs should measure at least 2" x 4" (nominal) or 1.5" x 3.5" (actual). Drywall covering thickness should not exceed 5/8".
• Concrete Block Wall Notes: Minimum concrete block size of 8" x 8" x 16" is required. Minimum solid concrete thickness of 8" is a requirement.

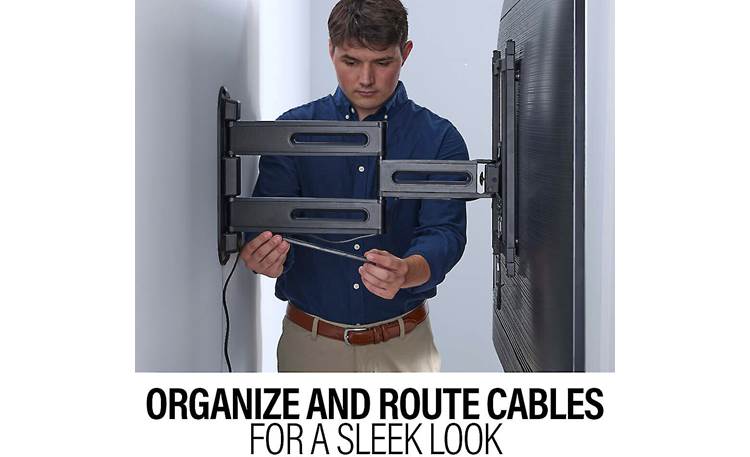

Cable Management: An in-arm cable management channel protects and conceals cables the length of the arm for a clean appearance, while a decorative cover conceals assembly and mounting hardware of the wall-plate for a finished appearance.

Installation Tools: The following tools are recommended for installing the VMF822 wall-mount TV bracket -

• Tape measure
• Tape
• Stud finder
• Level
• Drill
• Drill bit (1/8" bit for wood or 3/8" bit for masonry)
• 1/2" Socket wrench
• Awl
• Screw driver
• Hammer
• Pencil

UL Certification: The Sanus VMF822 wall-mount TV bracket has been Safety Tested and UL Certified.
