Sanus WSTV1 Swivel TV base for TVs 32"-65"

Item # 051WSTV1

Upgrade your TV's stock pedestal with the Sanus WSTV1 swivel base, and you'll have a lot more flexibility to...

Upgrade your TV's stock pedestal with the Sanus WSTV1 swivel base, and you'll have a lot more flexibility to...

9 questions - 28 answers

Item # 051WSTV1

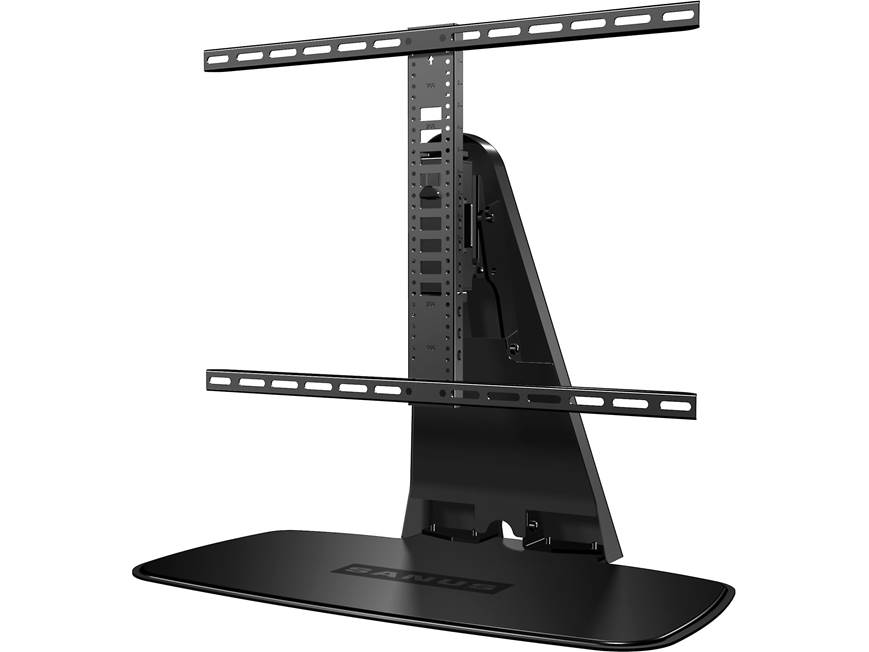

About the Sanus WSTV1

Ralph Graves

A more versatile base for your TV

Upgrade your TV's stock pedestal with the Sanus WSTV1 swivel base, and you'll have a lot more flexibility to position your screen how you like it. You can swivel your TV 20° in either direction and even make minor tilt and roll adjustments for an optimal view.

A more versatile base for your TV

Upgrade your TV's stock pedestal with the Sanus WSTV1 swivel base, and you'll have a lot more flexibility to position your screen how you like it. You can swivel your TV 20° in either direction and even make minor tilt and roll adjustments for an optimal view.

Works with Sonos Playbar

This tabletop stand was designed to work with the Sonos Playbar. Mount your TV, and it will appear to hover over your Sonos sound bar of choice. The WSTV1 practically disappears behind your TV and speaker.

Keep cables tucked away in the hollow pillar for a clean, uncluttered appearance. This stand can support a TV with a screen size between 32"-65" and weighing up to 60 lbs.


Product highlights:

  • for TVs 32"-65"
  • works with Sonos Playbar
  • weight capacity: 60 lbs.
  • bracket width: 23-5/8"
  • swivel range: ±20°
  • roll: ±3°
  • can tilt up 5°
  • accommodates VESA mounting hole patterns from 100 x 100 to 600 x 400
  • hollow pillar for concealing cables
  • base footprint: 27"W x 16-7/16"D
  • pillar height: 29"
  • weight: 30 lbs.
  • safety tested and UL® approved
  • warranty: 10 years
  • MFR # WSTV1-B1

What's in the box:

  • Base
  • Neck
  • Vertical height adjustment bracket
  • 2 TV brackets
  • Swivel head
  • Four M4 x 12mm bolts
  • Four M4 x 35mm bolts
  • Four M6 x 12mm bolts
  • Four M6 x 20mm bolts
  • Four M6 x 35mm bolts
  • Four M8 x 16mm bolts
  • Four M8 x 20mm bolts
  • Four M8 x 25mm bolts
  • Four M8 x 35mm bolts
  • Four M8 x 45mm bolts
  • Four M8 x 50mm bolts
  • Four M4 washers
  • Four M6/M8 washers
  • Four 2.5mm spacers
  • Four 22mm spacers
  • Four 1/4"-20 nuts
  • Four 10-32 x 3/8" screws
  • Four 1/4"-20 x 3/8" screws
  • Wrench
  • Instruction Manual

Customer reviews for Sanus WSTV1

Loading reviews...

Average review:

5.0 out of 5 stars
71 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Sanus WSTV1

Stacey B.

Product Research


TV Compatibility: The Sanus WSTV1 fits most 32" to 65" flat-panel televisions with a weight up to 60 lbs.

Mounting Pattern: The Sanus WSTV1 mounts to the four threaded inserts on the back of your television. The stand will accommodate a horizontal hole spacing of 100mm to 600mm, and a vertical hole spacing of 100mm to 400mm. It comes with M4, M6, & M8 hardware to attach your TV to the stand.

Swivel & Tilt Design: The Sanus WSTV1 lets you swivel your TV up to 20° left and right without the need for tools. You can also tilt your television upward by 5°.

Adjustable Height: Your TV's height can be adjusted up to 8" to accommodate soundbars, sound bases, and other components below the television.

Stable Base: The Sanus WSTV1 provides a stable footprint which is perfect for furniture with shallow depth. The base measures 27" wide x 16.4375" deep.

Cable Management: The Sanus WSTV1 features a cable management system to concealed your unsightly cables, cords, and wires.

Loading accessories...

Customer Q&A

9 questions already asked

Weight capacity days 60lbs. Can it handle 82lbs if I've got a 20lbs center channel on the base?
itsfakebelieve  Mar 04, 2023
1 answer
Greetings John, and thank you for your question. If the TV is 62 pounds, and your bar is just sitting on the pedestal not mounted to the stand with an extension using the same screws as the TV itself. I think it would be fine. If you would like to check with Sanus (recommended), their number is 800-359-5520.
hogan  Mar 04, 2023 (Staff)
will it work with a Vizio 32 inch?
john  May 01, 2021
6 answers
todd  May 21, 2021
I would only recommend this stand if you have a sonos playbase to sit on it. The tv i have put on it is larger than 27". You need to amke sure you have the right VESA alignment.
trevor  May 02, 2021
The screw holes on the back of a TV are supposed to be standardized. I don't know the Vizio but look for information on VESA (?) standard bracket mounting. As the picture shows, the piece that attaches to the TV is a sideways H shape. The screws can be attached at several points, and the bottom crossbar can be moved. We like our Sanus, it's solidly made and it was easy to attach to our Samsung.
thomas m.  May 02, 2021
It says this stand works for tvs from 32" to 65" so it should work.
andrew  May 02, 2021
As long as your Visio TV has a VESA mounting bracket. on the back ..... Check your TV manual to see if the bolt holes are VESA standard mount holes. You will need help mounting the TV. The GREAT thing about this TV stand is the broad base for stability. The 2nd best part of this TV stand is the vertical adjustment .... which is about 10 inches so that you can mount speakers UNDER the TV on the base which helps to counterbalance large TVs up to 65 inches. After mounting the TV, lower the brackets to assist in better balance and if you have children, mount a strap from the all to TV or stand to prevent harm.
douglas  May 02, 2021
mark  May 01, 2021
would it work for a 70" TV?
sergio  Mar 02, 2021
2 answers
Believe the literature recommends a 65" limit. The weight limit is 60 lbs. Great stand for my 65". Very pleased.
francis  Mar 02, 2021
Yes. I have this size TV and the stand works just fine. If you plan on using a sound bar place the center bracket down low on the TV so the TV is held high enough off the stand base to fit the soundbar.
russell  Mar 02, 2021
will this fit a oled65cxpua tv?
erin  Feb 23, 2021
3 answers
It fit my 55" oled perfectly, I see no reason a 65" wouldnt fit.
james  Feb 24, 2021
Yes, it should work up 65". I know it worked great on my 55" Sony.
todd  Feb 23, 2021
I believe that it should. I think 65 is the max.
jeffrey l  Feb 23, 2021
What is the height variance between the highest and lowest setting? What is the maximum clearance under the TV?
nicholas  May 28, 2019
2 answers
Hi the highest I setup is 6" to put my Sonos Playbar under the TV
ernesto  Jun 05, 2019
About 8" from bottom of our Sony Bravia 49" to stand's weighted base. Visit the SONOS site for more in-depth stats. Crutchfield has best price! We love ours!
michelle  Jun 05, 2019
Is this compatible with Sonos Beam?
nicholas  May 07, 2019
2 answers
Yes. I placed the center bar of the stand low on the TV so that the TV is sufficiently raised off the stand base to allow the sonos beam
russell  Mar 02, 2021
The Sanus WSTV1 was designed to accommodate the Sonos Playbase, width ~ 28.5 inches, height ~ 2.25 inches, the Beam width is ~ 26 inches, height ~ 2.75 inches. The WSTV1 allows you to position your TV at different height levels, depending on the size of your TV you should be able to use the Beam with the WSTV1.
johnny  May 07, 2019
What are the dimensions of the base? I'm curious whether I can set the stand on top of my center speaker, without much if any hanging over.
chrish  Oct 06, 2018
5 answers
The base measures 27" x 14". It swivels from side to side and provides excellent support for my 60" tv. Highly recommend.
james  Oct 10, 2018
The base plate is 24 in. wide and 14 in. deep. We are pleased with quality, weight and stability of product. We have a 55 in. LG TV mounted on stand and a SONOS sound bar sitting on the stand base plate. The television rotates above sound bar.
john  Oct 09, 2018
27" wide, 16.45" Deep. it is large, in fact, that is one of my dislikes of this unit, the base is big. so unless you have a large center channel, I'd say no.
scott  Oct 09, 2018
27" width x 16-1/2" depth.
kathleen  Oct 09, 2018
I'm sorry I don't remember buying this.
steven  Oct 09, 2018
how does the playbar mount to the stand?
lisa  Sep 18, 2017
5 answers
Can't say. Did not use with my purchased sound base. Sorry
george  Sep 19, 2017
Have no idea. I simply placed my sound bar on top of the base.
thomas leslie  Sep 19, 2017
The playbar can rest on the base of the Sanus. There is no mounting hardware to attach the playbar or playbase. The television can then be positioned to sit above the playbar. Before I purchased the Sanus unit, the playbar sat in front of the television and blocked the sensor for TV remote control. Sanu provides an orderly set-up and solution.
david  Sep 19, 2017
It doesn't. The tv gets attached to the stand and then the playbar sits on the base below and in front of the tv. The benefit of using this stand is that the playbar will not block the lower part of the tv and the tv can swivel. It also does a nice job of hiding the cords.
karin  Sep 19, 2017
Playbar doesn't mount to the stand. It sits below it.
gerard  Sep 19, 2017
Will my 65" Sony XBR X65-900E fit, It weighs under 50 lbs.? Thank you.
gary  Jul 09, 2017
2 answers
I have the same tv and it works great and does hold the weight?
george  Sep 19, 2017
No problem.
norman  Jul 09, 2017
