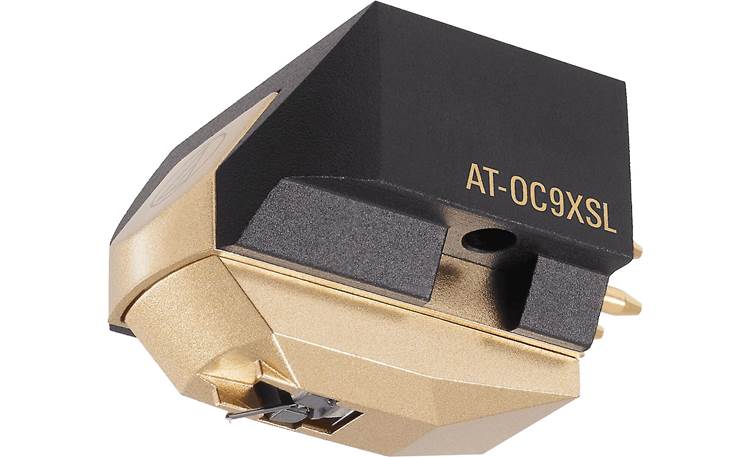

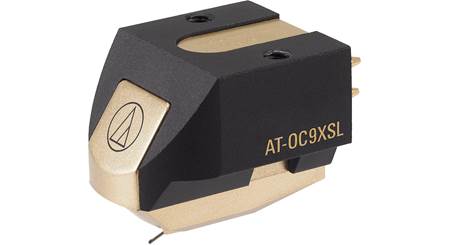

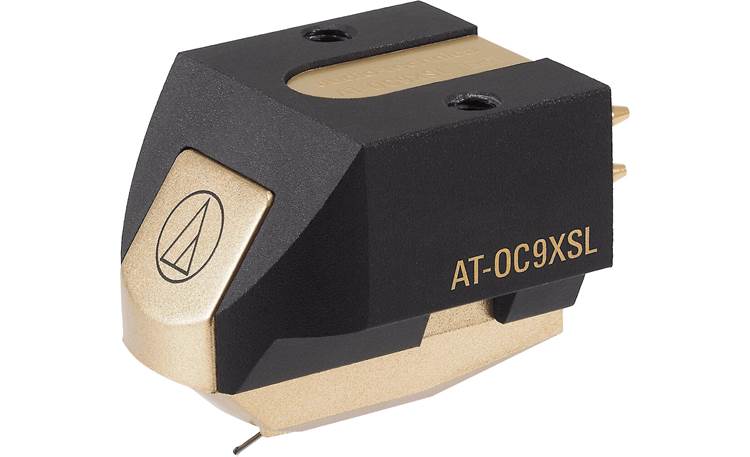

About the Audio-Technica AT-OC9XSL
Product highlights:
- low-output moving coil design
- neodymium magnet and permendur yoke dramatically enhance magnetic energy
- PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission
- coils aligned in reverse V-shaped formation reduce pressure on the stylus and minimize distortion
- low-resonance aluminum cartridge housing
- special line-contact stylus traces record grooves with extreme accuracy
- multilevel shape reduces wear on records
- boron cantilever
- pre-threaded for easy two-screw installation
- includes non-magnetic screwdriver, brush, and mounting screws
- frequency response 20-50,000 Hz
- output voltage: 0.4 mV
- stereo separation: 28 dB
- channel balance: 0.5 dB
- load impedance: 100 ohms
- 11/16"W x 11/16"H x 1-1/16"D
- cartridge weight: 7.6 grams
- warranty: 1 year
- MFR # ATOC9XSL
- Item # 057OC9XSL
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Low-output MC phono cartridge
- 4 Lead wires
- 2 Long screws
- 2 Medium screws
- 2 Short screws
- 2 Washers
- Brush
- Non-magnetic screwdriver
- User Manual
- Disposal Note
More details on the Audio-Technica AT-OC9XSL
Features & specs
| Type | MC | |
| Mounting | Standard | |
| Stylus shape | Rectangular | |
| Frequency response (Hz) | 20-50k | |
| Tracking grams | 2.0 | |
| Stereo separation (dB) | 28 | |
| Output voltage (mV) | 0.4 | |
| Load Impedance (Ohms) | 100 | |
| Load Capacitance (pF) | Not given | |
Product Research
Features
Dual Moving Coil Cartridge: The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws (no nuts required).
- Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
- The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
- The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws - no nuts required
- Features nude Special Line Contact stylus and boron cantilever with accurate tracking ability and high transient response
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Note: The AT-OC9XSL’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service the moving coil cartridge.
Specifications:
- Frequency Response: 20-50,000 Hz
- Channel Separation: 28 dB (1 kHz)
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude rectangular shank
- Recommended Load Impedance: 100 ohms
- Output: 0.4 mV (at 1 kHz, 5 cm/sec)
- Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: 1.5 x 0.28 mil
- Cantilever: 0.28 mm diameter nude boron
- Mount: 1/2"
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 mH (1 kHz)
- Static Compliance: 22 x 10-6 cm/dyne
- Dynamic Compliance: 18 x 10-6 cm/dyne (100 Hz)
- Vertical Tracking Angle: 20°
Dimensions: 0.6875" (w) x 0.6875" (h) x 1.0625" (d)
Weight: 7.6 g (0.3 oz)
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Supreme clarity, great stereo seperation. the stylus contact precise. Make sure that you align the cartridge with an alignment protractor. Its worth the investment. Get the most out your records with this product.
Gregory from CHANDLER, AZ
