Shaft-Style Radio
Variety of Sources
Audio Section

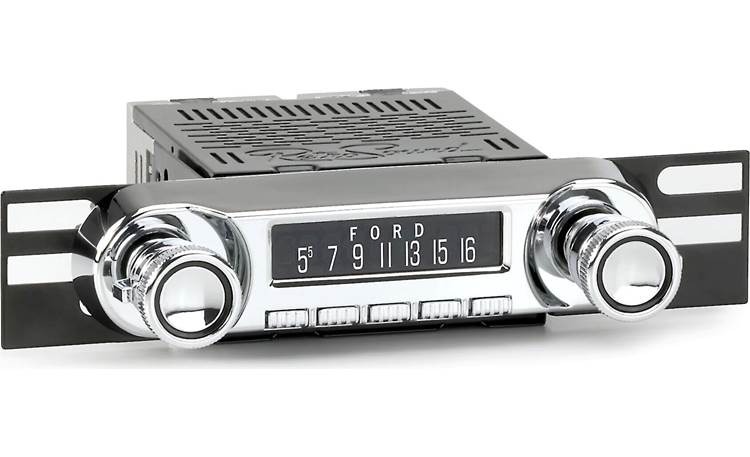

Shaft-Style Radio

Vehicle Compatibility: The RetroSound Huntington (M2B) radio is a direct-fit solution for 1966-1977 Ford Broncos and 1961-1966 Ford trucks. It can also be used in custom installation for other classic cars and hot rods.

Floating Faceplate + Infinimount Shaft/Bracket System: In addition to 1966-1977 Ford Broncos and 1961-1966 Ford trucks, the Retrosound Huntington's floating faceplate and Infinimount shaft/bracket system allows you to custom-mount the radio in a variety of other classic cars and hot rods too. This is because the faceplate and shaft-knobs are not mounted to the radio's chassis-body, but instead connect to the unit via harnesses so you only need to drill three small holes (one for the face-plate harness and two for the shaft knob harnesses).

• Faceplate: Unlike most shaft-style radios, the faceplate is separate from the chassis-body and only connects to the chassis-body via a proprietary 12-pin harness. The radio's chassis-body is mounted behind the dash with the supplied hardware, while the faceplate is mounted to the front of dash using the shaft-knob kit. An opening of 0.6875" is all you need to route the harness from the chassis-body to the faceplate. The faceplate measures 6.875" (w) x 1.815" (h) x 0.9375" (d).
• Adjustable Shaft Knobs: The shaft knobs are not affixed to the radio either, instead the connect to chassis via two harness. You can space the radio's shaft knobs at various distances (0.3125"-2.1875") from the chassis of the radio, using the supplied side-mount brackets. You can move these brackets forward or backward and move them in any direction. You can even cut, trim, or bend the brackets if needed.

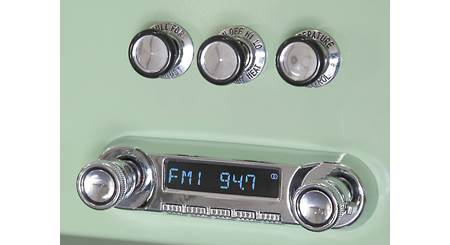

Variable-Color LCD: The RetroSound Huntington (M2B) features variable color illumination display with over 32,000 of color variations. Choose from a selection of preset colors, have the unit scan through all preset color continuously, or customize your own color to better match your vehicle's interior lights. You can also adjust the brightness of the display to High or Low.

Variety of Sources

Built-in Bluetooth: The RetroSound Huntington (M2B) is equipped with built-in Bluetooth (HFP/A2DP/AVRCP) allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your Bluetooth-enabled smartphone to the head unit. Before using your Bluetooth enabled device, it must be paired to the Huntington (M2B). You can only pair one device at a time with this unit. Once paired, when your Bluetooth device is in close proximity to the RetroSound receiver, the auto connection function automatically connects the two units. The Huntington (M2B) is compatible with most Bluetooth enabled mobile phones, including the Apple iPhone, Blackberry, and Android smartphones.

• Hands-Free Communication: The Huntington (M2B) allows for wireless communication between the head unit and your Bluetooth enabled cell-phone. You can answer an incoming call from the head unit's front-panel control knobs. Incoming phone call information will be displayed on the unit's front-panel LCD and your music will be pause or muted. You will still use your phone to dial a phone number and then the call will transfer to the RetroSound radio. Use the included external microphone to speak into during your phone conversation, while the other party will be heard through your vehicle's speakers.
• Wireless Audio Streaming: The Huntington (M2B) also allows you to play back stored music and  music apps from your Bluetooth-enabled phone or personal music player using a paired Bluetooth connection. Playback controls included Play/Pause, Stop, & Next/Previous Track. This unit does not display song/artist information from Bluetooth audio devices.

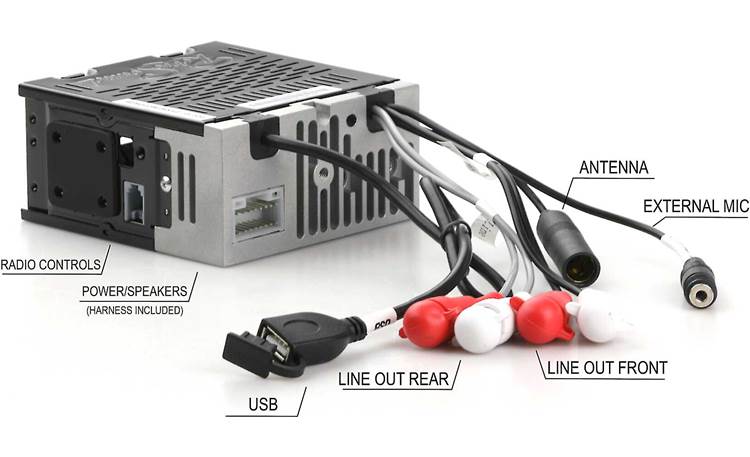

USB Port: The RetroSound Huntington (M2B) features a USB (type-A) port connected to its rear chassis by a 20" pigtail. The USB port enables connection of a  portable USB mass-storage class (MSC) device; such as a USB thumbdrive. Once you've connected your compatible USB device, the Huntington (M2B) will find your songs instantly and automatically start playing them. This unit supports MP3 (128 kbps +), WMA (64 kbps +), and FLAC music files in format FAT and FAT32. The unit can recognize a maximum of 999 songs/files (files will be read in order of creation and not alphabetically or numerically).

• Controls: You will be able to control basic playback functions of your music files such as Play, Pause, Skip Track, Intro Scan, Repeat Track, and Random.
• Display: The Huntington (M2B) also supports ID3-tags/WMA-tags for song/artist information.
• Charging: USB portable audio players that can be charged via USB will be charged when plugged into the receiver's USB port (max. 2.1A), and the vehicle's ignition switch is set to ACC or On.

iPod Direct: The rear-panel USB port can act as an iPod/iPhone high-speed direct connection. The RetroSound Huntington (M2B) supports audio playback of stored music or music apps, music navigation, information display, and charging of select iPod/iPhone models.

• iPod Control: You can control your connected iPod/iPhone from the head unit's front-panel control knobs. You can browse your iPod/iPhone's music by Playlist, Artist, Album, Song, Genre, Composer, or Podcast.  In addition, you can activate Repeat playback modes (all/track). Most iPod/iPhone device's clickwheel or touchscreen will be locked during connection (Apple devices w/ iOS 6.0+ will stay unlocked).
• iPod Display: The Huntington (M2B) will display your iPod/iPhone's music file information from stored music. The head unit will display Track number, Elapsed playing time, Artist name and Song/Album title.
• iPod Charging: The unit's USB connection provides 2.1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position. This unit does not charge the iPad. If your iPod/iPhone has no initial battery charge, then the unit will not recognize it.

iPod/iPhone Compatibility: The Huntington (M2B) supports select iPod and iPhone models (not compatible with iPad).

• Full Size: Classic (all generations)
• Nano: 3rd Generation and newer
• Touch: 2nd Generation and newer
• iPhone: 3G and newer

RDS AM/FM Tuner: The Retrosound head unit features a built-in RDS AM/FM tuner. The unit's tuner features 3 FM bands and 2 AM bands. A total of 30 AM/FM presets can be stored manually or automatically. Select between Local and Distant settings can aid in listening to weak FM radio stations or compensate for stations that have too strong of a signal. This unit's tuner can be set to USA or European tuning.

Audio Section

25W x 4Ch MOSFET Amplifier: The Huntington (M2B) is equipped with a 25 watts x 4-channel (RMS)/45 watts x 4-channel (Peak) MOSFET amplifier.

6Ch/2.85V RCA Outputs: The in-dash receiver features front, rear and subwoofer 2.85-volt RCA outputs. The front and rear speaker RCA outputs are balance and fade adjustable. The subwoofer RCA output is non-fading.

Subwoofer Control: When the subwoofer RCA output is active, you can adjust the output level (0-12) of the sub output. You can also set the low-pass crossover to 80, 120, or 160Hz.

Equalizer: The Huntington (M2B) features the following preset EQ curves (Classic, Pop, Rock, or Off) to customize your music listening. The Off mode activates a 3-Band EQ which lets you adjust Bass, Midrange, & Treble manually from -7 to +7.

Balance & Fader Control: The Balance adjustment function allows you to adjust or pan the stereo sound from the left or right; this is helpful to compensate for the position of the driver in relation to the speaker locations. Adjustment range is 0 to 12. The Fader Control allows you to fade the sound from the front pair of speaker to your rear pair of speakers. Adjustment range is 0 to 12.

Turn-On Volume: You can set the Huntington (M2B) to power-on to the same volume level (0-46) every time, or let it default to the last volume when turned off.

Key Beep: When this function is enabled, every knob turn or button press will output a beep tone.
