About the RetroSound R-410N-SB01

Product highlights:

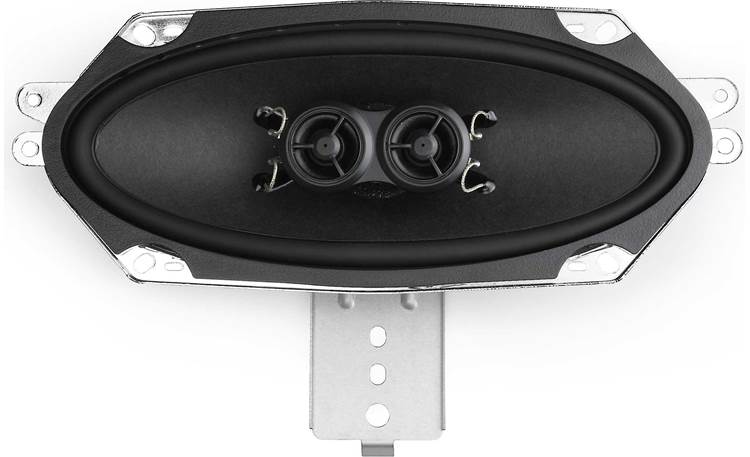

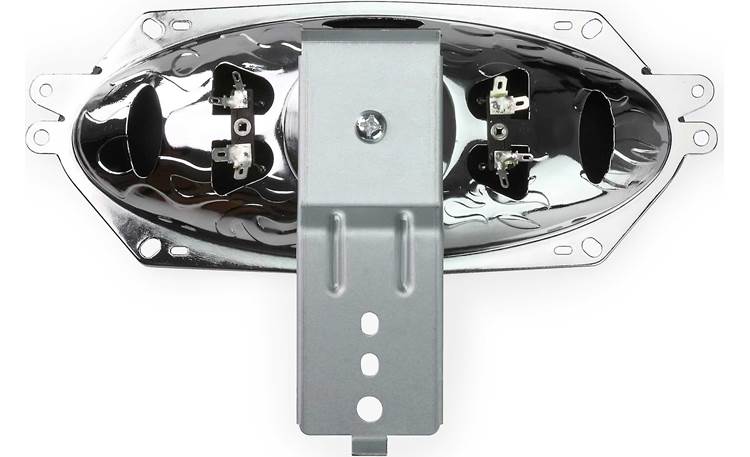

- single 4"x10" 2-way speaker with speaker mounting bracket
- pulp composite woofer cone with Santoprene surround
- dual voice coils for 2-channel operation
- dual silk dome tweeters
- handles up to 90 watts RMS (160 watts peak power)
- frequency response: 43-21,000 Hz
- sensitivity: 87 dB
- top-mount depth: 1-3/4"
- grille not included
- warranty: 1 year
- MFR # R-410N-SB01
- Item # 068R410NS1
What's in the box:
RetroSound R-410N-SB01 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 2-way 4x10 stereo input DVC speaker

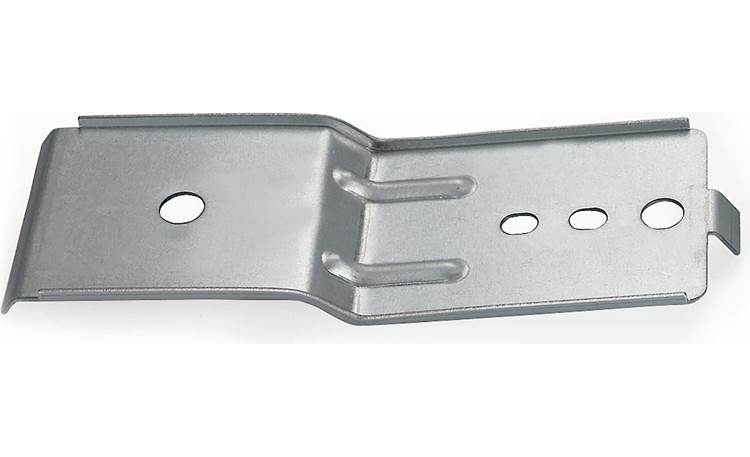

- RS-SB01 Mounting bracket
- Mounting hardware
- 12' Length of speaker wire
- Owner's manual
More details on the RetroSound R-410N-SB01

Features & specs
General | ||
---|---|---|
Speaker Size | 4X10 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Pulp Composite | |
Woofer Surround | Santoprene Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dual Domes | |
Tweeter Material | Silk | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 87 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 43 - 21k Hz | |
Maximum RMS Wattage | 90 | |
Peak Power Handling (Watts) | 160 | |
Top-mount Depth (Inches) | 1 3/4 | |
Bottom-mount Depth (Inches) | 2 3/16 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.455 | |
Frame Width | 4.373 | |
Frame Length | 9.947 |
Product Research
Features
Mounting: A bracket is included, along with hardware to mount the speaker in specific applications. Please enter you vehicle information to confirm fit.
Dual Voice Coils: The woofer has dual voice coils, each wired with one of the tweeters. The stereo input is useful in many older cars with a single speaker location in the dash or rear deck. If used in a standard two speaker 4x10 application the inputs should be wired in parallel (to present a 2-ohm load) or series (to present an 8-ohm load).
