About the RetroSound R-693N

Soup up a classic
Soup up a classic

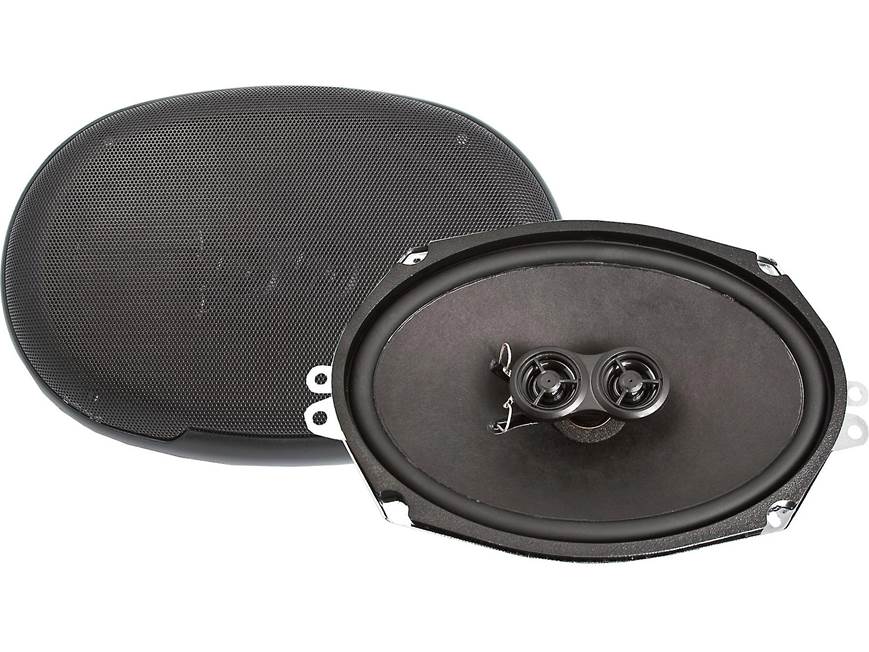

Some cars make it tough to replace your speakers, but RetroSound designed the RetroMod® Series R-693N 6"x9" 3-way speakers to fit in just about any vehicle. These speakers use a compact, powerful neodymium magnet structure to keep mounting depth to an impressive 1.78" inches, while still allowing these speakers to handle plenty of power — up to 80 watts RMS. They'll deliver strong performance powered by a car stereo or an outboard amplifier.
RetroSound builds each speaker around a low-carbon, black steel basket, using a treated paper woofer cone, a Santoprene™ rubber surround, and a Mylar tweeter and supertweeter. Translation? These speakers will stand the test of time in your vehicle, shrugging off damage from moisture or temperature extremes. Whether you're customizing an older vehicle or just looking for some nice replacements, these RetroSound speakers will fit the bill.
Product highlights:
- 6"x9" 3-way speakers (pair)
- treated paper woofer cone with Santoprene surround
- Mylar dome tweeter and supertweeter
- handles up to 80 watts RMS (160 watts peak power)
- frequency response: 40-21,000 Hz
- sensitivity: 90 dB
- top-mount depth: 1-13/16"
- grilles included
- warranty: 1 year
- MFR # R-693N
What's in the box:
RetroSound R-693N owner's manual
- Two 3-way 6x9 speakers
- 2 Grilles
- 2 Grille frames
- Two 16.5' Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/2" Self tapping screws
- 8 Speed clips
- Owner's manual
Reviews (13)
Customer reviews for RetroSound R-693N
Loading reviews...
Average review:
4.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the RetroSound R-693N

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Design | 3-way | |
Tweeter Design | Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Mylar | |
Woofer Composition | Pulp composite | |
Woofer Surround | Santoprene | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 21k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 80 | |
Peak Power Handling (Watts) | 160 | |
Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | 2 1/4 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.441 |
Product Research
Features
Woofer: The speakers feature rigid pulp composite cone woofers with Santoprene surrounds.
Midrange/Tweeters: The tweeter and midrange are low profile Mylar domes.
Neodymium Magnets: The N series speakers feature neodymium magnets. Because neodymium produces a much stronger magnetic field than ferrite (of the same size), the magnet size and mounting depth are substantially reduced.
