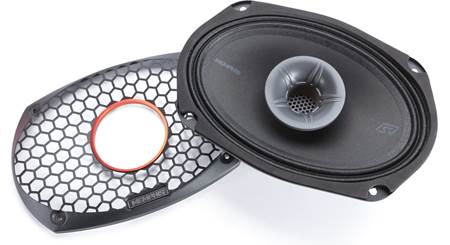

About the RetroSound R-69N

Product highlights:
- single 6"x9"" 2-way speaker
- pulp composite woofer cone with Santoprene surround
- dual voice coils for 2-channel operation
- dual mylar dome tweeters
- power range: 2-100 watts RMS (200 watts peak power)
- frequency response: 40-21,000 Hz
- sensitivity: 90 dB
- top-mount depth: 1-13/16"
- grille not included
- warranty: 1 year
- MFR # R-69N
- Item # 068R69N
What's in the box:
RetroSound R-69N owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 2-way 6x9 stereo input DVC speaker
- 12' Length of speaker wire
- Eight 1-1/8" Self tapping screws
- 8 Speed clips
- Owner's manual
More details on the RetroSound R-69N

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Pulp Composite | |
Woofer Surround | Santoprene Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dual Domes | |
Tweeter Material | Mylar | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 21k Hz | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 200 | |
Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | 2 1/4 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.447 | |
Frame Width | 6.554 | |
Frame Length | 9.243 |
Product Research
Features
Woofer: The speaker features a rigid pulp composite cone woofer with a Santoprene surround. The woofer uses a Neodymium magnet to achieve its shallow depth, so it fits in tight factory locations.
Tweeters: Two Mylar tweeters are wired separately so this single speaker will accept a stereo input.
Dual Voice Coils: The woofer has dual voice coils, each wired with one of the tweeters. The stereo input is useful in many older cars with a single speaker location in the dash or rear deck. If used in a standard two speaker application the inputs should be wired in parallel (to present a 2Ω load) or series (to present an 8Ω load).
