About the Escort Direct Wire

What's in the box:

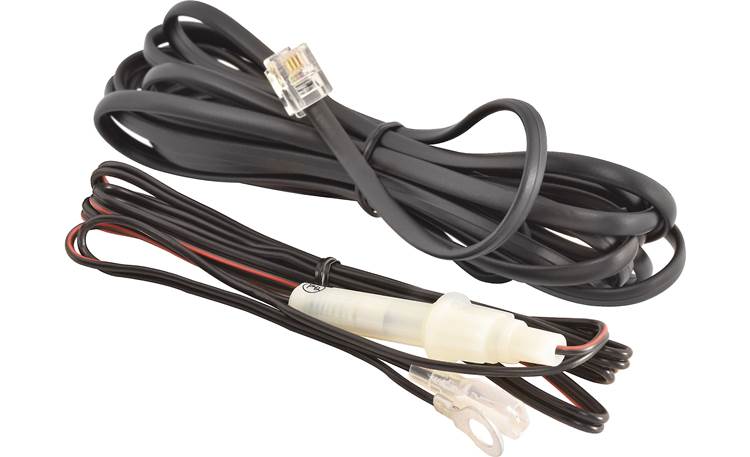

- 9.75' Direct Wire power cord (with in-line 2A AGC glass fuse) for select Escort radar detectors (RJ11 plug on one end and ring terminal/male 1/4" spade lug on other end)
- 3M connector (wire tap)
Other info:
- MFR # 0010058-1
- Item # 0790100581
More details on the Escort Direct Wire

Product Research
Features
Overview: This Direct Wire (0010058-1) is designed to power select Escort radar detectors. It connects to your vehicle's wiring and frees up your 12V accessory socket or cigarette lighter power outlet. The Direct Wire is 9 feet 9 inches in length.
Installation: The Direct Wire plugs into your radar detector via its RJ11 modular plug. The other end has separate power and ground wires. The ground wire has a ring terminal, allowing it to be attached to any grounded screw under the vehicle's dashboard. The +12V wire is terminated with an insulated 1/4" male spade lug. The Direct Wire comes with a 3M connector that lets you easily tap into an existing wire in your vehicle (14-18 gauge only). Most users tap into a "switched" circuit of the vehicle--one that is powered when the car is on and off when the car is off. Once the 3M connector is in place, the spade lug plugs into the connector to make the power connection.
Compatibility: The Direct Wire power cord works with radar detectors with a RJ11 modular power jack, including the following models:
