About the Cobra CA-MICROOBD-00
Product highlights:
- OBD-II hardwire kit for Cobra dash cams
- 15 ft. cable (9 ft. from DC converter to micro USB plug)
- plugs directly into vehicle OBD-II port without wiring or tools
- output: 5 volts/2.5A
- enables Parking Mode and Motion Detection features in parked vehicles
- intelligent power management with over current, over voltage, short circuit, over temperature, and low battery voltage protection
- compatible with Cobra dash cams including: SC100, SC201, SC200D, SC200, SC400, SC400D, DASH2208, DASH2216D, DASH2308, DASH2316D, CCDC4500, CDR 835, CDR 855 BT, CDR 875 G, CDR 895 D, CDR 900, CDR 905 DBT, CDR995 DI, CCDC4420, and CCDC4488
- warranty: 1 year
- MFR # CA-MICROOBD-003
- Item # 079MOBD003
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Cobra CA-MICROOBD-00 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Hardwire kit for select Cobra dash cameras (OBD-II connector on one end and Micro-B USB on other end)
- 2A AGU glass fuse (F2AL250V)(installed in fuse holder on power wire)
- Installation Guide
More details on the Cobra CA-MICROOBD-00
Product Research
Features

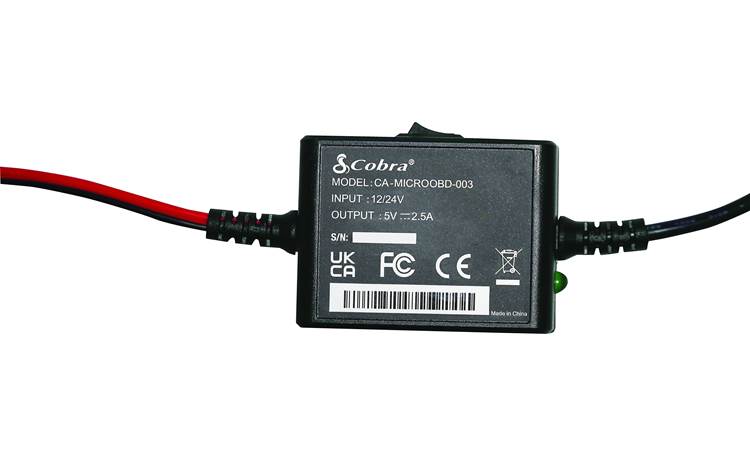

Overview: The Cobra Dash Cam Hardwire Kit (CA-MICROOBD-003) provides constant power to select Micro-B USB-powered dash cameras. One end of the harness plugs into your vehicle's OBD-II (diagnostic) port, while the other end plugs into your device with a Micro-B USB plug. The cable is over 16 feet in length: 119" (9'-11") from the switch box to the Micro-B plug and 78" (6'-6") from the switch box to the OBD-II connector. The switch box has a toggle switch that lets you turn off your device without having to disconnect it.
Compatibility: The Dash Cam Hardwire Kit is compatible with the following Cobra devices:
- SC100, SC200, SC200D, SC201, SC400, SC400D
- DASH2208, DASH 2216D, DASH2308, DASH2316D
- CDR 835, CDR 855BT, CDR 875G, CDR 895D, CDR 900, CDR 905 DBT, CDR 995 DI
- CCDC4420, CCDC4488, CCDC4500
Easy Installation: The Hardwire Kit is easy to install. One end plugs into your vehicle's OBD-II diagnostic port to supply constant power to your device. This frees up your vehicle's 12-volt accessory port and eliminates the clutter of hanging wires from your dashboard. The other end plugs into the Micro-B USB port on your dash cam. This cable is nearly 10 feet in length, allowing you to route the cable around your windshield to the dash camera's mounting location.
Benefits: With a constant power source, many dash cams can monitor your vehicle while it's parked. The Parking Mode and Motion Detection features continuously protect your vehicle while it is parked. When the camera is powered via the Hardwire Kit, the dash cam will start recording when motion, or an impact to the vehicle, is detected.
Power Management: The Cobra Dash Cam Hardwire Kit is equipped with intelligent power management circuitry to prevent power issues. The harness monitors the power for over-current, over-voltage, short circuit, and over-temperature situations. When the battery voltage is lower than 11.9V for 12-volt systems, or 23.9V for 24-volt systems, the kit's low voltage protection function will be activated, cutting off power to the dash camera. Power will resume when the vehicle is started and the battery is charged.
Specifications:
- Input Power: DC 12V / DC 24V
- Output Power: DC 5V - 2.5A
