About the Focal 300 ICW 4 Mounting Kit

Product highlights:
- new-construction bracket for the Focal 300 ICW 4 in-ceiling speaker
- easily marks the speaker installation location
- warranty: 1 year
- MFR # FOAIACAIC100000
- Item # 0913HCW4MT
What's in the box:
Focal 300 ICW 4 Mounting Kit owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 1 Mounting ring
- 2 Fixing strips
- Instruction sheet
More details on the Focal 300 ICW 4 Mounting Kit

Product Research
Features

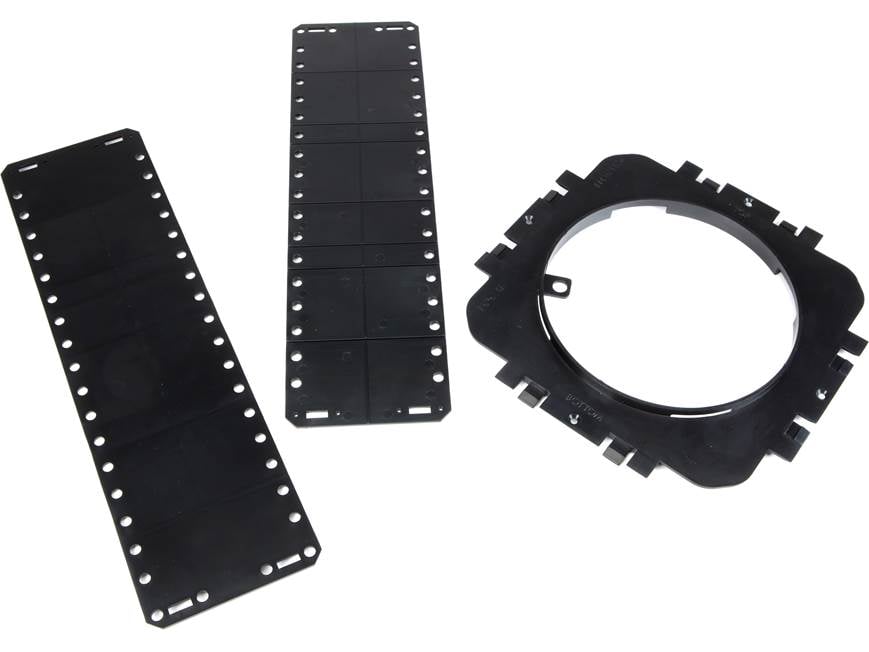

Overview: The Focal pre-construction mounting bracket is designed to mount Focal's 300 Series ICW4 in-wall/in-ceiling speaker. The kit includes 1 speaker mounting frame along with 2 fixing strips that simply snap into either ends of the mounting frame. Each fixing strip includes multiple screw holes along each side, to accommodate varying width ceiling or wall studs, as well as multiple score lines for snapping off unused sections. The speaker mounting frame includes attachment points on all four sides for the fixing strips. Each attachment point and fixing strip end have a screw hole for securing the two pieces together (screws not included). The speaker mounting frame includes a wiring eyelet for securing the speaker wires during installation.
Dimensions:
- Speaker Mounting Frame: Width - 9.250", Height - 0.60", Length - 9.250"
- Fixing Strips: Width - 4.0", Height - 0.10", Length - 14.50"
- Overall: Width - 9.250", Height - 0.60", Length - 37.125"
