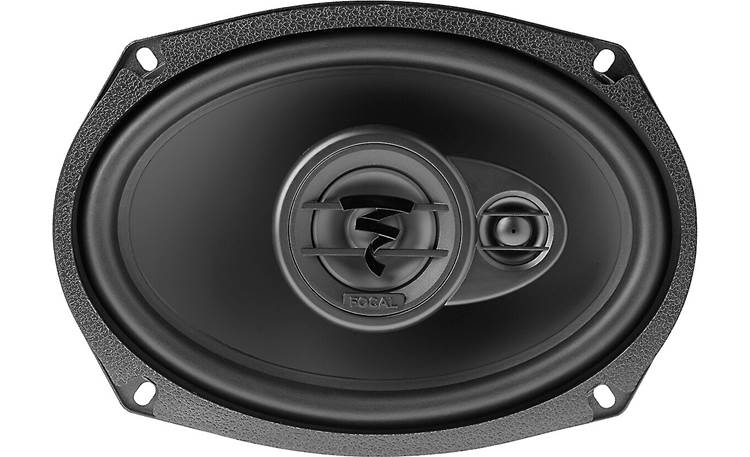

About the Focal ACX 690

Product highlights:
- 3-way car speakers (pair)
- 6"x9" polypropylene woofer cone with butyl rubber surround
- Mylar inverted dome tweeter and supertweeter
- rigid steel basket
- mesh/ABS mesh grilles included
- handles up to 80 watts RMS (160 watts peak)
- frequency response: 50-20,000 Hz
- sensitivity: 92 dB
- impedance: 4 ohms
- mounting depth: 3-3/16"
- warranty: 1 year
- MFR # ACX690
- Item # 091ACX690
What's in the box:
- Two 3-way speakers
- 2 Grilles
- 2 Grille mounting rings
- Eight 1-3/8" Screws
- 8 Speed clips
- Owner's manual (English/ French/ German/ Spanish/ Italian/ Portuguese/ Dutch/ Polish/ Chinese/ Russian/ Korean/ Japanese/ Arabic)
Featured video:
More details on the Focal ACX 690

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 3-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Butyl Rubber | |
Midrange Design | Inverted Dome | |
Midrange Material | Mylar | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Mylar | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 92 | |
Frequency Response | 50 - 20k Hz | |
Maximum RMS Wattage | 80 | |
Peak Power Handling (Watts) | 160 | |
Top-mount Depth (Inches) | 3 3/16 | |
Bottom-mount Depth (Inches) | 3 5/8 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.625 | |
Frame Width | 6.524 | |
Frame Length | 9.237 |
Product Research
Features
Woofer: The polypropylene cone and butyl rubber surround are resistant to the temperature extremes and humidity often found in the automotive environment, adding to the speaker's reliability and longevity.
Tweeter/Midrange: Each speaker features a Mylar inverted dome tweeter and a Mylar inverted dome midrange for a full range sound.
The Focal ACX 690 replaces these items:
- 6"x9" polypropylene woofer cone with butyl rubber surround
- Mylar inverted dome tweeter and supertweeter
- handles up to 80 watts RMS (160 watts peak)
