About the Focal E 25 KX
High-performance sub
High-performance sub

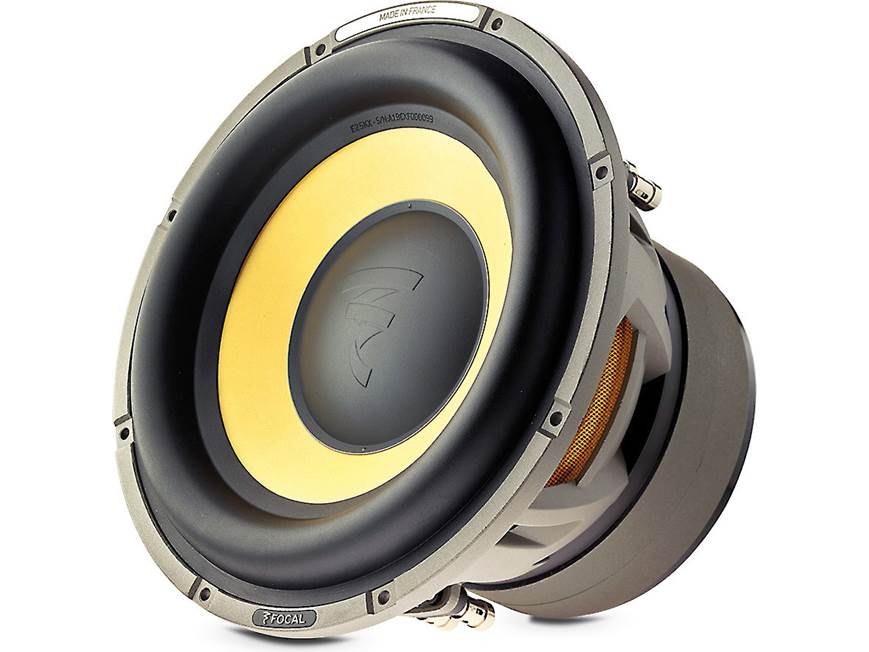

This sub's name gets straight to the point — Focal's K2 Power E 25 KX 10" subwoofer delivers hard-hitting low end that combines realistic reproduction with competition-level sound pressure. Precision engineering and hand-assembled construction make this sub a sound choice for a high-performance bass system.
The super-rigid zinc alloy basket creates a stable platform for powerful, accurate bass.
Assembled and inspected by hand
You can feed the K2 Power E 25 KX 10" subwoofer up to 600 watts RMS without fear. This dual 4-ohm voice coil sub works best in sealed enclosures to produce bass that's highly accurate and plenty forceful. Focal assembles each sub by hand and rigorously inspects them for any flaws to ensure your investment performs to the high sonic standards they've set.
Powerful magnet
A massive two-segment magnet supplies the backbone for the sub's powerful reputation, driving the motor assembly with unerring precision. Focal anchors the K2 Power sub with a rugged zamak zinc alloy basket for dependable performance that won't get bent out of shape by your music.
3-layer cone
At the top end of the sub, a butyl rubber surround maintains control of the cone, even during deep excursion. Focal's unique composite sandwich cone employs a structural foam central core coated with a layer of Aramid fiber on the front and a glass layer on the back side. The three layers together form an incredibly rigid yet lightweight membrane for high-quality sound reproduction with an added emphasis on thunderous sound pressure.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- Featured in our article: Best bass systems for a small car or hatchback in 2023
- 10" dual 4-ohm voice coil subwoofer
- aramid fiber/foam/glass composite sandwich cone with butyl rubber surround
- zamak zinc alloy basket
- power handling: 100-600 watts RMS
- peak power handling: 1200 watts
- frequency response: 25-500 Hz
- sensitivity: 84.5 dB
- top mount depth: 6-13-16"
- sealed box volume: 0.53 - 0.78 cu. ft.
- ported box volume: 0.78 - 1.06 cu. ft.
- grille not included
- warranty: 1 year
- MFR # Kit E 25KX
What's in the box:
- 10" Dual 4-ohm voice coil subwoofer
- Owner's manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Russian)
Reviews (3)
Customer reviews for Focal E 25 KX
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Focal E 25 KX
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | K2 Kevlar Sandwich | |
| Surround Material | Butyl Rubber | |
| Port diameter (inches) | 3.15 | |
| Port length (inches) | 13.78 | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
84.5 dB at 2.83 volts | |
| Frequency Response | 25 - 500 Hz | |
| Max RMS Power Handling | 600 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 6 13/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 1/4 | |
| Vas (liters) | 20 | |
| Fs (Hz) | 38 | |
| Qts | 0.52 | |
| Xmax (millimeters) | 22.5 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 0.53 | |
| Maximum Sealed Box Volume (cubic feet) | 0.78 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 0.78 | |
| Maximum Ported Box Volume (cubic feet) | 1.06 | |
Product Research
Features
K2 Cone: The woofer cone is a sandwich composite consisting of a foam core, a structural glass fiber bottom layer, and a Kevlar top layer. This combination of materials results in a rigid, light weight cone with excellent damping characteristics.
Dual 4Ω Voice Coils: The dual 4Ω voice coils offer wiring flexibility; when wired in parallel the woofer presents a 2Ω load, when wired in series the woofer presents an 8Ω load.
Compression Terminals: The two sets of spring post terminals will accommodate single banana plugs, dual banana plugs (standard 3/4" width), and bare speaker wire up to 10 gauge.
Sealed Box: Focal recommends sealed enclosure sizes from 0.53 ft³ to 0.78 ft³. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Box: Two ported enclosure volume options are listed in the manual; 0.78 ft³ (22 liters) with one 3.15" (8cm) diameter x 13.78" (35cm) long port and 1.06 ft³ (30 liters) with one 3.15" (8cm) diameter x 16.93" (43cm) long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output.
Loading accessories...
Customer Q&A
2 questions already asked
Loading articles...
Great subwoofer for SQ needs very accurate. This sub wont be real boomy like a JL off the back you have to tweak it with box and eq other than that the box you choose will give it its sound. Ive done a .4 to a .7 cu.ft. The biggest the boomiest the smallest more accurate.
Salvador from Albuquerque
