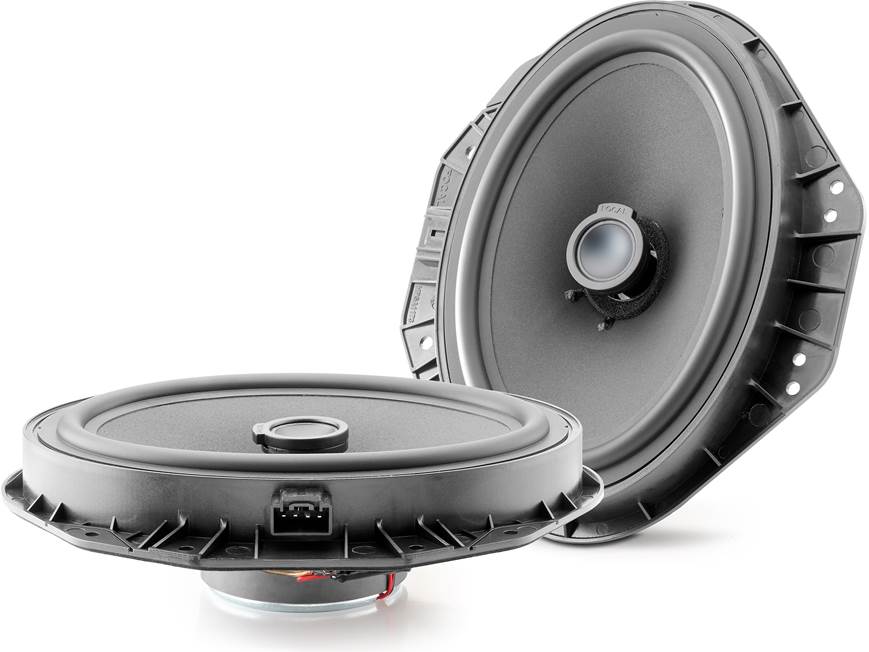

About the Focal Inside IC FORD 690

Product highlights:
- 2-way 6"x9" speakers (pair)
- designed to fit a variety of Ford and Lincoln vehicles
- Ford-specific wire connectors (no cutting required)
- Polyglass woofer with butyl rubber surround
- aluminum/magnesium inverted dome tweeter
- includes foam rings (insulation between speaker and door opening)
- quick installation (no modifications needed)
- impedance: 4 ohms
- power handling: 75 watts RMS (150 watts peak)
- frequency response: 60-20,000 Hz
- sensitivity: 92 dB
- top mount depth: 1-5/8"
- grilles not included
- warranty: 1 year
- MFR # ICFORD690
- Item # 091ICFOR69
What's in the box:
Focal Inside IC FORD 690 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Adhesive backed foam gaskets
- Two 10" Wire extensions
- Eight 3/4" Screws
- 8 Rivets
- 2 Focal Inside badges
- User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Polish/ Russian/ Korean/ Chinese/ Japanese/ Arabic)
- Focal window sticker
More details on the Focal Inside IC FORD 690

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polyglass | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 89 | |
Sensitivity at 2.83 volts | 92 | |
Frequency Response | 60 - 20k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 150 | |
Top-mount Depth (Inches) | 1 5/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 1.34 | |
Frame Width | 8.65 | |
Frame Length | 10.228 |
Product Research
Features
Fit: The IC FORD 690 is designed as a plug and play replacement for select Ford and Lincoln vehicles. Please enter your vehicle information to confirm fit.
Wiring: In most installations where the IC FORD 690 fits, the factory wiring harness plugs directly into the speaker frame. When that's not the case, an extension is included.
