About the Focal Inside IS MBZ 100 V2

Product highlights:

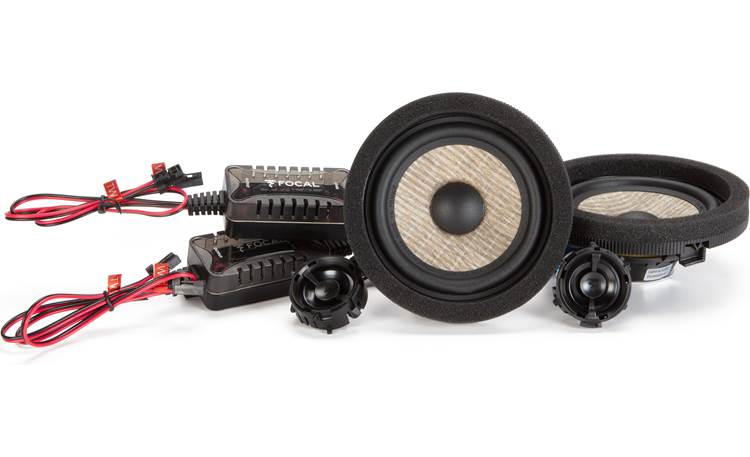

- component speaker system includes two midrange woofers, two tweeters, two inline crossovers
- designed to fit a variety of Mercedes-Benz vehicles
- Mercedes-specific wire connectors (no cutting required)

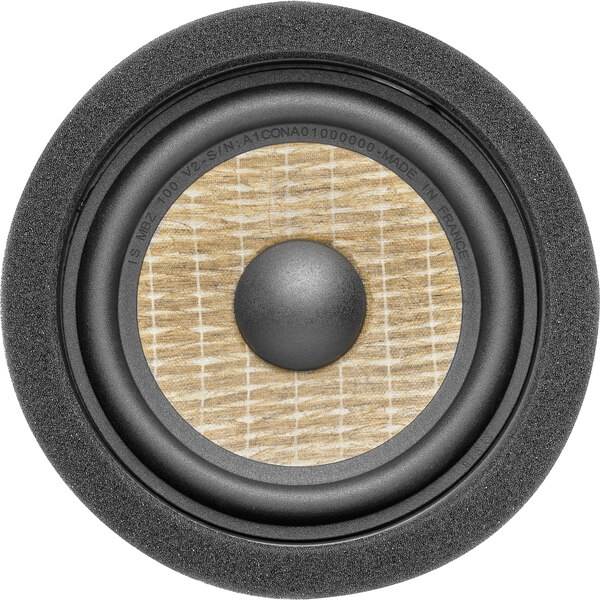

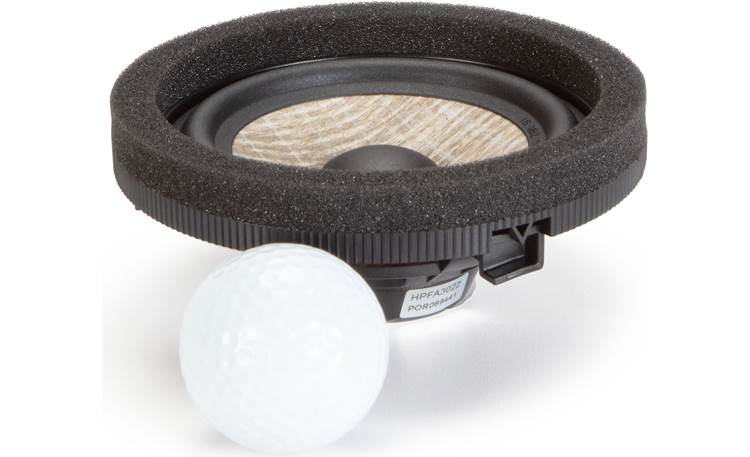

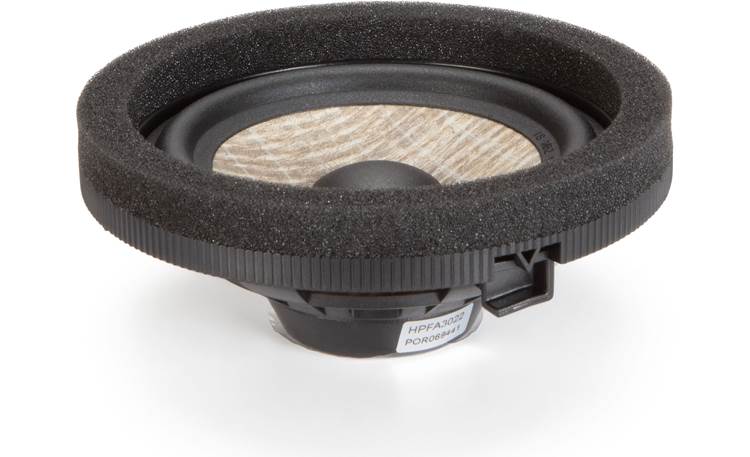

- 4" flax woofer with butyl rubber surround

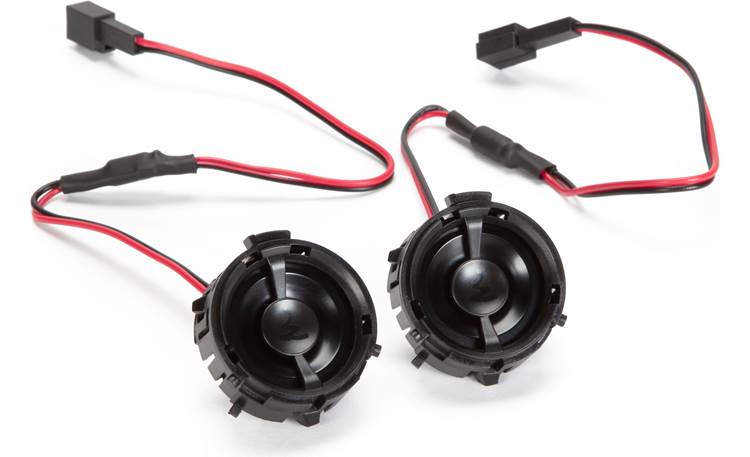

- aluminum inverted dome tweeter in OEM housing
- impedance: 4 ohms
- power handling: 50 watts RMS (100 watts peak)
- frequency response: 150-20,000 Hz
- sensitivity: 87 dB
- warranty: 1 year
- MFR # ISMBZ100V2
- Item # 091ISMB102
What's in the box:
Focal Inside IS MBZ 100 V2 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 IS MBZ 100 v2 Woofers
- 2 IS MBZ 100 v2 Tweeters (12" wires attached with in-line crossovers/terminated with proprietary connectors)
- 2 Woofer crossovers
- 2 Focal Inside badges
- Quick start guide (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Polish/ Russian/ Korean/ Chinese/ Japanese/ Arabic)
- Focal window sticker
More details on the Focal Inside IS MBZ 100 V2

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Flax | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 87 | |
Frequency Response | 150 - 20k Hz | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 100 | |
Top-mount Depth (Inches) | 1 5/16 | |
Bottom-mount Depth (Inches) | 1 5/8 | |
Cutout Diameter or Length (inches) | 3 11/16 | |
Mounting Height (Inches) | 0.35 | |
Frame Width | 4.75 | |
Frame Length | 4.75 |
Product Research
Features

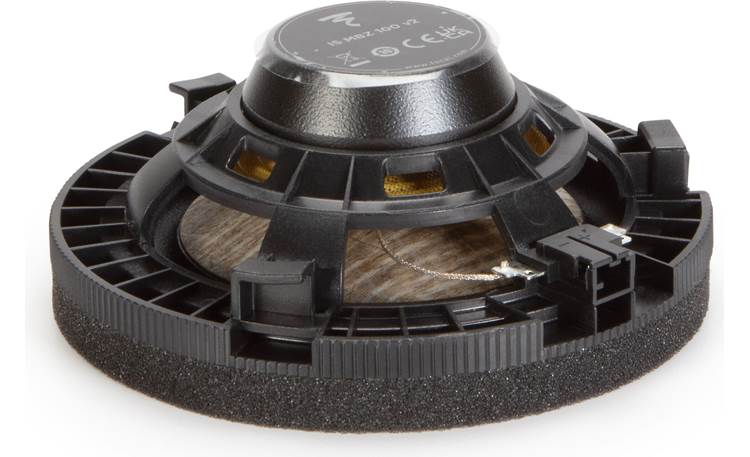

Mounting: The IS MBZ 100 v2 component speaker set is a direct replacement for the factory speakers in select Mercedes Benz vehicles. Both the woofers and tweeters are direct, snap-in replacements for the factory drivers. Please enter your vehicle information to confirm fit.

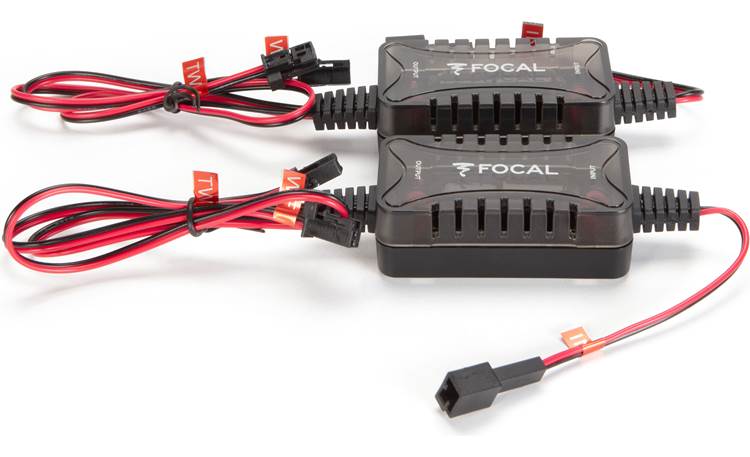

Wiring: Each component crossover's input and output wires have factory plugs, so no splicing is necessary; the factory woofer harness plugs into the new crossover input. The crossover's 16" tweeter output wire plugs into the 12" wire attached to the tweeter and the 8" woofer output wire plugs directly into the woofer frame. An adhesive pad is attached to each crossover for mounting behind the door panel.
Crossovers Dimensions:
- Width: 2⅞" (4⅜" including wire)
- Height: 1"
- Length: 1½"
