About the Focal Inside IS TOY 690

Product highlights:
- 6"x9" component speaker system includes two woofers, two tweeters, and two inline crossovers
- designed to fit a variety of Toyota, Lexus, and Subaru vehicles
- vehicle-specific wire connectors (no cutting required)
- Polyglass woofers with butyl rubber surround
- aluminum/magnesium inverted dome tweeters
- in-line/integrated crossovers
- impedance: 4 ohms
- power handling: 75 watts RMS (150 watts peak)
- frequency response: 50-20,000 Hz
- sensitivity: 92.3 dB
- woofer top mount depth: 1-5/8"
- grilles not included
- warranty: 1 year
- MFR # ISTOY690
- Item # 091ISTOY69
What's in the box:
Focal Inside IS TOY 690 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 IS TOY 690 Woofers
- 2 TiS 1.5 Tweeters (each with a 4" wire attached containing an in-line crossover)

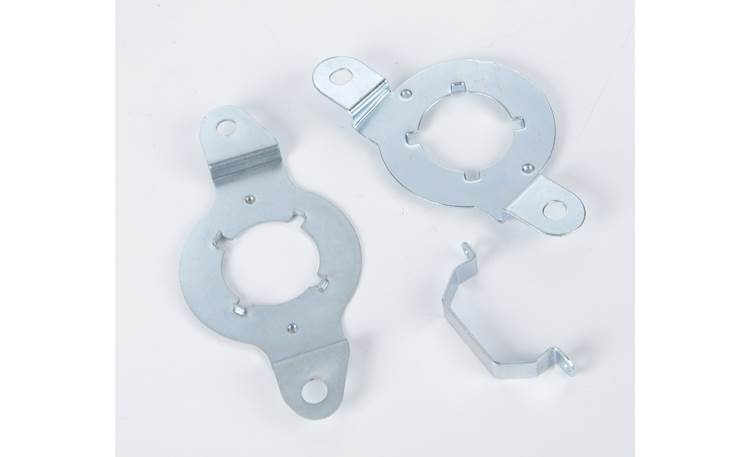

- 4 Tweeter mounting brackets (2 Each of 2 Different types)
- 2 Tweeter clamps
- 4 Factory tweeter wire adapters (2 Each of 2 Different types)
- 4 Machine screws
- Two 10" Woofer wire extensions
- 8 Rivets (woofer)
- 2 Focal Inside badges
- User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Polish/ Russian/ Korean/ Chinese/ Japanese/ Arabic)
- Focal window sticker
More details on the Focal Inside IS TOY 690

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polyglass | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Inverted Dome | |
Tweeter Material | Aluminum/Magnesium | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 92.3 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 50 - 20k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 150 | |
Top-mount Depth (Inches) | 1 5/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 1.45 | |
Frame Width | 8.455 | |
Frame Length | 10.518 |
Product Research
Features
Fit: The IS TOY 690 is designed as a plug and play replacement for select Toyota and Lexus models. Please enter your vehicle information to confirm fit.
Wiring: In installations where the IS TOY 690 fits, the factory wiring plugs directly into the Focal woofer frames. Tweeter harnesses are included that plug into the factory wiring at the tweeter locations. No splicing is necessary.
The Focal Inside IS TOY 690 replaces these items:
- component system includes two woofers, two tweeters, and installation gear
- 6"x9" woven fiberglass woofer cone
- TIS 1.5 aluminum inverted dome tweeter with built-in crossover
