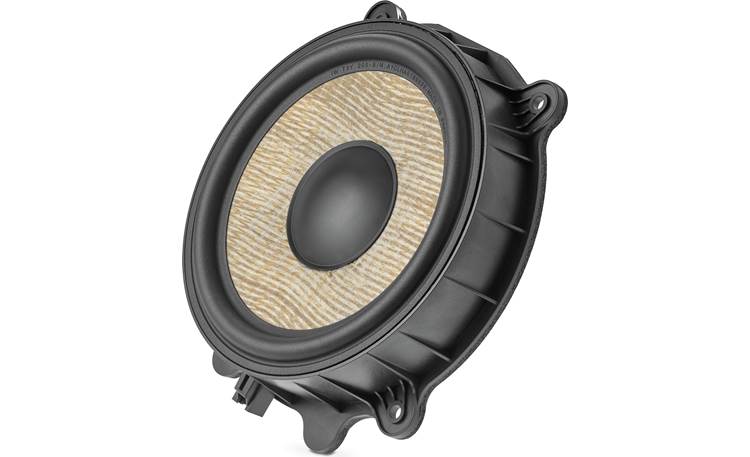

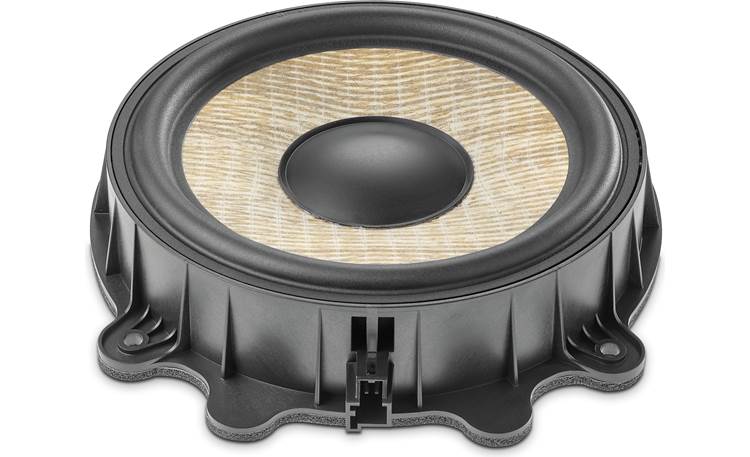

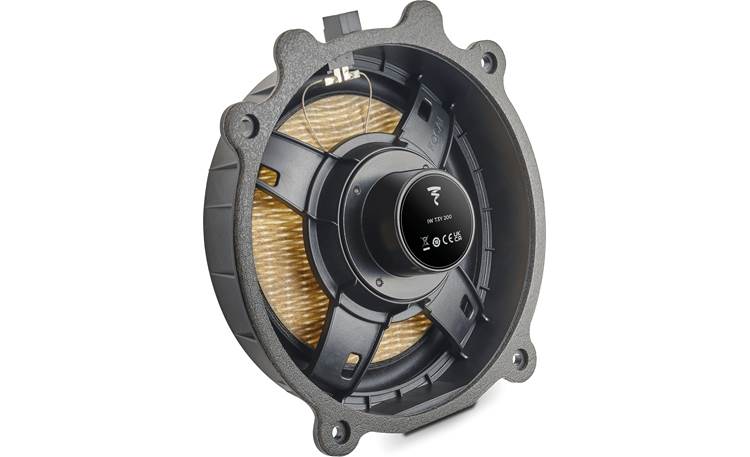

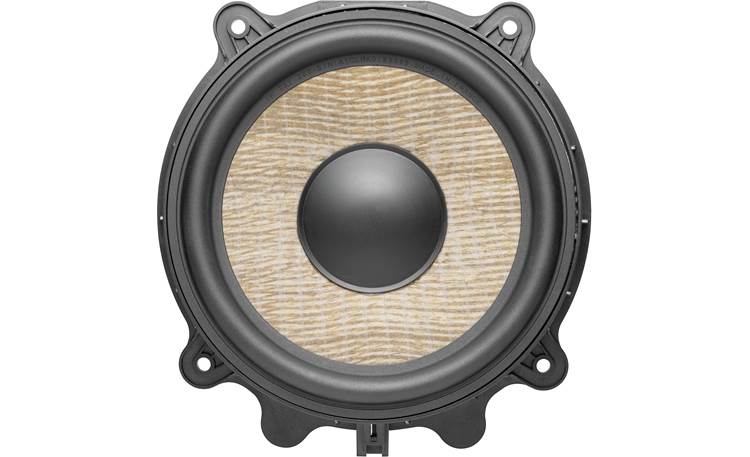

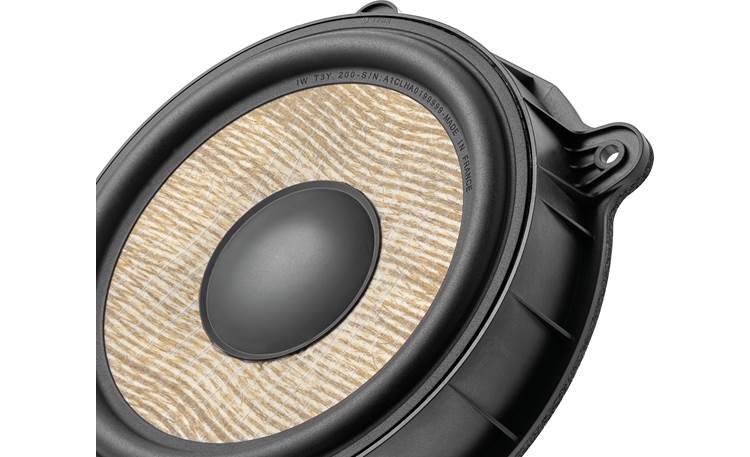

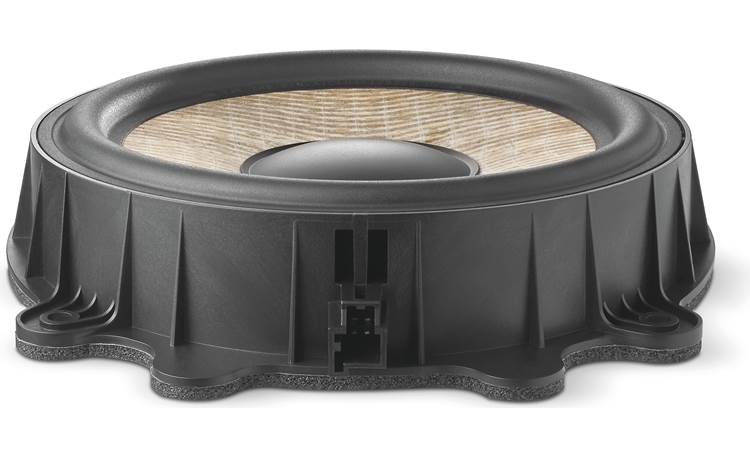

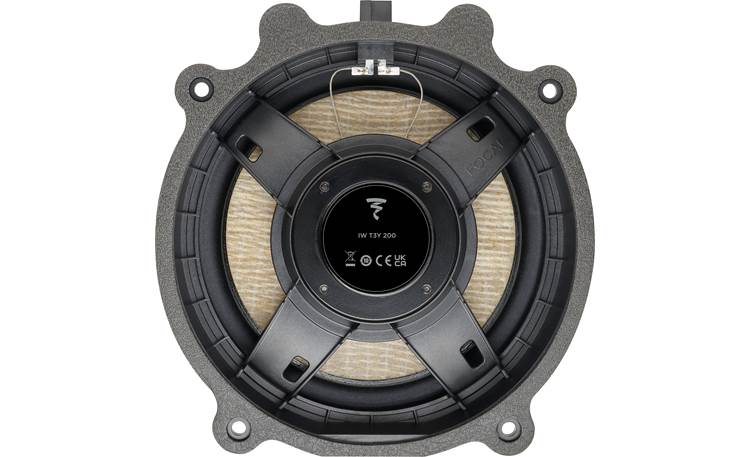

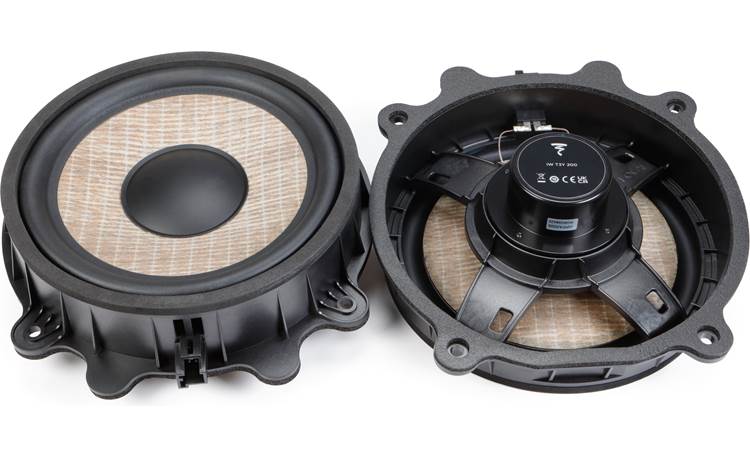

About the Focal Inside IW T3Y 200

Product highlights:
- two 8" woofers
- designed to fit Tesla Model 3 and Model Y vehicles
- Tesla-specific wire connectors (no cutting required)
- 8" flax woofer cone with butyl rubber surround
- neodymium magnets and 1.5" voice coils
- impedance: 4 ohms
- power handling: 75 watts RMS (150 watts peak)
- frequency response: 40-1500 Hz
- sensitivity: 91 dB
- grilles not included
- warranty: 1 year
- MFR # IWT3Y200
- Item # 091IWT3Y20
What's in the box:
Focal Inside IW T3Y 200 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Woofers
- Quick start guide (English/ French/ German/ Italian/ Spanish/ Portugese/ Dutch/ Polish/ Russian/ Chinese/ Korean/ Japanese/ Arabic)
- Focal window sticker
- 2 Adhesive backed Focal Inside badges
More details on the Focal Inside IW T3Y 200

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 1-way | |
Woofer Design | Cone | |
Woofer Material | Flax | |
Woofer Surround | Butyl Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 91 | |
Frequency Response | 40 - 1.5k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 150 | |
Top-mount Depth (Inches) | 1 3/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 3 3/4 | |
Mounting Height (Inches) | 1.375 | |
Frame Width | 8.44 | |
Frame Length | 8.44 |
Product Research
Features
Mounting: The IW T3Y 200 is a direct replacement the factory woofers in select Tesla vehicles. Please enter your vehicle information to confirm fit.
Wiring: The factory wiring harness plugs directly into the frame of these new speakers, so no splicing or additional wire is necessary.
