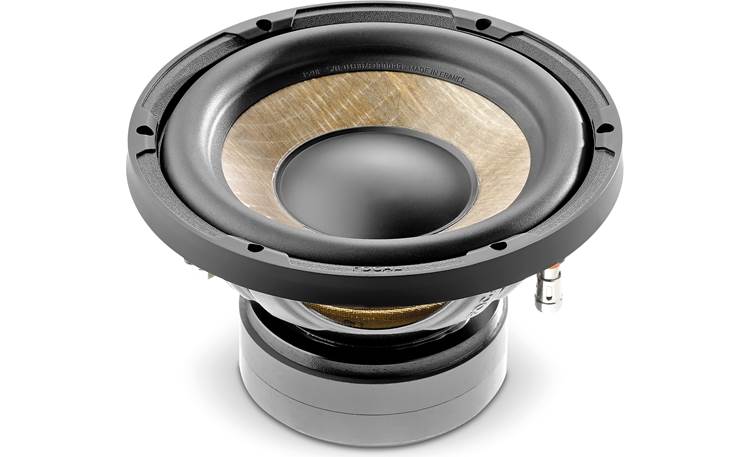

About the Focal P 20FE

Product highlights:
- 8" 4-ohm component subwoofer
- glass fiber/flax/glass fiber laminate cone
- rubber surround
- power handling: 250 watts RMS (500 watts peak)
- frequency response: 39-500 Hz
- sensitivity: 82.5 dB
- top-mount depth: 4-5/8"
- sealed box volume: 0.35-0.53 cubic feet
- ported box volume: 0.35-0.71 cubic feet
- grille not included
- warranty: 1 year
- MFR # P20FE
- Item # 091SUBP20E
What's in the box:
- One 8" Single voice coil subwoofer
- Rubber trim ring/gasket (installed)
- Six 7/8" Screws
- User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Polish/ Russian/ Chinese/ Korean/ Japanese)
- Focal decal
- Specifications printed on the box
More details on the Focal P 20FE

Features & specs
Features and Specs | ||
---|---|---|
Size | 8-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Flax/Glass | |
Surround Material | Rubber | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
82.5 dB at 2.83 volts | |
Frequency Response | 39 - 500 Hz | |
Max RMS Power Handling | 250 | |
Peak Power Handling (Watts) | 500 | |
Top Mount Depth (inches) | 4 5/8 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 7 1/8 | |
Frame Width | 8.405 | |
Frame Length | 8.405 | |
Vas (liters) | 12 | |
Fs (Hz) | 38.5 | |
Qts | 0.56 | |
Xmax (millimeters) | 10 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 0.35 | |
Maximum Sealed Box Volume (cubic feet) | 0.53 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 0.35 | |
Maximum Ported Box Volume (cubic feet) | 0.71 | |
Port diameter (inches) | 2.75 | |
Port length (inches) | 12 |
Product Research
Features
Cone: The woofer cone is a sandwich design, with a flax center between two glass layers. This combination of materials results in a neutral sound without coloration.
Surround: The rubber surround is resistant to ultraviolet rays, temperature extremes, and humidity to add to the speaker's reliability and longevity.
Spring-Posts: The spring-post speaker terminals offer easy connection of single banana plugs or bare wire up to 10 gauge.
Rubber Gasket: The gasket/mounting-ring ensures better chassis damping and prevents air leakage. The rubber gasket is removable.
Sealed Box Volume: Focal recommends a sealed enclosure with a volume between 10 liters (0.35 ft³) and 15 liters (0.53 ft³).
Ported Box Volume: Focal recommends a ported enclosure with a volume between 10 liters (0.35 ft³) and 20 liters (0.71 ft³) using a single port tube (size in the table below):
Vented Enclosure Specifications | |||
---|---|---|---|
Internal Volume | 0.35 ft³ | 0.53 ft³ | 0.71 ft³ |
Port | 2¾" diameter x 12" long | 2¾" diameter x 13-25/32" long | 2¾" diameter x 13-25/32" long |
-3 dB | 45 Hz | 35 Hz | 30 Hz |
The Focal P 20FE replaces these items:
- glass fiber/flax/glass fiber laminate cone
- handles up to 250 watts RMS (500 watts peak)
- frequency response: 39-500 Hz
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
I am running 3 of these under the back seat of an 01 Colorado with an FPX 1000.1 and they pound. Nobody believes it until they see it. The sound quality is ridiculous!
Bruce from Sparks, NV
