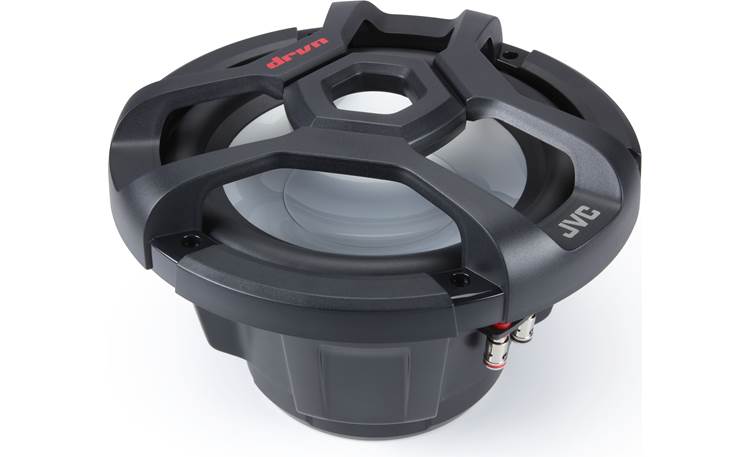

JVC CW-DR1040ML DRVN Series 10" marine subwoofer with RGB LED lighting — optimized for free-air applications

Name: JVC CW-DR1040ML
Brand: JVC
SKU: 105DR1040M
Price: 399.0 USD
Availability: InStock

Item # 105DR1040M

Add deep bass and bright lights with this hard-hitting outdoor/marine sub — perfect for your boat or ATV

Front

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Remote

Add deep bass and bright lights with this hard-hitting outdoor/marine sub — perfect for your boat or ATV

Item # 105DR1040M

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$399.00 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Dominic DeVito

Add some thump to your boat, ATV, or golf cart

JVC's DRVN Series has given us some impressive subwoofers for the car, but the CW-DR1040ML is their first foray into marine subs. This 10" outdoor-ready banger uses some of the same great tech as its landlocked counterparts, with some added features to make it ideal for your boat or other all-weather vehicle (such as a side-by-side, golf cart, or ATV). It handles up to 300 watts RMS (1,300 peak) and offers a 4-ohm load.

And a splash of color

With JVC DRVN Series speakers, impressive sound is a given. But this powerful sub also give you attractive RGB LED lighting that'll add style to your boat or vehicle. JVC includes a handy remote control for adjusting the speed, color, pattern and brightness of the light.

Ready for the outdoors

Marine audio gear lives a pretty harsh life with sun, spray, salt, and extreme temperatures, plus the occasional fish that gets loose on the deck. The CW-DR1040ML is ready for all of it, with a tough polypropylene cone to pump out the bass and a rubber surround to keep things on track. The sub's designed for free-air use, allowing you to get creative with your installation on unusual vehicles, but it's also at home in sealed enclosures The included grille gives your sub a stylish look and helps protect it against random hazards on land or on the water.

Product highlights:

10" marine subwoofer
multi-color RGB LED lights with included remote control
4-ohm impedance
polypropylene cone with rubber surround
UV-resistant grille included
designed for free-air (infinite baffle) use (also works in sealed enclosures)
IPX6 waterproof rating

Specs:

power handling: 300 watts RMS (1300 watts peak power)
sensitivity: 84 dB at 1 meter per 1 watt
frequency response: 40-300 Hz
impedance: 4 ohms
mounting depth: 5.5"
top-mount depth: 1.81"
cutout diameter: 9.19"
warranty: 1 year
MFR # CW-DR1040ML
Item # 105DR1040M

What's in the box:

JVC CW-DR1040ML owner's manual

10" Subwoofer (fixed grille)
10" Link harness
Remote control (CR2025 battery installed)
6 Screws
6 Speed-clips
2 Rubber sleeves
Instruction Manual
Template
Warranty Sheet

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	10-inch
Impedance (Ohms)	4
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Polymer
Grille	Black plastic, Fixed
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	84 dB at 1 watt
Frequency Response	40 - 300 Hz
Max RMS Power Handling	300
Peak Power Handling (Watts)	1300
Top Mount Depth (inches)	5 1/2
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9 3/16
Frame Width	10.8125
Frame Length	10.8125
Vas (liters)	37.3
Fs (Hz)	43.76
Qts	0.27
Xmax (millimeters)	2.9
Parts Warranty	1 Year
Labor Warranty	1 Year
Box Requirements
Ideal Sealed Box Volume (cubic feet)	2.02
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	N/A
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	N/A
Port length (inches)	N/A

Product Research

Features

IPX6 Rated: The JVC CW-DR10140ML offers a tough design that conforms to the IPX6 standard, so you can enjoy high-quality bass even under the harsh environment of marine and motorsports use. The IPX6 rating guarantees water and dust ingress protection, so the woofer can withstand marine and outdoor environments.

Note: The IPX6 rating is only for the woofer. The included remote control is not IPX6 rated.

10" Polypropylene Woofer: The CW-DR10140ML features a 10" polypropylene cone with rubber surround and resin molded frame basket. Its large magnet produces high braking force, while the 4-layer voice coil can handle a large amount of power input. In addition, the Magnetic Circuit, whose volume has been increased by 35% compared to the conventional design, has greatly increased the driving force to move the diaphragm. Plus, the durability of the vibration system has been greatly enhanced to handle the high input power of 300W RMS. This all results om clear and powerful bass sound reproduction.

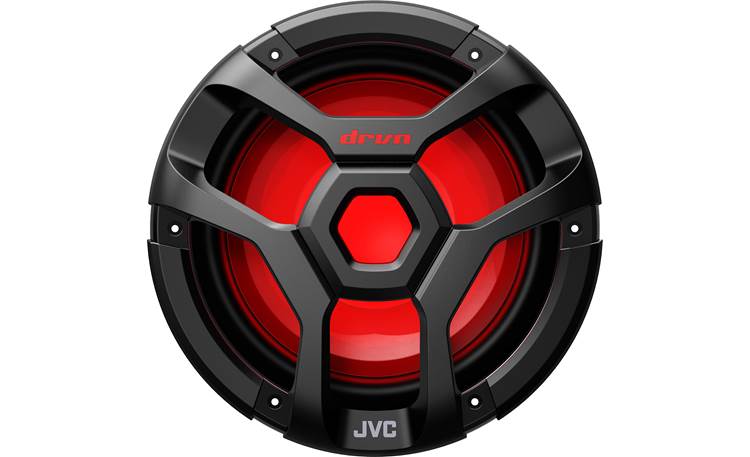

LED Illumination: In addition to great bass sound, the CW-DR1040ML is also equipped with LED Illumination so you can choose your favorite color that suits your mood or music. Using the included remote control, you can from 21 different colors patterns with varying speeds and brightness. The LED illumination feature will require a separate hardwired power and ground connection.

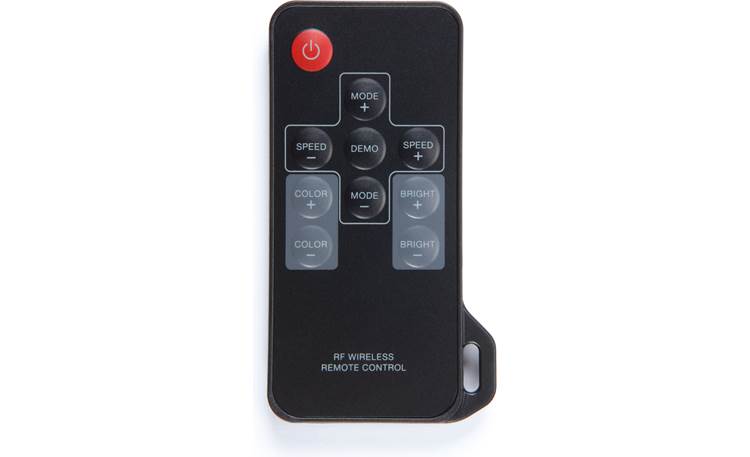

Remote Control: The included RF remote can be used in sunlight and does not require direct line of sight to the subwoofer. It has a wireless range of approximately 98' (30m). The battery is powered by a single CR2025 3V battery that comes pre-installed.

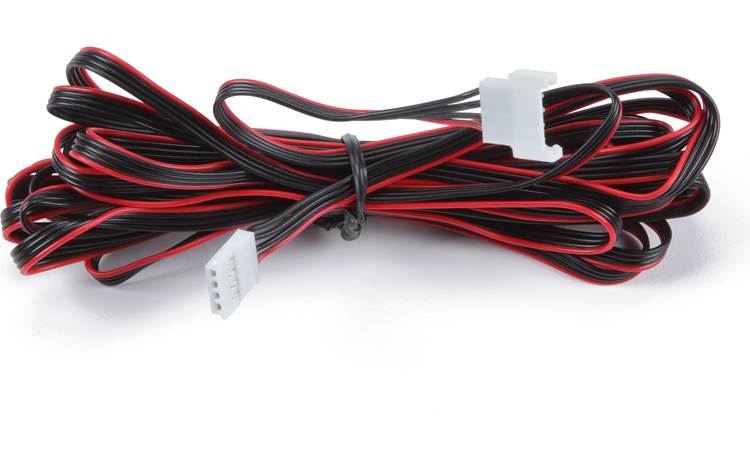

Note: A 10' harness (4-pin) is included to link up to twelve CW-DR1040ML subwoofers, so you can control them all with a single remote. When linked the subwoofers will display the same color pattern. You cannot control subwoofers individually.

Mounting Options: The JVC CW-DR10140ML is designed for free-air application, but can also be installed in a sealed enclosure that measures 17.0" (w) x 17.0" (h) x 16.0" (d) with a 2.02 cu.ft internal volume and 9.1875" (diameter) mounting hole. The box should be made of 3/4" thick MDF (medium density fiberboard) or high density particle board. The grille is fixed and is not removable. The woofer is held in place by six screws.
