About the Polk Audio DB 1242 SVC

Hard-hitting bass
Hard-hitting bass

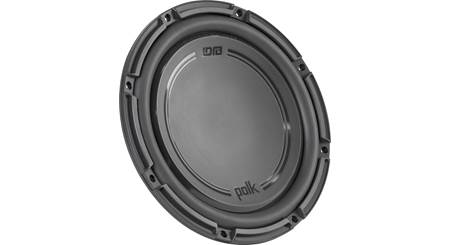

Polk Audio's DB+ Series subwoofers combine high-tech materials and advanced design to give you smooth, powerful, hard-hitting bass without stressing your wallet. The DB 1242 SVC 12" subwoofer boasts a rigid polypropylene cone and durable Santoprene™ surround built to handle big power over the long run. Its low-profile design means you get serious performance from a sub that takes up less space.
Certified for marine use
Match a DB+ sub to a suitable enclosure, and enjoy impressive bass punch rarely found in this price range. Polk Audio tests this sub rigorously for environmental effects caused by sun, moisture, and extreme temperature changes. They even certify this sub for marine applications, so they're a great choice for your boat too.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 12" 4-ohm subwoofer
- polypropylene cone with Santoprene rubber surround
- marine-certified for use in boats and convertibles
- handles up to 370 watts RMS
- peak power handling: 1110 watts
- frequency response: 26-200 Hz
- sensitivity: 86 dB
- top-mount depth: 4-3/8"
- sealed box volume: 1.25-3.5 cu. ft.
- ported box volume: 1.75-2.25 cu. ft.
- warranty: 1 year
- MFR # AA9242-A
What's in the box:
Polk Audio DB 1242 SVC owner's manual
- One 12" subwoofer
- 1 Foam gasket
- Eight 1-3/8" Allen head stainless steel screws
- Wiring diagram/ Specification sheet (English/ French/ Spanish/ German/ Italian)
- Online registration information
Customer reviews for Polk Audio DB 1242 SVC
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Polk Audio DB 1242 SVC

Features & specs
Features and Specs | ||
---|---|---|
Size | 12 -inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene Composite | |
Surround Material | Rubber | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
86 dB at 1 watt | |
Frequency Response | 26 - 200 Hz | |
Max RMS Power Handling | 370 | |
Peak Power Handling (Watts) | 1110 | |
Top Mount Depth (inches) | 4 7/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 11 1/16 | |
Vas (liters) | 0 | |
Fs (Hz) | 0 | |
Qts | 0 | |
Xmax (millimeters) | 0 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 1.25 | |
Maximum Sealed Box Volume (cubic feet) | 3.5 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 1.75 | |
Maximum Ported Box Volume (cubic feet) | 2.25 |
Product Research
Features
Marine Certification: Polk DB+ series speakers are marine certified (IP56 rated), making them a good choice for boats in fresh water, convertibles, motorcycles, ATVs, and other applications where the speaker might get wet. Because they have coated steel baskets and the terminals are not covered, we do not recommend using them in salt water environments.
Dynamic Balance: Dynamic Balance is a proprietary Polk Audio technology using laser imaging to determine what combination of speaker materials create the least amount of resonance. Eliminating resonance in speakers results in a wide, smooth response and low distortion.
Sealed Box Volume: Polk recommends a sealed enclosure between 1.25 ft³ and 3.5 ft³.
Ported Box Volume: Polk recommends a ported enclosure between 1.75 ft³ and 2.25 ft³.
The Polk Audio DB 1242 SVC replaces these items

Polk Audio db1240
- polypropylene cone with Santoprene rubber surround
- 50-360 watts RMS power range
- peak power handling: 720 watts
