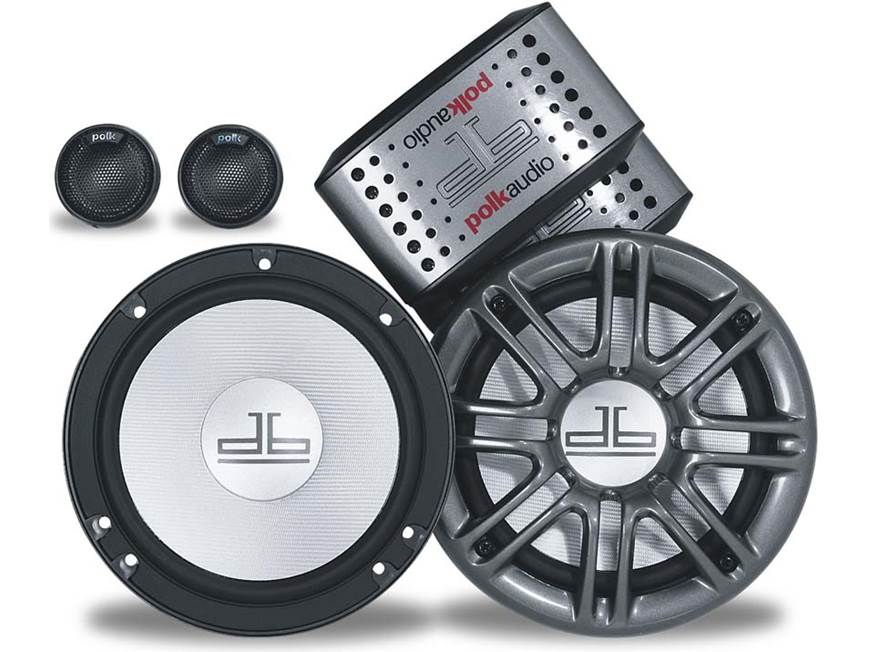

About the Polk Audio db6500
Dreaming about better sound in your car audio system? Do you want lows that are full and definitive? Highs that resonate with clarity? Stop dreaming! Polk's db Series db6500 component system uses 6-1/2" Dynamic Balance polymer/mica woofers to produce full, rich lows that are free of detail-robbing distortion. Rubber surrounds, Kapton voice coil formers, and pole plate heat sinks protect the woofers against the stresses of heat and time.
The liquid-cooled silk/polymer composite tweeters can be mounted in either flush- or surface-mount cups to project detailed highs where you want to hear them. The two-way crossover networks (4,000 Hz, 12 dB/octave) ensure smooth, well-balanced output, with built-in protection circuitry to guard your tweeters against accidental damage from high power. And you don't have to limit these speaker systems to your car they've passed tough environmental testing that certifies them for marine use as well.
Priced per system
- component speaker system includes woofers, tweeters, and crossovers
- polypropylene/mica woofer with rubber surround
- 1" liquid-cooled silk/polymer tweeter
- certified for marine use
- 2-way crossover network (4,000 Hz, 12 dB/octave)
- tweeter protection circuitry
- frequency response: 40-23,000 Hz
- recommended power range: 10-100 watts RMS (300 watts peak power)
- sensitivity: 92 dB
- top-mount depth: 2"
- warranty: 1 year
- MFR # AA6500-A
What's in the box:
- 2 Woofers
- 2 Grilles
- 2 Self-adhesive foam gaskets
- 2 Tweeters (each tweeter has attached 38" speaker leads)
- 2 Flush-mount cups
- 2 Metal flush-mount clamps
- 2 Surface-mount cups
- 2 Crossovers
- Two 10' lengths of speaker wire (each length of wire has female quick-slides on one end and tinned wire on the other end)
- 14 Self-tapping screws
- 8 Speed clips
- Owner's Manual
- Online registration sheet
Customer reviews for Polk Audio db6500
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the Polk Audio db6500
Features & specs
|Tweeter Design||1" Dome|
|Tweeter Composition||Silk/Polymer composite|
|Woofer Composition||Polymer/Mica composite|
|Woofer Surround||Butyl rubber|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||92|
|Sensitivity at 2.83 volts||N/A|
|Frequency Response||40 - 23k Hz|
|Minimum RMS Wattage||10|
|Maximum RMS Wattage||100|
|Peak Power Handling (Watts)||300|
|Top-mount Depth (Inches)||2|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5|
|Mounting Height (Inches)||0.409|
Dynamic Balance: Dynamic Balance is a proprietary Polk Audio technology using laser imaging to determine what combination of speaker materials create the least amount of resonance. Eliminating resonance in speakers results in a wide, smooth response and low distortion.
Marine Certified Woofers: Polk db Series speakers are built to withstand exposure to moisture and UV rays, so they work well in boats and cars.
Woofer Cones: Each speaker features a Dynamic Balance polymer/mica composite mineral-filled cone. The cones are stiff and lightweight for big sound and low distortion.
Butyl Rubber Surrounds: For a smoother response and improved durability, the woofers use butyl rubber surrounds.
Kapton Voice Coil Formers: The low-mass 2-Layer 1" Kapton Voice Coil formers are lightweight for high sound output. Kapton's high melting temperature ensures high power handling and excellent reliability.Pole Plate Heat Sinks: The pole plate heat sinks promote better heat dissipation for superior power handling and reliability.
Silk/Polymer Composite Tweeters: The 1" liquid-cooled, silk/polymer composite tweeters provide clear, detailed highs.
Marine Certified Tweeters: Polk db Series speakers are built to withstand exposure to moisture and UV rays, so they work well in boats and cars.
Mounting: The supplied mounting cups allow you to surface- or flush-mount the tweeters. The tweeters swivel in the flush-mount housings, allowing you to adjust them for optimum imaging.
Tweeter Mounting Dimensions:
|Surface Mount||Flush Mount|
|Depth||0.919" (screw depth)||1.045"|
2-Way Crossovers: Each crossover features a 12dB/octave, 4kHz high-pass network for the tweeter and a 12dB/octave, 4kHz low-pass network for the woofer.
Electronic Tweeter Protection Circuits: Each crossover has a built-in protection circuit that guards the tweeter against accidental damage from high power.
Crossover Connections: The crossover inputs and outputs are screw terminals.
Mounting: There are two mounting holes in the base of each crossover.
Crossover Dimensions: L=5.014", W=3.097", H=1.217"
