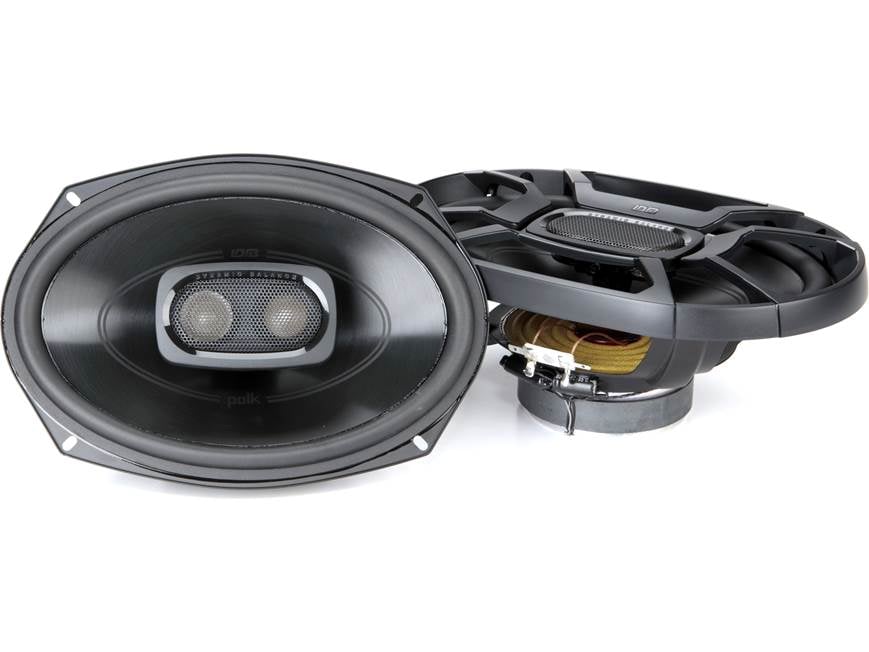

About the Polk Audio DB 692

Product highlights:
- 3-way car speakers (pair)
- marine certified — recommended for fresh water and powersports applications
- 6"x9" polypropylene woofer cone with rubber surround
- 3/4" silk dome tweeter and 1/2" supertweeter
- handles up to 150 watts RMS (450 watts peak power)
- frequency range: 30-22,000 Hz
- sensitivity: 93 dB
- top-mount depth: 3-1/4"
- grilles included
- warranty: 1 year
- MFR # AA9692
- Item # 107DB692
What's in the box:
Polk Audio DB 692 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 3-way speakers
- 2 Bottom-mount brackets
- 2 Grilles
- 2 Polk factory grille badges
- Two 12" Lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic butt connectors
- Eight 1" Stainless steel screws
- 8 Stainless steel speed clips
- Owner's manual
- Online registration information
Featured video:
More details on the Polk Audio DB 692

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 3-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 3/4" Dome | |
Tweeter Material | Silk | |
Super Tweeter Design | 1/2" Dome | |
Super Tweeter Material | Silk | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black plastic | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 93 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 30 - 22k Hz | |
Maximum RMS Wattage | 150 | |
Peak Power Handling (Watts) | 450 | |
Top-mount Depth (Inches) | 3 1/4 | |
Bottom-mount Depth (Inches) | 3 7/8 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.646 | |
Frame Width | 6.461 | |
Frame Length | 9.233 |
Product Research
Features
Dynamic Balance: Dynamic Balance is a proprietary Polk Audio technology using laser imaging to determine what combination of speaker materials create the least amount of resonance. Eliminating resonance in speakers results in a wide, smooth response and low distortion.
Marine Certification: Polk speakers are marine certified, making them a good choice for boats in fresh water, convertibles, motorcycles, ATVs, and other applications where the speaker might get wet. Because they have coated steel baskets and the terminals and crossover components are not covered, we do not recommend using them in salt water environments.
The Polk Audio DB 692 replaces these items:
- marine certified — recommended for fresh water and powersports applications
- Polymer/mica composite woofer with butyl rubber surround
- 1" liquid-cooled silk/polymer composite dome tweeter, 3/4" supertweeter
- polymer composite woofer with butyl rubber
- 1" liquid-cooled silk/polymer composite dome tweeter, 3/4" aluminum dome supertweeter
- frequency response: 35-22,000 Hz
- Polymer/mica composite woofer with butyl rubber surround
- 1" liquid-cooled silk/polymer composite dome tweeter, 3/4" supertweeter
- power range: 10-100 watts RMS (300 watts peak power)
