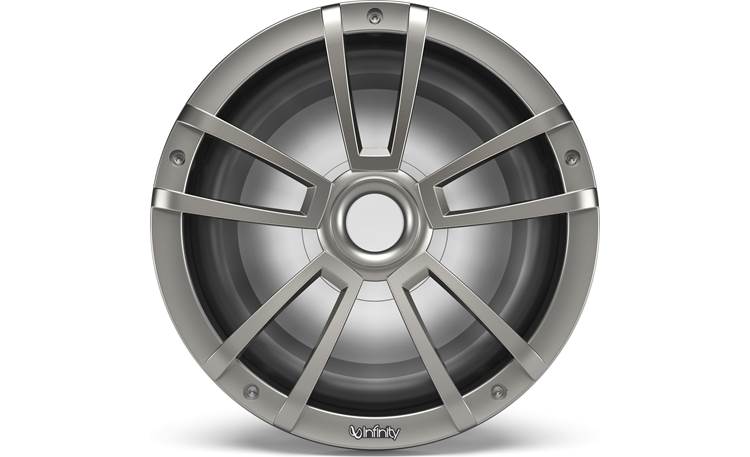

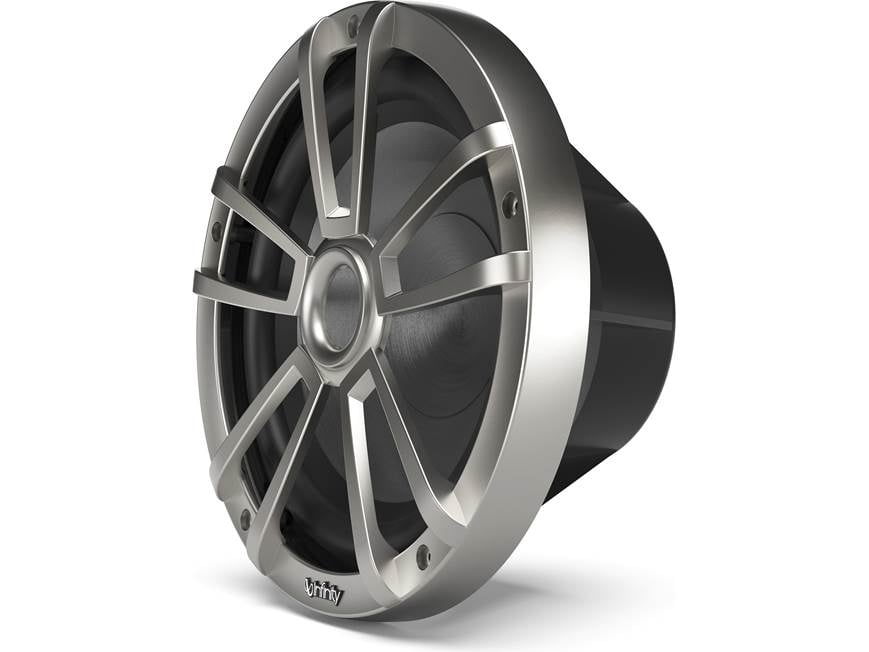

About the Infinity 1022ML

Product highlights:
- 10" 4-ohm marine subwoofer
- polypropylene cone with rubber surround
- multi-color RGB LED lights
- one-piece cast polymer basket
- IPX5 rated for water resistance
- available in Titanium or White
Specs:
- power handling: 250 watts RMS (750 watts peak power)
- sensitivity: 89 dB
- frequency response: 25-500 Hz
- impedance: 4 ohms
- mounting depth: 4.38"
- cutout diameter: 8.95"
- warranty: 1 year
- MFR # 1022MLT
- Item # 1081022MLT
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Infinity 1022ML owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One marine subwoofer with fixed Titanium (color) polymer grille
- 6" LED Harness
- Five 1-1/2" Stainless-steel screws (3mm Allen head)
- 5 Stainless-steel speed clips
- Adhesive backed foam gasket
- Installation manual
- Mounting template on box
More details on the Infinity 1022ML

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene | |
Surround Material | Rubber | |
Basket Material | Polymer | |
Grille | Titanium (color) polymer, Fixe | |
Free-Air | Yes | |
Dual Voice Coil | No | |
Sensitivity |
89 dB at 2.83 volts | |
Frequency Response | 25 - 500 Hz | |
Max RMS Power Handling | 250 | |
Peak Power Handling (Watts) | 750 | |
Top Mount Depth (inches) | 4 7/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 | |
Frame Width | 10.663 | |
Frame Length | 10.663 | |
Vas (liters) | 43.85 | |
Fs (Hz) | 35.6 | |
Qts | 0.52 | |
Xmax (millimeters) | 0 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 1.5 | |
Maximum Sealed Box Volume (cubic feet) | 1.75 | |
Ideal Ported Box Volume (cubic feet) | 2 | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | 3.75 | |
Port length (inches) | 9.25 |
Product Research
Features
LED Illumination: Integrated into each grille is a red/green/blue LED assembly, to create a glow on the woofer cone. A 12 volt power supply is needed to turn the LEDs on; depending on what combination of LED wires is connected, they light red, green, blue, yellow, purple, aquamarine, or white. A 4-wire pigtail is provided for supplying power to the built-in LEDs.
