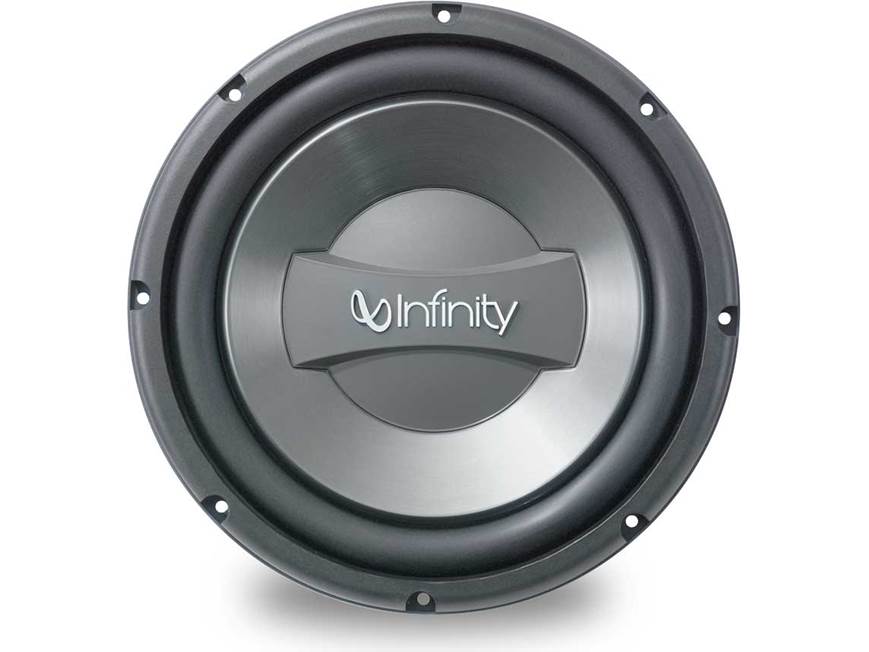

Infinity Reference 1040w 10" 4-ohm subwoofer

Item # 1081040W

Infinity Reference subwoofers add a strong jolt of bass to your system at an affordable price.

Infinity Reference subwoofers add a strong jolt of bass to your system at an affordable price.

Item # 1081040W

Shop all Infinity Component Subwoofers

About the Infinity Reference 1040w

Ken Nail
Infinity Reference subwoofers add a strong jolt of bass to your system at an affordable price. Their solid construction and innovative basket design provide extended low-frequency response and excellent power handling.

Got enough juice? Get an amp for your new sub Infinity Reference subwoofers add a strong jolt of bass to your system at an affordable price. Their solid construction and innovative basket design provide extended low-frequency response and excellent power handling.

The Reference 1040w 10" subwoofer features a polypropylene cone suspended in a large-roll rubber surround that absorbs distorting vibrations for cleaner sound. A progressive spider design applies more force to the cone as it travels to its limit, for superb control in extreme conditions. The vented polepiece cools the motor structure for increased reliability, while the aggressively-styled basket minimizes depth while allowing plenty of woofer excursion.


Priced per speaker

READ LESS

Product highlights:

  • 10" 4-ohm component subwoofer
  • innovative basket design
  • polypropylene woofer cone with large-roll rubber surround
  • frequency response: 25-400 Hz
  • power range: 60-250 watts RMS (1,000 watts peak power)
  • sensitivity: 91 dB
  • progressive spider design
  • top-mount depth: 4-1/2"
  • sealed box volume: .75 cu. ft.
  • ported box volume: 1.75 cu. ft.
  • Recommended Q-Logic Box Type: Type 1
  • warranty: 1 year
  • MFR # 1040W

What's in the box:

  • One 10" woofer
  • 1 Self-adhesive foam gasket
  • Instructions
  • Technical Data sheet
  • Warranty card
  • One 8" x 2-1/2" Infinity sticker

Customer reviews for Infinity Reference 1040w

Loading reviews...

Average review:

5.0 out of 5 stars
28 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

Product Research

Features
Enclosure Compatibility

Features

High-efficiency Polypropylene Woofer Cone: This lightweight and popular material is used to ensure maximum woofer efficiency. The benefit is high output with modest amplifier power.

Large-roll Rubber Surround: The large-roll rubber surround provides optimum cone-edge suspension and absorbs distortion that may travel up the cone edge, ensuring clean, tight bass.

Proprietary Basket: The unique basket design delivers a decrease in mounting depth while maximizing woofer excursion.

Vented Polepiece: The vented polepiece provides additional cooling of the motor structure. The subwoofer's thermal capabilities are augmented, increasing power handling.

Progressive Spider: The subwoofer uses a progressive spider, which provides better control at excursion limits than more commonly used linear spiders. The result is reduced distortion at high output levels.

Gold-plated Binding Posts: The gold-plated binding posts will accept pin connectors, spade connectors, banana plugs, and bare wire.

Note: The binding posts are positioned too far apart to accept dual banana plugs.

Enclosure Compatibility

Recommended Sealed Box Volume: Infinity recommends a sealed enclosure with an internal volume of 0.75 cu/ft.

Recommended Ported Box Volume: Infinity recommends a ported enclosure with an internal volume of 1.75 cu/ft with one 3" diameter x 9" long port.

Recommended Sealed Bandpass Box Volume: Infinity recommends a sealed bandpass enclosure with an internal volume of 2.0 cu/ft. The enclosure has a sealed chamber volume of 1.0 cu/ft and a ported chamber volume of 1.0 cu/ft with one 4" diameter x 7.875" long port.
