Features

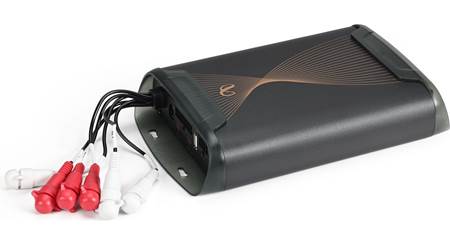

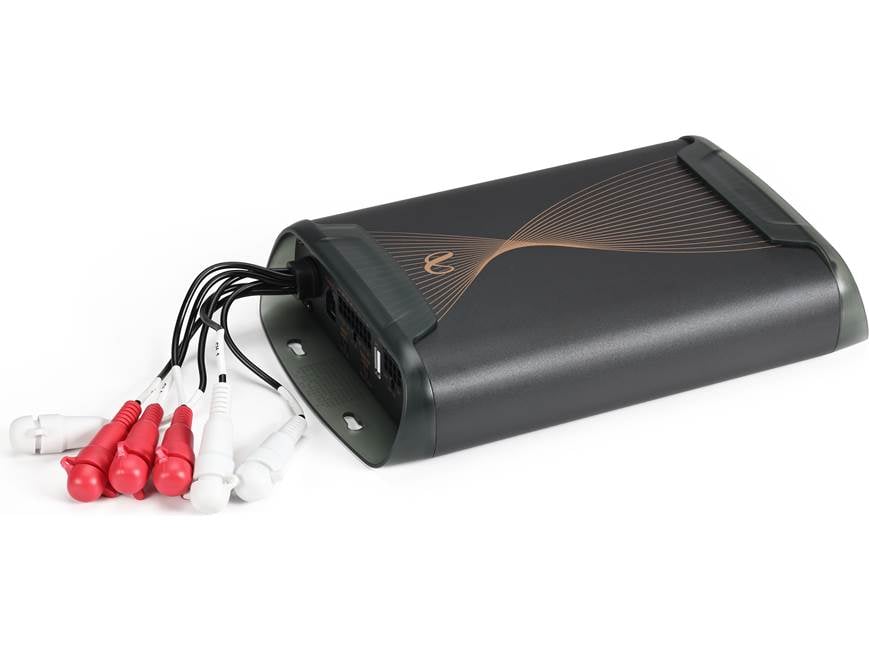

Overview: The Infinity DSP6840 amplifier/audio processor lets you fine-tune your vehicle's audio system, with an easy-to-use interface and numerous tuning capabilities. It features six input channels, accepting pre-amp or speaker level signals, that can be summed and assigned to any of the processor's eight powered output channels. Each channel has its own 31-band parametric or graphic EQ, high and low pass crossovers with selectable slopes, and time delay, all configured using your connected Windows PC.

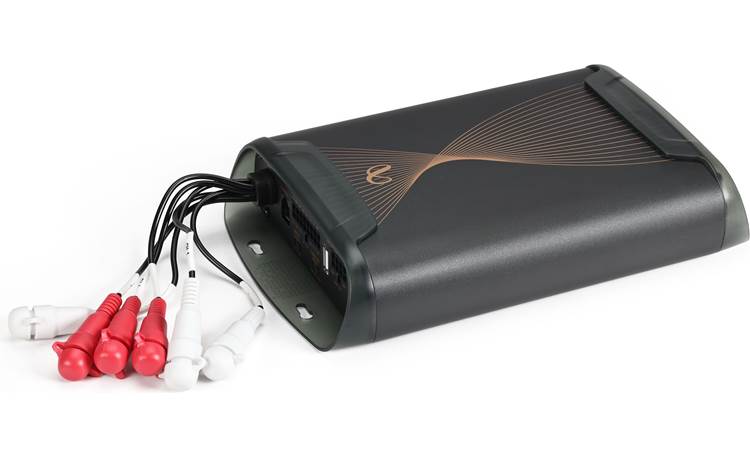

Inputs: The amp has six attached RCA jacks on 6" leads for use with aftermarket radio pre-amp outputs. The RCA inputs can also accept speaker-level signals from factory radios or aftermarket radios with no pre-amp outputs. Six speaker wire-to-RCA adapters are included for connecting high-level inputs. The software-based configuration lets you sum together channels from any of the inputs and assign them to any of the eight powered output channels. Input signals can range from 0.680 to 15 volts.

Outputs: The DSP amplifier features eight powered speaker outputs on a removable 8" harness. Each speaker output can provide the following power (@ 14.4V, <1% THD+N):

• 2-Ohms: 60 W x 8
• 4-Ohms: 40 W x 8

Remote Bass Level Control: A wired remote bass level control is included that lets you adjust the low-frequency output level of channels 7&8 from the driver's seat. The level control has an adjustment range of -30 to +6 dB, and includes a 16.5' attachment cord that plugs into the amp chassis.

DSP: Configuration of the DSP software is done using a Windows PC (MAC is not supported) connected to the amplifier/processor using the included USB cable. The tuning software is downloaded from Infinity's website. Configuration parameters can all be accessed from one main screen, and include the following options:

• Speaker Locations: designate the type of speaker (woofer, midrange, tweeter, full range) and location (left, right, front, rear, center, sub) for each output channel; a graphic display shows each channel's location
• Input Mixer: any of the six input channels can be assigned to any of the eight output channels; multiple input channels can be summed to the same output channel, allowing a full-range speaker to get its signal from separate tweeter and woofer signals in a factory system
• Linking Channels: each pair of output channels (1/2, 3/4, 5/6, 7/8) can be linked together, so controls can be applied to both simultaneously
• Channel Volume: each channel's output level is independently adjustable; -60 to +6 dB in ½ dB steps
• Equalizer: each output channel has an independent 31-band graphic or parametric EQ; the parametric EQ lets you select each band's center frequency (20-20,000 Hz), adjust the Gain for that frequency (-15 dB to +10 dB), and set the Q or "width" of the selected frequency (0.5 to 9); the graphic EQ has 31 fixed frequencies, with only gain adjustment (-14.9 dB to +9.9 dB), frequencies are 20 Hz, 25 Hz, 31 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz, 100 Hz, 125 Hz, 160 Hz, 200 Hz, 250 Hz, 315 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 1.2 kHz, 1.6 kHz, 2 kHz, 2.5 kHz, 3.1 kHz, 4 kHz, 5 kHz, 6.3 kHz, 8 kHz, 10 kHz, 12.5 kHz, 16 kHz, 20 kHz
• Crossover: each channel has independent high-pass and low-pass filters; crossover points can be set to any frequency (20-20,000 Hz) and the slope can be 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave (off bypasses the crossover)
• Time Delay: the delay for each output channel is adjusted independently; the units are inches (0-163 in 1" steps), centimeters (0-415 in 1cm steps), or milliseconds (0-12 in 0.01ms steps); the result is all audio signals arriving at the desired focal point at the same time
• Phase: the phase of each channel can be reversed to correct any inadvertent phase cancellation caused by vehicle acoustics (0°/180°)
• Clipping Indicators: each channel has a clip indicator; lights if 10% or higher distortion is present
• Presets: ten DSP configurations can be stored and recalled via one of the ten preset buttons

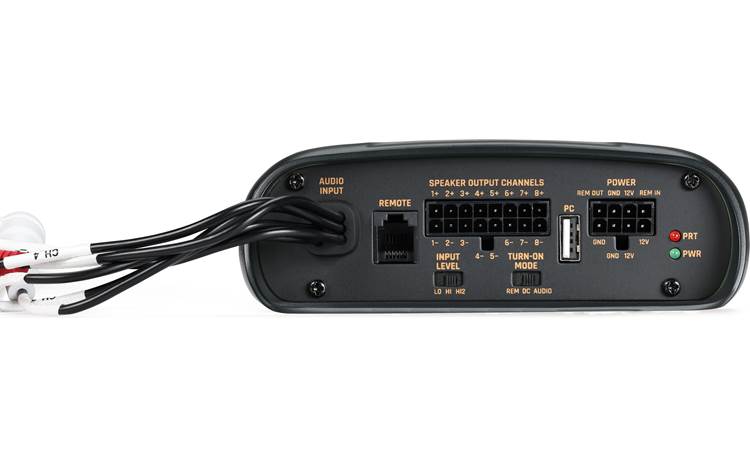

Input Level: A 2-positon switch on the end of the amp specifies the input signal level, Low for pre-amp level signals and High for speaker level signals.

Turn-On Mode: A 3- position switch determines how the amplifier is turned on:

• REM: If pre-amp connections are used, the remote in wire in the harness is connected to the radio's remote output. A remote output is also provided for activating additional equipment.
• DC: This mode activates the amp when it senses the ignition has been turned on.
• Audio: Activates the amp when it detects an audio signal on the inputs.

Protection Circuit: A red LED will light if a problem is detected, including short-circuit on a speaker output, over/under voltage, excessive heat, or amp output circuit failure.

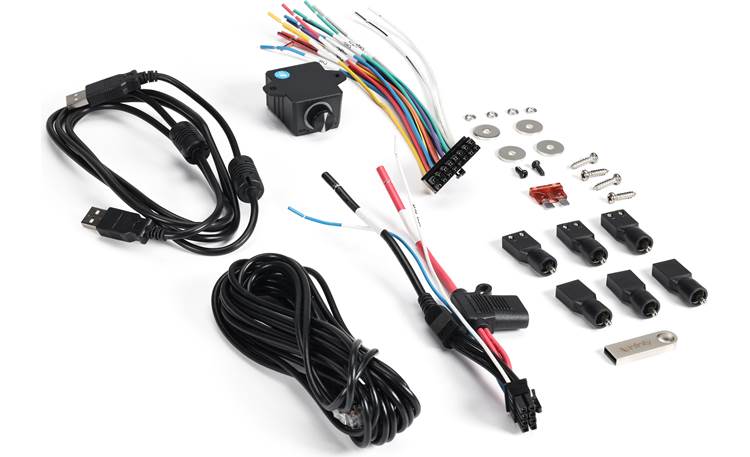

Power/Ground Wiring: The DSP6840 includes a removable 8" wiring harness with 10-gauge connections for Power (with in-line 40A ATO fuse) and Ground. The harness also includes 18-gauge wire connections for Remote In and Remote Out.

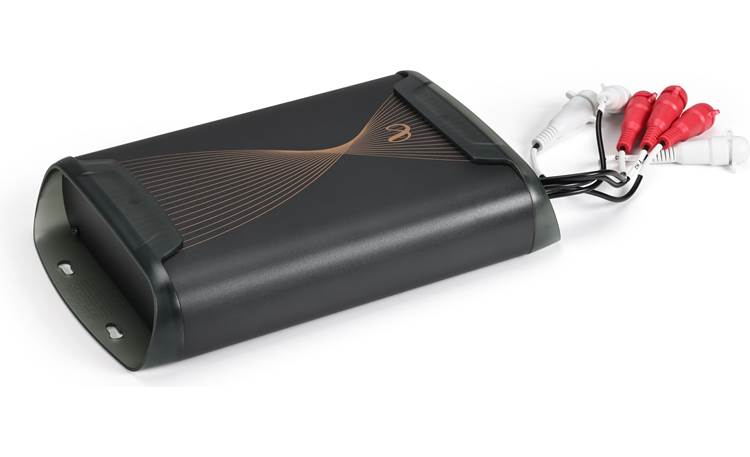

Mounting: The DSP6840 has mounting tabs with 4 key-hole slots for attaching the amp to a flat surface. Mounting hardware is provided.

Specifications:

• RMS Power Output:
  • 4-Ohms: 40 watts x 8
  • 2-Ohms: 60 watts x 8
• Amplifier Class: D
• Operating Voltage: 8-16 volts
• Frequency Response: 10 Hz - 22 kHz (-3 dB)
• Signal-to-Noise Ratio: >90 dB
• Signal-to-Noise Ratio (CEA-2006): 75 dB
• THD+N (@ 4-Ohms): <1%
• Input Sensitivity:
  • Low Level: 680 mV - 6 V
  • High Level: 1.6 V - 15 V
• Fuse Rating: 40-amp (ATO)
• Recommended Power & Ground Wire: 8-gauge (not included)

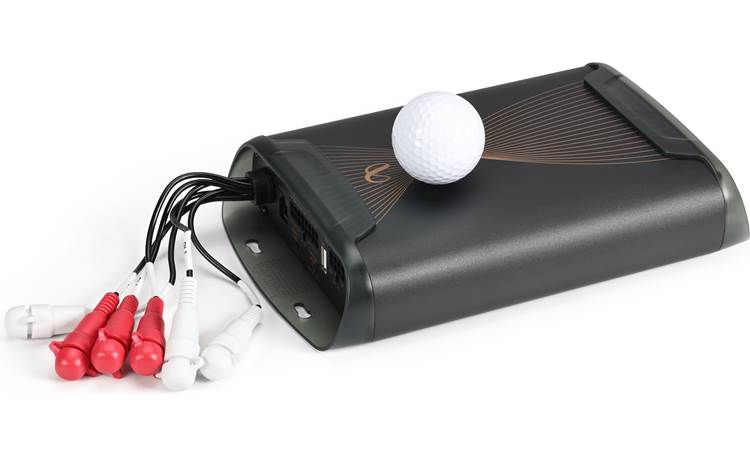

• Dimensions:
  • Width: 5.67"
  • Height: 1.95"
  • Depth: 9.35"
• Weight: 2.2 lbs.
