About the Infinity Perfect NTCKIT
Product highlights:

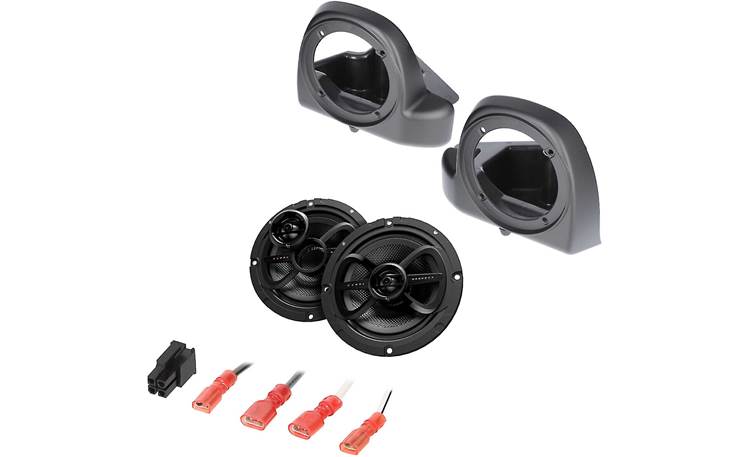

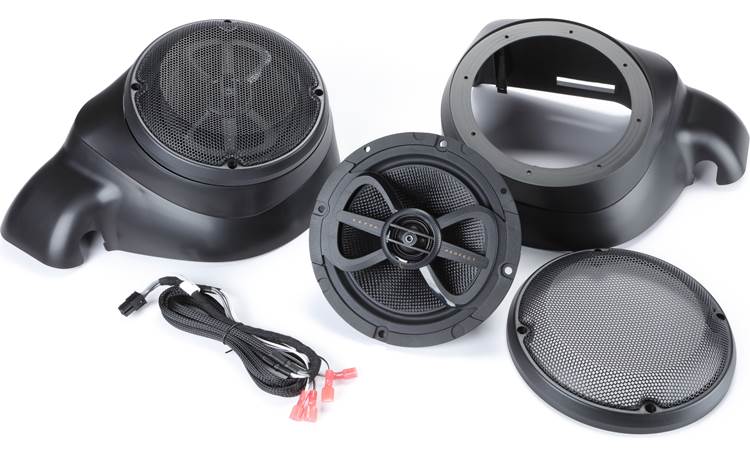

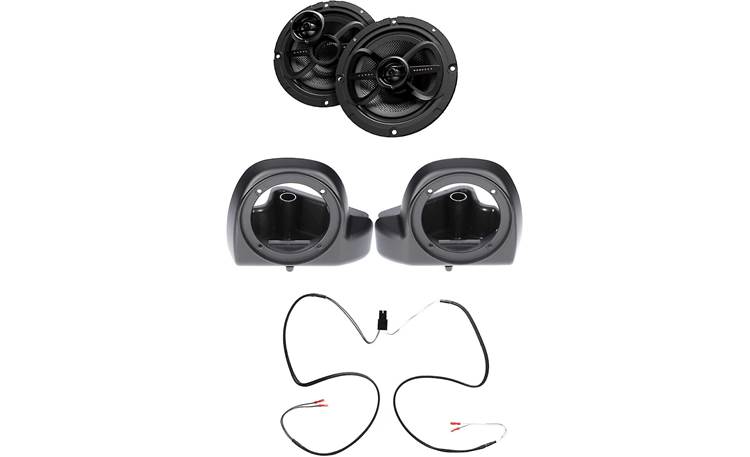

- component speaker system includes two 6-1/2" speakers, fairing enclosures, and wiring harnesses
- designed for select 2014-up Harley-Davidson Road Glide and Street Glide motorcycles (non-Twin-Cooled engines)
- plug and play design with no splicing required
- designed to fit your Harley's fairings
- 6-1/2" Plus One basalt fiber woofer cone with hi-roll rubber surround
- edge-driven polyphenylene sulfide dome tweeter
- removable tweeter works in component and coaxial configurations
- handles up to 80 watts RMS (240 watts peak power)
- frequency response: 60-20,000 Hz
- sensitivity: 95 dB at 2.83 volts
- three sets of grilles included
- warranty: 3 years
- MFR # INFKPNTCKIT
- Item # 108KPNTCKI
What's in the box:
Infinity Perfect NTCKIT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- This speaker package includes 3 individually boxed items:

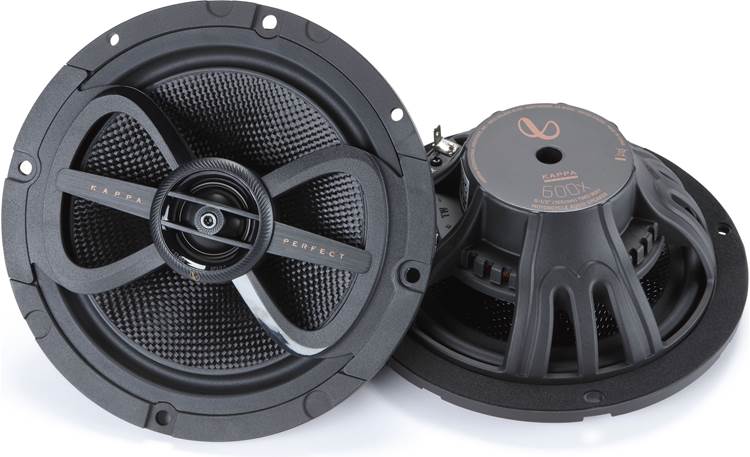

- Infinity Kappa Perfect 600X Speakers:
- Two 2-way speakers
- Two 16" Lengths of wire with in-line crossovers
- 2 Surface mount tweeter housings
- 2 Tweeter opening covers
- 2 Street Glide grilles
- 2 Road Glide grilles
- 2 Tour-Pak grilles
- Tweeter removal tool
- Eight 5/8" Screws
- Four 5/8" Flat head screws
- Installation instructions
- Template on box
- 3 Infinity logo badges
- Metra BC-HDLFPP Speaker Pod Kit:
- 2 Speaker enclosures
- 2 Enclosure trays
- Four 1" screws
- Installation instructions
- Saddle Tramp HM-9722 Harness:
- 46" Speaker Y-harness
More details on the Infinity Perfect NTCKIT
Product Research
Features
Overview: The Infinity Perfect NTCKIT 2-Speaker Kit (INFKPNTCKIT) is designed specifically for mounting in select 2014-2019 Harley-Davidson Electra Glide Ultra Classic and 2015-2016 Electra Glide Ultra Classic Low motorcycles with non-twin-cooled engines. The speaker kit includes a pair of Infinity Kappa Perfect 600X 6.5" speakers, lower fairing ported speaker enclosures, and a vehicle-specific Saddle Tramp wiring harness, that lets you plug directly into the factory wiring with no splicing.
Compatibility: The Infinity Perfect NTCKIT 2-speaker kit is designed specifically to mount in the lower fairing of 2014-2019 Harley-Davidson Electra Glide Ultra Classic (FLHTCU) and 2015-2016 Electra Glide Ultra Classic Low (FLHTCUL) motorcycles without a twin-cooled engine.
Grilles: The Kappa Perfect 600X speakers include three sets of grilles to fit multiple Harley-Davidson applications, fairing and Tour-Pak locations.
Neodymium Magnets: To reduce their weight, and not raise the motorcycle's center of gravity, both the woofers and tweeters use neodymium magnets.
Tweeter Mounting Options: Each tweeter is bridge mounted so there's no opening in the center of the woofer cone, making the speaker more weather resistant. The tweeters can also be removed and surface mounted using the included adapters.
Tweeter Dimensions:
| Surface Mount | |
|---|---|
| Mounting Height | 0.915" |
| Mounting Depth | screw depth |
| Frame Diameter | 1.866" |
Note: Mounting the tweeters separately from the Kappa Perfect 600X woofers will require drilling and modifications to your motorcycle; no modifications are necessary if the tweeters are left bridge-mounted to the woofer.
Crossover: The crossovers are wired in-line between the factory harnesses and the speakers. The 8" input wires mate to the included Saddle Tramp Speaker Y-Harness that interfaces the factory wiring, so cutting the factory wiring is not necessary. The 8" woofer and tweeter outputs plug into the terminals on the speaker frames. When mounting the tweeters separately, the crossovers' tweeter output wires plug into the 8" wires attached to the surface mount housings. The crossovers are approximately 7/8" wide x 1/2" tall x 1-3/4" long.
