About the Infinity Primus 503F

Product highlights:

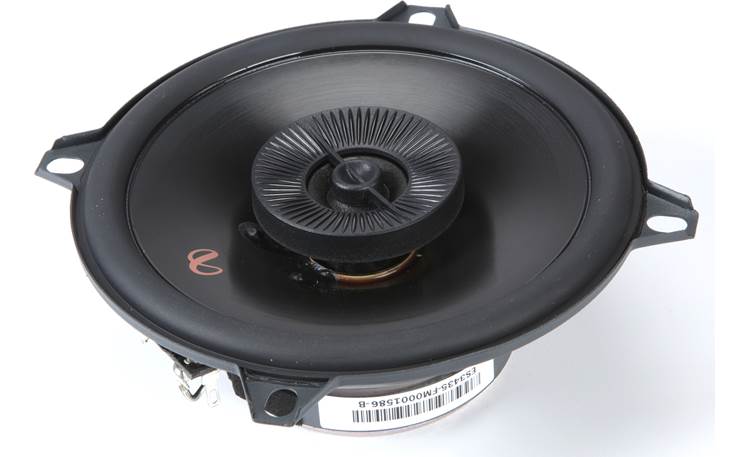

- 5-1/4" 2-way car speakers
- Plus One+ polypropylene woofer cone with hi-roll rubber surround
- 3/4" edge-driven silk dome tweeter
- 3-ohm impedance for extra power (compatible with virtually all factory or aftermarket car stereos)
- handles up to 40 watts RMS (120 watts peak power)
- frequency response: 75-20,000 Hz
- sensitivity: 91 dB at 2.83 volts
- grilles not included
- warranty: 1 year
- MFR # INFSPKPR503F
- Item # 108P503F
- California customers: Please click here for your Proposition 65 WARNING.

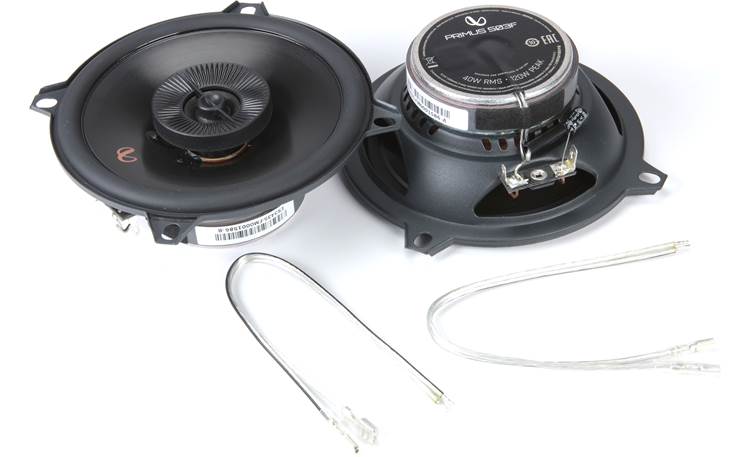

What's in the box:
Infinity Primus 503F owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers

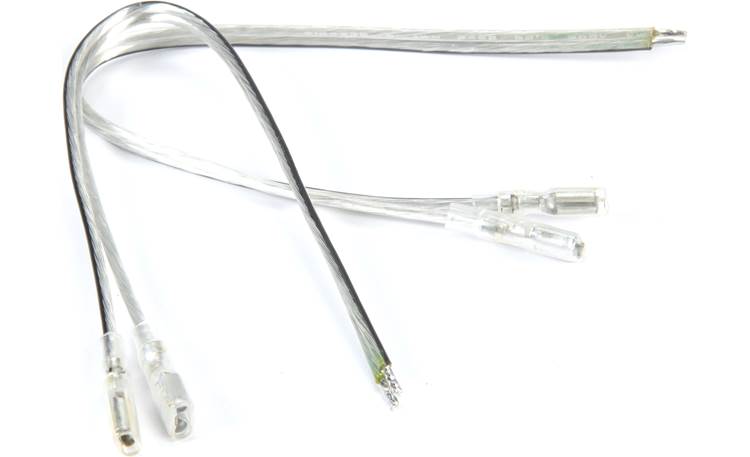

- Two 9" Lengths of speaker wire (each has female quick-slides on one end and tinned wire on the other)
- Eight 1" Screws
- 8 Speed clips
- 2 Adhesive backed foam gaskets
- Template and specs on box
More details on the Infinity Primus 503F

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 2-way | |
Woofer Design | Plus One Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Silk | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 3 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 91 | |
Frequency Response | 75 - 20k Hz | |
Maximum RMS Wattage | 40 | |
Peak Power Handling (Watts) | 120 | |
Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 4 7/16 | |
Mounting Height (Inches) | 0.293 | |
Frame Width | 5.083 | |
Frame Length | 5.083 |
Product Research
Features
Plus One Woofer Cones: The Plus One speaker cones offer more surface area than many other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.

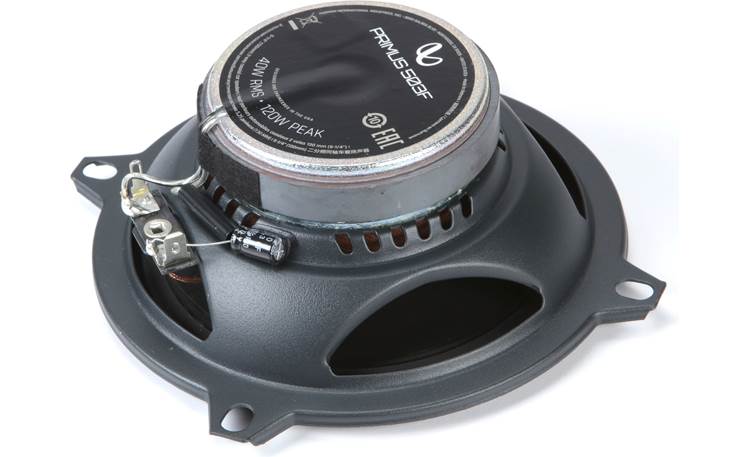

Voice Coil: The Primus Series speakers feature 3-ohm voice coils to compensate for the high in-line resistance of small gauge factory wiring. They extract every watt from the factory receiver, increasing overall system output and efficiency (relative to 4-ohm speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers capable of powering a lower impedance load.
The Infinity Primus 503F replaces these items:
- Plus One+ polypropylene woofer cone with hi-roll rubber surround
- edge-driven, textile dome tweeter
- handles up to 40 watts RMS (120 watts peak power)
