About the Infinity Primus 603CF
Product highlights:

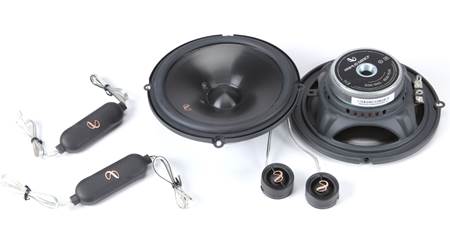

- component speaker system includes 2 woofers, 2 tweeters, and 2 external crossovers

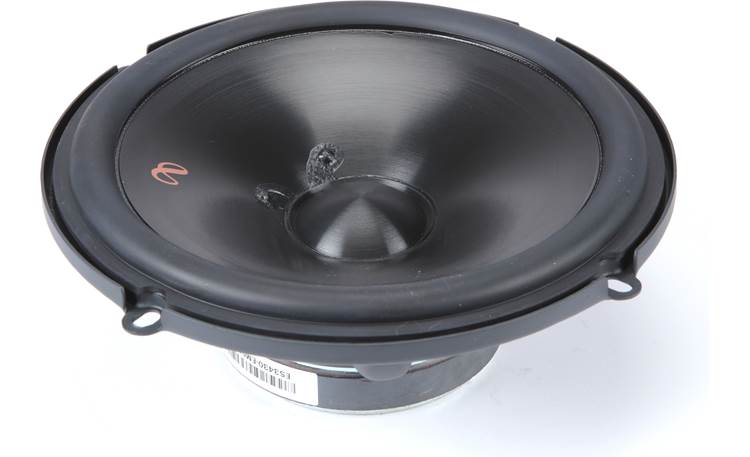

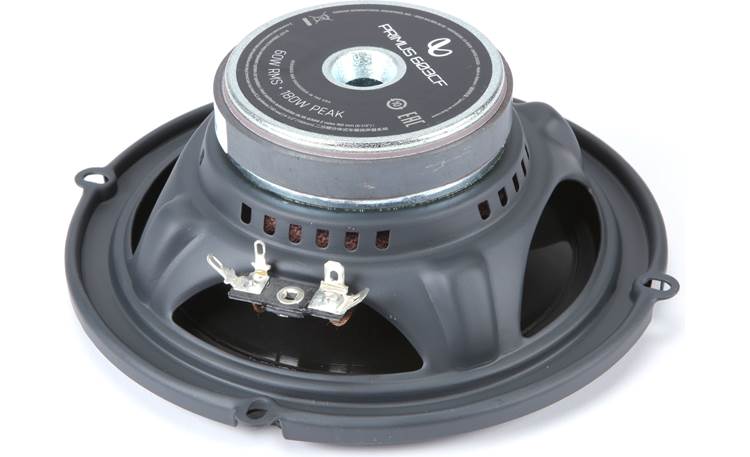

- 6-1/2" Plus One+ polypropylene woofer cone with hi-roll rubber surround

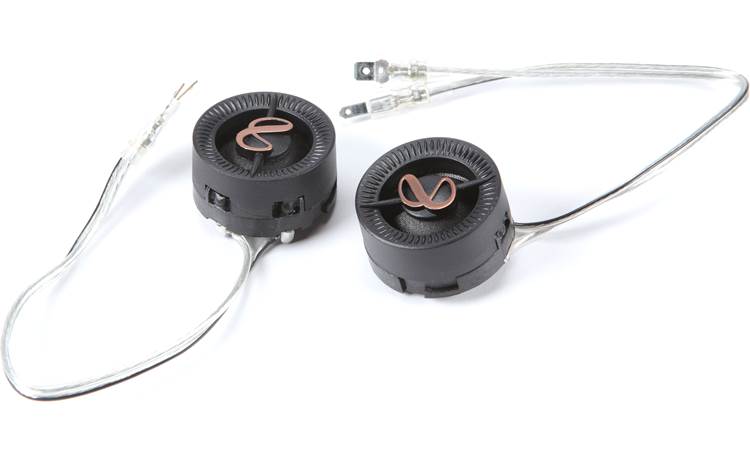

- 3/4" edge-driven silk dome tweeter
- 3-ohm impedance for extra power (compatible with virtually all factory or aftermarket car stereos)
- handles up to 60 watts RMS (180 watts peak power)
- frequency response: 55-20,000 Hz
- sensitivity: 92 dB at 2.83 volts
- grilles not included
- warranty: 1 year
- MFR # INFSPKPR603CF
- Item # 108P603CF
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Infinity Primus 603CF owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Woofers
- 2 Tweeters (each has attached 6" speaker leads with male quick-slides)
- Two 18" Tweeter wires with in-line crossovers
- 2 Threaded tweeter flush-mount cups
- 2 Plastic locking nuts
- 2 Surface-mount cups
- 2 Starfish tweeter mounts
- Eight 1" Pan head screws
- Six 5/8" Flat head screws
- 8 Speed clips
- 2 Adhesive backed foam gaskets
- Template and specs on box
More details on the Infinity Primus 603CF
Researched by Crutchfield's Pat M.
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Plus One Cone | |
| Woofer Material | Polypropylene | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Edge-Driven Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 3 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 92 | |
| Frequency Response | 55 - 20k Hz | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 180 | |
| Top-mount Depth (Inches) | 1 15/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 1/16 | |
| Mounting Height (Inches) | 0.5 | |
| Frame Width | 6.194 | |
| Frame Length | 6.194 | |
The Infinity Primus 603CF replaces these items:
Product Research
Features
Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a different basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
Mounting: Infinity markets these speakers as having a 6½" woofer, and they will fit in standard 6½" speaker openings (approximately 5" diameter), but they do not use the standard 6½" speaker bolt pattern. The woofers are also easily installed in many standard 4-hole 6¾" applications with no modification. Please enter your vehicle information to confirm fit.
Tweeter Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:
- I-Mount Mounting System: The tweeters can be surface or flush mounted:
- Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
- Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
- Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
- Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
- Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
- Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just over 1/3 inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.
Mounting Dimensions:
| I-Mount Surface Mount | I-Mount Flush Mount | Starfish Bottom Mount | Starfish Surface Mount | Starfish Flush Mount | |
|---|---|---|---|---|---|
| Mounting Height | 0.815" | 0.355" | 0.0" | 0.82" | 0.334" |
| Depth | 0.5" (screw depth) | 0.615" | 0.95" | 0.5" (screw depth) | 0.47" |
| Frame Diameter | 1.48" | 1.645" | 3" | 2.46" | 2.6" |
| Cutout Diameter | N/A | 1.45" | N/A | N/A | 1.512" |
Tweeter Crossovers: The included 18" tweeter wires have in-line 12 dB/octave high pass crossovers with a crossover point of 5 kHz. The tweeter ends of the wires have quick-slide terminals that easily connect to the wires attached to the tweeters. The input end of each wire has tinned bare wire.
Crossover Dimensions:
- Length: 3½"
- Width: 1"
- Height: ¾"
Impedance: The Primus Series speakers feature 3Ω voice coils to compensate for the high in-line resistance of small gauge factory wiring and extract every watt from the factory receiver, increasing overall system output and efficiency (relative to 4Ω speakers). The speakers also benefit from increased power when you upgrade the wire and add after-market amplifiers capable of powering a lower impedance load.

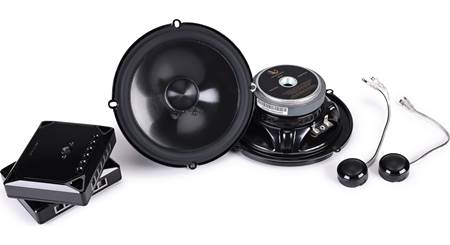

The Infinity Primus 603CF replaces these items:
- 6-1/2" Plus One+ polypropylene woofer cone with hi-roll rubber surround
- edge-driven, textile dome tweeter
- handles up to 80 watts RMS (240 watts peak power)
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Q
I have a 2021 Nissan Sentra. It doesnâ??t have the Bose system but do you know if it has a factory amp? Also, Would the tweeters fit in the front pillars?
ryan Jul 04, 2024
1 answer
A
I would be happy to help, Ryan. According to our information both the 7" and 8" radio options that are non-Bose do not feature an external factory amplifier. The Infinity Primus 603CF's tweeters physically fit into your vehicle's existing tweeter locations but do require some work to mount them. You'll need to use backstraps, hot glue, or silicone to secure them.
bo Jul 05, 2024 (Staff)
Q
2004 Acura TSX - replacing the front door speakers and would like to use component speakers. Can I rely on the TSX factory amp to drive the new Infinity tweeters. Seems wrong to use the Infinity crossovers when only low frequencies are delivered to the door speakers? Dave C.
david wayne Feb 23, 2024
1 answer
A
Greetings Dave. Thank you for your question. The factory tweeters have a direct output from the factory amp. The factory amp is also the crossover, or filter for the factory tweeters. What that is filtered at, who knows. You don't have to use the crossovers for the door woofers, but I recommend using them as the filter for the new tweeters.
thomas Feb 23, 2024 (Staff)
Q
According to the manual, I wired it according to setup option 1 and received a lot of distortion even with low gain. Is this wiring it "parallel" at 2ohms and overpowering my speakers causing the distortion?
p Dec 12, 2023
1 answer
A
Wiring according to the install instructions should not cause distortion in most setups, P.W. We provide lifetime Technical Support with every order, so if you have your order number handy, please contact our Technical Support team and we can help. Setup option 1 would show a 3-ohm load and is usually fine for use with most radios and amplifiers. Make sure to use the included in-line crossovers on the tweeters as pictured in setup option #1. I hope this helps!
bo Dec 12, 2023 (Staff)
Q
I'm new to buying speakers and unfamiliar with this website. I've been searching around on this product specifically and haven't been able to see if it includes just front dash and front door speakers, or also includes rear speakers. Also, how do these sound? Are they better than the factory speakers? I'm sorry if these questions have obvious answers but I can't find them. Thanks!
matt May 15, 2023
1 answer
A
Greetings Matt, and thank you for your question. This package would cover two woofers, and two tweeters. If your factory tweeters are in the dash, these would replace them, but they are not a factory fitting replacement. Sometimes you have to fabricate a mounting bracket, or use hot glue. The 6.5 inch woofers then would go in the front doors, and in most cases need an adapter bracket as well, but for most vehicles we have those and include them free with the speaker purchase. This package would not have rear speakers included, but we should have a match to fit your vehicle as well. Feel free to phone one of our advisors at 800-324-9695 for any questions you may have.
thomas May 16, 2023 (Staff)
Loading...
Loading articles...
A definite improvement vs the factory component speakers from my 2000 Tahoe. A little more bass coming from the front now. Clear highs. The factory head unit is now probably the limiting factor.
Tony from Kewaunee, WI
