Infinity Reference 103W Reference Series 10" component subwoofer with switchable impedance (2 or 4 ohms)

Name: Infinity Reference 103W
Brand: Infinity
SKU: 108R103W
Price: 174.95 USD
Availability: InStock
Rating: 5.0 (2 reviews)

Item # 108R103W

This Reference 10" sub gives you easy access to the two most useful impedances for system-building: 2 or 4 ohms.

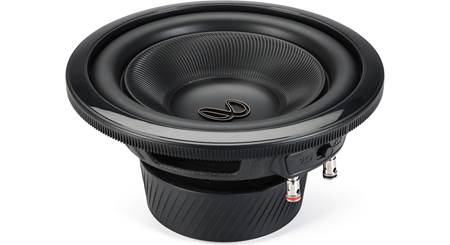

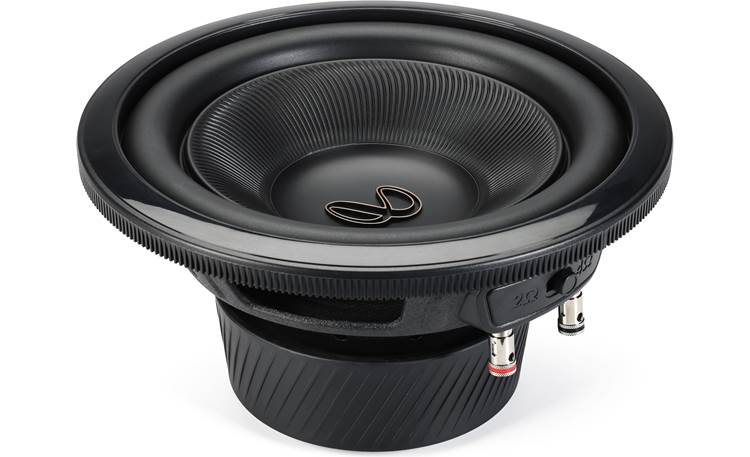

Front

1/6

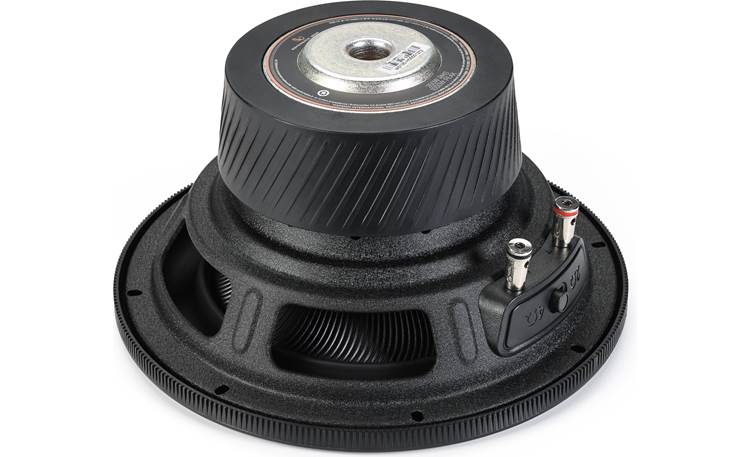

Back

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

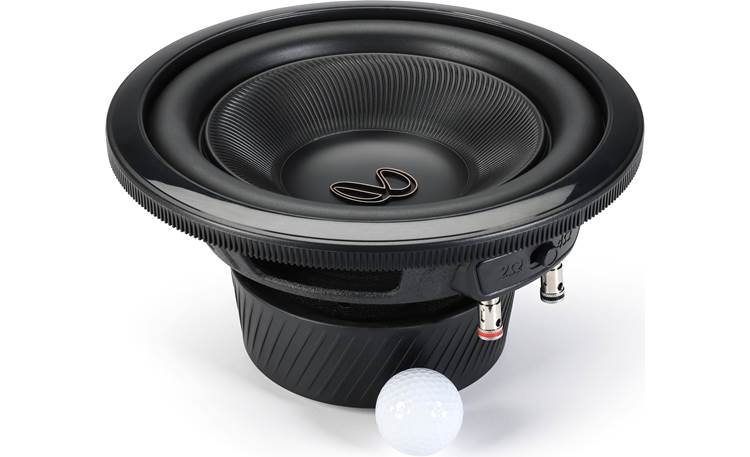

Golf ball shown for scale

Infinity Reference 103W Only at Crutchfield

Infinity Reference 103W Golf ball shown for scale

This Reference 10" sub gives you easy access to the two most useful impedances for system-building: 2 or 4 ohms.

Item # 108R103W

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$174.95 each

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Charlie Pastorfield

Switchable impedance made easier

Infinity designed the Reference Series 103W 10" subwoofer to fit into your audio system as it grows. You can select either 2- or 4-ohm impedance, so you're always covered if you add more Infinity subs in the future. And, with frequency response down to 35 Hz, you'll definitely hear the low frequencies you've been missing.

Standout design

The 103W features a polypropylene cone with a unique radial pattern cone that keeps its shape at high output levels, plus a high-roll rubber surround that allows maximum excursion while keeping the cone stable. The vented basket optimizes airflow to keep the 2" voice coil cool. A gloss black trim ring press-fits into place and conceals the mounting hardware for a clean, professional look. This sub will work in ported, bandpass, or sealed boxes, and can be used in free-air applications.

Reliability testing

Infinity tests every model under extreme conditions that would break lesser speakers. They freeze them, bake them, shake them, blast them with ultraviolet light, and drive them at full power for days to make sure your audio investment lasts for years. Get ready for big bass that will stay with you.

Product highlights:

10" component subwoofer with switchable impedance
polypropylene cone with high-roll rubber surround
power handling: 350 watts RMS (1050 watts peak)
impedance: 2 or 4 ohms
frequency response: 35-500 Hz
sensitivity: 83 dB
top-mount depth: 5-1/16"
cutout diameter: 9"
grille not included
warranty: 1 year
MFR # INFSUBRF103W
Item # 108R103W
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Infinity Reference 103W owner's manual

One 10" Subwoofer (with impedance switch)
Plastic trim ring (installed)
Adhesive backed foam tape/gasket
Owner's manual (English/ French/ Spanish/ Chinese/ Indonesian/ Korean)

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	10-inch
Impedance (Ohms)	2, 4
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Steel
Grille	None included
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	83 dB at 1 watt
Frequency Response	35 - 500 Hz
Max RMS Power Handling	350
Peak Power Handling (Watts)	1050
Top Mount Depth (inches)	5 1/8
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9 1/16
Frame Width	10.55
Frame Length	10.55
Vas (liters)	24.6209
Fs (Hz)	40.1
Qts	0.826
Xmax (millimeters)	6
Parts Warranty	1 Year
Labor Warranty	1 Year
Box Requirements
Ideal Sealed Box Volume (cubic feet)	1.02
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	1.02
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	2.76
Port length (inches)	7.09

Product Research

Features

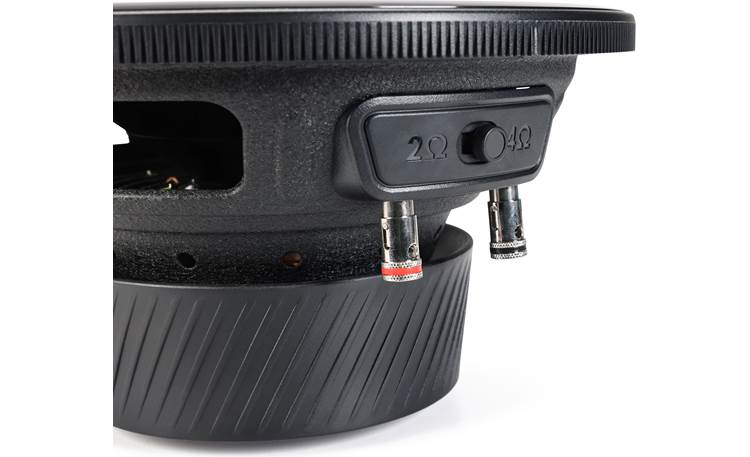

Selectable Smart Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 350 watts RMS/1050 watts peak.

Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Infinity recommends a sealed enclosure of 1.02 ft³.

Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Infinity recommends a ported enclosure of 1.02 ft³ with one 2.76" diameter x 7.09" long port, yielding a tuning frequency of 40 Hz.

Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by half (to 175 watts RMS).

Band-Pass: Infinity also recommends a prefabricated band-pass enclosure, but no volume specifications are listed in the manual. Band-pass enclosures often provide the most output available from any amplifier and subwoofer combination, but at the expense of sonic accuracy.

Thiele-Small Parameters: Some of the parameters change based on the impedance setting:

	2Ω	4Ω
Re (Ω)	2.13	4.44
Le (mH)	0.767	0.835
Sd (cm²)	339.79	339.79
Bl (Tm)	7.668	10.622
Vas (liters)	24.6209	24.2376
Cms (mm/N)	0.151	0.148
Mms (g)	104.636	99.825
Fs (Hz)	40.1	40
Qms	6.091	4.271
Qes	0.955	1.056
Qts	0.826	0.847
Xmax (mm)	6	6

Loading accessories...

1 question already asked

Is the Infinity Reference 103W 10" subwoofer a dual voice coil subwoofer? The Shallow Mount 103WSL is labelled as dual voice coil but the 103W is not labelled.

julian Nov 23, 2024

1 answer

Greetings Julian. Thats a great question. It is a single 2 inch voice coil impedance switchable subwoofer.

thomas Nov 23, 2024 (Staff)
