Infinity Reference REF-375TX Reference Series 3/4" textile dome tweeters

Item # 108R375TXM

Muddy soundstage across your dash? Looking to brighten up your system a bit?

Find what Fits your vehicle

Remove

Checking fit...

Muddy soundstage across your dash? Looking to brighten up your system a bit?

California customers:
Please click here for your Proposition 65 warning.

5 questions - 9 answers

Item # 108R375TXM

In stock

Deeply discounted installation gear

$99.95 -$30.00 Price break
$69.95 pair

Other options

About the Infinity Reference REF-375TX

Alexander H.

Smooth and clear

Muddy soundstage across your dash? Looking to brighten up your system a bit? Infinity's REF-375tx 3/4" dome tweeters will bring refreshingly warm detail to your music and provide an improved stereo image — without being shrill or causing harshness.

Smooth and clear

Muddy soundstage across your dash? Looking to brighten up your system a bit? Infinity's REF-375tx 3/4" dome tweeters will bring refreshingly warm detail to your music and provide an improved stereo image — without being shrill or causing harshness.

Bring on the power

Infinity uses an edge-driven tweeter design and a large voice coil to help this tweeter handle up to 45 watts RMS. The package includes in-line crossovers that protect the tweeters against lower frequencies, along with adapters that allow for surface- or flush-mounting, so that installation's a lot easier. You can use the included Starfish mounts to place the tweeters in many existing tweeter openings.

Installation note: You may need a pair of our universal backstraps to install these tweeters in the factory locations.

READ LESS

Product highlights:

  • 3/4" textile dome tweeters (pair)
  • flush- and surface-mount hardware included
  • Starfish™ bracket for mounting in factory tweeter locations
  • passive in-line crossovers included (2,500 Hz)
  • handles up to 45 watts RMS (135 watts peak power)
  • frequency response: 2,500-21,000 Hz
  • sensitivity: 93 dB at 2.83V
  • top-mount depth: 13/16"
  • warranty: 1 year
  • MFR # REF375TXAM

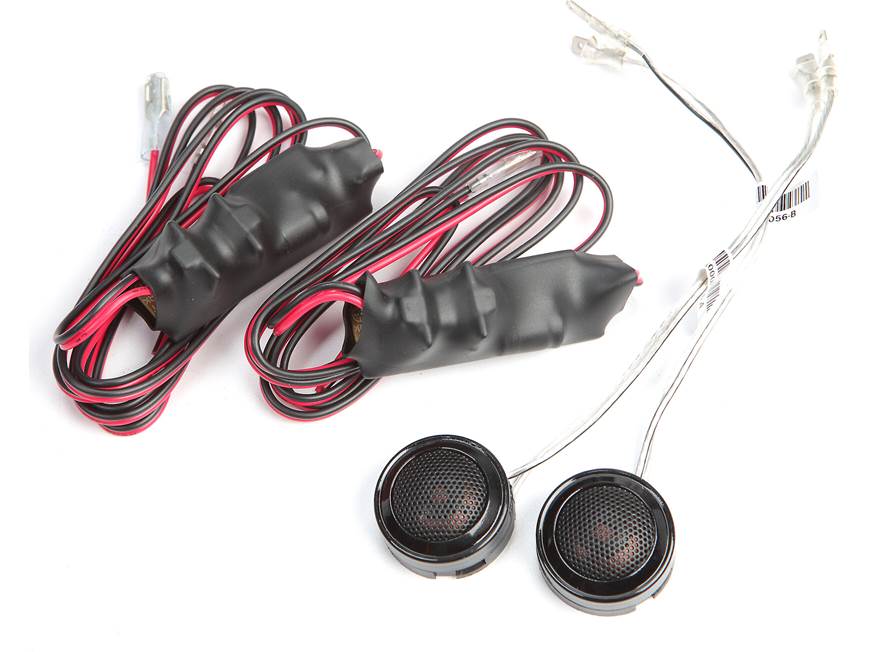

What's in the box:

  • 2 Tweeters (each has attached 6" speaker leads)
  • 2 In-line crossovers (each has 24" input leads and 33" output leads)
  • 2 Flush-mount housings
  • 2 Threaded flush-mount adapters
  • 2 Plastic locking nuts
  • 2 Surface-mount housings
  • 2 Starfish mounts
  • Six 5/8" Flat head screws
  • 2 Washers
  • 2 Nuts
  • 2 Infinity logos
  • Instruction manual
  • Template on box

Customer reviews for Infinity Reference REF-375TX

Loading reviews...

Average review:

4.5 out of 5 stars
160 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Infinity Reference REF-375TX

Pat M.

Features & specs

General
Speaker Size 3/4
Design 1-way
Tweeter Design Dome
Impedance (Ohms) 3
Tweeter Composition Textile
Woofer Composition ---
Woofer Surround ---
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 93
Frequency Response 2500 - 21k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 45
Peak Power Handling (Watts) 135
Top-mount Depth (Inches) 0 13/16
Bottom-mount Depth (Inches) 0 15/16
Cutout Diameter or Length (inches) 1 5/8
Mounting Height (Inches) 0.65
The Infinity Reference REF-375TX replaces these items:

Product Research

Tweeters
Crossovers

Tweeters

Material: Each tweeter features a 3/4" edge-driven textile dome for smooth, accurate highs.

Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:

  • I-Mount: The tweeters can be surface- or flush-mounted with Infinity's innovative I-Mount system:
    • Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
    • Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
  • Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
    • Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
    • Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
    • Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just under a half inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.

Dimensions:

  I-Mount Surface Mount I-Mount Flush Mount Starfish Bottom Mount Starfish Surface Mount Starfish Flush Mount Starfish Flush Mount (below mounting surface)
Mounting Height 0.854" 0.65" 0.0" 0.857" 0.386" 0.286"
Depth screw depth 0.786" 0.930" screw depth 0.471" 0.571"
Frame Diameter 1.474" 1.838" 3.036" 2.440" 2.330" 2.330"
Cutout Diameter N/A 1.581" N/A N/A 1.504" 1.257"
Crossovers

Crossover Connections: Each crossover has 24" input leads and 33" output leads. The output leads are terminated with female quick-slides (that mate to the male quick-slides on the wire attached to the tweeters) and the input leads have bare wire.

Crossover Dimensions:

  • Length: 2-3/4"
  • Width: 7/8"
  • Height: 7/8"

Loading accessories...

Customer Q&A

5 questions already asked

Q
I have a 1954 Chevy pickup truck in which I installed a JVC KD-T925BTS stereo with 2 Infinity Reference 6532EX EZFit 6.5" Shallow Mount 165 Watts Peak Coaxial Speakers. I was thinking of getting 2 tweeters ... but my speakers have built in tweeters. Would I be wasting my money getting tweeters in addition to the built in tweeters. Similarly If I get a separate woofer would that make sense ? My car is fairly noisy so I am not expecting premium sound quality (but I do want it to sound good). So I'm not sure if 2 tweeters and a woofer would be that noticeable of an improvement ?
imre  Aug 21, 2022
3 answers
A
not sure but if the tweeters are up a little higher u tend to hear the his better and a little bass never hurts but for sure best money spent is on sound deadening in floor and doors make it quieter in cab better sound from system
marc  Aug 21, 2022
A
If you custom place the tweeters closer to you, it will be worth it, otherwise no.
douglas  Aug 21, 2022
A
Compared to factory, Bose What a difference, well worth their cost Make sure they are mounted high on doors or pillar If you have a amp so u can adjust between woofer and tweeters My pickup had a added amp and subs in boxes under rear seat Upgraded from factory speakers, but all were low on doors did not provide good sound without to high of volume So I removed amp, installed two sets of tweeters One in pillars and one set high on rear doors Much better at lower volume IMO
edward a  Aug 21, 2022
Q
If I replace my dash 3.5??? coaxial on a KIA Optima 2016 with Harman Kardon OEM with this tweeter, will losing that little bit of midrange from the dash ruin the sound? Or Will the rest of the speakers in the car be able to fill that part in and I can just benefit from the improvement of the tweeter?
jeffrey  Jun 11, 2022
1 answer
A
Replacing that speaker with a tweeter could have a negative effect on sound quality. Our advisors would be happy to help with selecting a more appropriate option for this replacement. Please give us a call at 1-800-324-9695.
zachary  Jun 11, 2022 (Staff)
Q
Can I wire these to Infinity Reference REF-8632CFX or do I need something else?
edwin  Mar 19, 2022
1 answer
A
I swaped out factory speakers in front pillars Did not need those wiring, resistors with factory radio They made a huge difference from stock
edward a  Mar 23, 2022
