Infinity Reference REF687F Reference Series 6"x8" 2-way car speakers

Name: Infinity Reference REF687F
Brand: Infinity
SKU: 108R687F
Price: 103.95 USD
Availability: InStock
Rating: 5.0 (34 reviews)

Item # 108R687F

One thing's for sure — our customers love Infinity's Reference Series speakers.

Does it Fit your car?

Find what Fits your vehicle

Remove

Checking fit...

Upgraded technology and materials come together to revive your vehicle's sound

1/6

Back

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Crutchfield: Infinity Reference Series car speakers

These highly efficient speakers work with just about any power

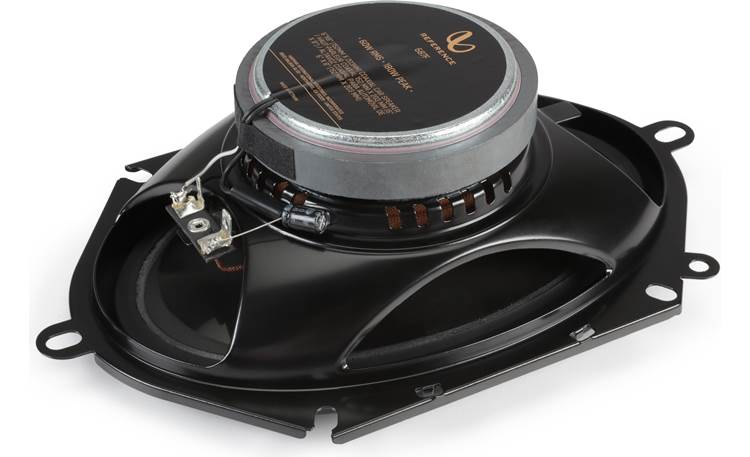

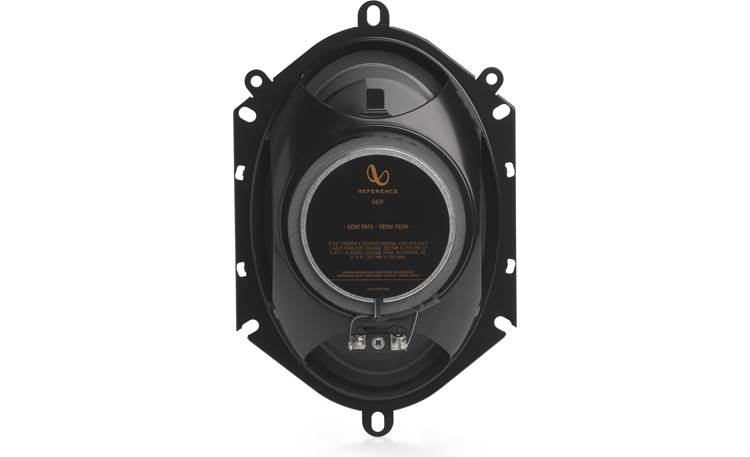

Back magnet view

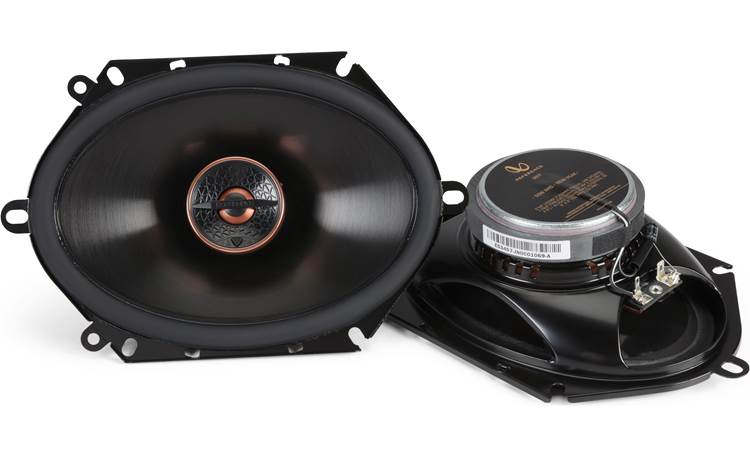

Infinity Reference REF687F Upgraded technology and materials come together to revive your vehicle's sound

Infinity Reference REF687F Only at Crutchfield

Infinity Reference REF687F These highly efficient speakers work with just about any power

Infinity Reference REF687F Back magnet view

One thing's for sure — our customers love Infinity's Reference Series speakers.

Item # 108R687F

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

Deeply discounted installation gear

$129.95 Save $26.00

$103.95 pair

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Dave Delamere

A modern classic

Just as they were throughout my 16 years as a Crutchfield Advisor, Infinity's Reference Series speakers remain a popular choice for upgrading from factory speakers. The REF687F 6"x8" 2-way car speakers follow that Infinity heritage by offering the killer combo of high efficiency and superb sound.

Infinity Reference REF687F 2-way 6"x8" car speakers

Designed to work behind factory grilles, these Infinity speakers can liven up your music.

Infinity's famous ingredients

Reference Series speakers deliver powerful sound every mile you drive, thanks to oversized polypropylene woofer cones with durable hi-roll rubber surrounds. The cones move more air than other speakers of similar size, adding plenty of punch to the speaker's impressive performance. The 1" textile balanced-dome tweeters deliver clear and smooth highs, for a sound that's definitively Infinity. You can compensate for a less-than-ideal lower door location by raising the tweeter level by 3 dB to get more out of those higher frequencies.

Excellent power-handling

These speakers will blossom when powered by an external amplifier, but they're also sensitive enough to be a good match for a factory or aftermarket stereo. Plus, Infinity has come up with a safe way to get a little more power out of your system — these 3-ohm speakers work in combination with the speaker wire in your car so your car stereo sees a true 4-ohm impedance.

Note: grilles are not included; these speakers are designed to fit behind the factory grilles or panels in for most applications.

Product highlights:

6"x8" 2-way speakers (pair)
Plus One+ polypropylene woofer cone with hi-roll rubber surround
1" textile edge-driven dome tweeter with 3.0 dB level adjustment
True Four Ohm Impedance technology
- speaker's 3-ohm impedance combines with speaker wire impedance for a 4-ohm load compatible with virtually all factory or aftermarket car stereos
- compatible with virtually all factory or aftermarket car stereos
handles up to 60 watts RMS (180 watts peak power)
frequency response: 49-21,000 Hz
sensitivity: 93 dB at 2.83V
top-mount depth: 2.32"
grilles not included
warranty: 1 year
MFR # INFSPKRF687FUS
Item # 108R687F
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Infinity Reference REF687F owner's manual

Two 2-way speakers
2 Adhesive backed foam gaskets
Instruction manual
Template on box

Featured video:

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6X8
Driver Design	2-way
Woofer Design	Plus One Cone
Woofer Material	Polypropylene
Woofer Surround	Rubber
Midrange Design	---
Midrange Material	---
Tweeter Design	Edge-Driven Dome
Tweeter Material	Silk
Super Tweeter Design	---
Super Tweeter Material	---
Impedance (Ohms)	3
Weather-resistant	No
Grilles Included	No
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	N/A
Sensitivity at 2.83 volts	93
Frequency Response	49 - 21k Hz
Maximum RMS Wattage	60
Peak Power Handling (Watts)	180
Top-mount Depth (Inches)	2 3/8
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	0
Mounting Height (Inches)	0.5
Frame Width	5.598
Frame Length	7.64

The Infinity Reference REF687F replaces these items:

Infinity Reference REF-8632CFX

Product Research

Features

Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.

Angled Tweeter: The tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.

Tweeter Level Control: A switch on the front of the tweeter allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.

High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.

The Infinity Reference REF687F replaces these items:

Infinity Reference REF-8632CFX
