JBL Apex PA1502 Compact 2-channel powersports amplifier — 100 watts RMS x 2

Name: JBL Apex PA1502
Brand: JBL
SKU: 109APEX150
Price: 307.95 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Item # 109APEX150

You won't believe how much sound comes out of this tiny amp.

2-channel powersports amplifier

1/10

2/10

Only at Crutchfield

3/10

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

JBL Apex PA1502 2-channel powersports amplifier

You won't believe how much sound comes out of this tiny amp.

Item # 109APEX150

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$349.95 Sale $42.00 off

$307.95

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Buck Pomerantz

That's a power amplifier?

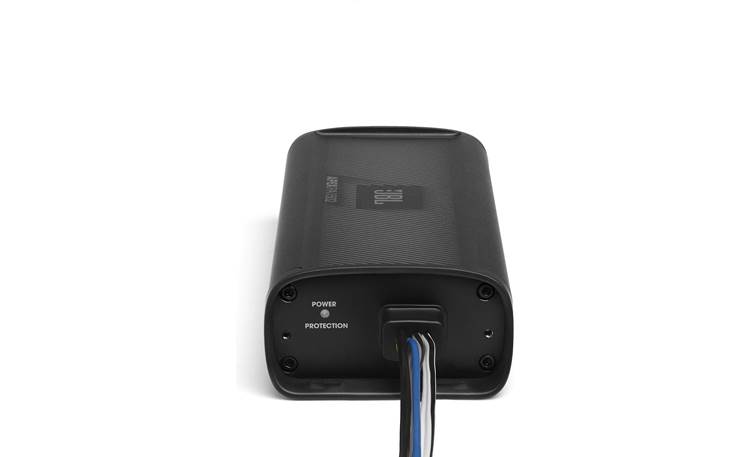

You won't believe how much sound comes out of this tiny amp. JBL's Apex PA1502 puts out two channels of 100 watts RMS from a chassis that's smaller than a shoe. It'll fit in almost any little nook or cranny on your UTV, motorcycle, or boat, bringing the joy of music to your outdoor fun.

Versatility and control

You can also use this amp in bridged 1-channel mode to power a sub with 300 watts RMS. Selectable high- and low-pass filters let you tune the signals to match your speakers and subs, while a bass boost adds punch to the low end. The tough aluminum chassis and conformal-coated circuit boards protect the amp against the weather. The controls are protected behind an aluminum panel.

Hand-sized

Product highlights:

compact 2-channel amplifier
- 100 watts RMS x 2 at 4 ohms
- 150 watts RMS x 2 at 2 ohms
- 300 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)
selectable high- or low-pass filter (60, 80, 120 Hz at 12 dB/octave)
selectable bass boost (0, 6, 12 dB at 45 Hz)
Class D amp technology (frequency response: 20-20,000 Hz)
weather-resistant aluminum chassis

More Info:

preamp and speaker-level inputs
- wire-to-RCA adapters for speaker-level inputs included
wiring and hardware not included with amplifier
- 10-gauge power and ground leads recommended
fuse rating: 25A
dimensions: 9"W x 1-3/4"H x 3-5/16"D
warranty: 1 year
MFR # APEX PA1502
Item # 109APEX150
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JBL Apex PA1502 owner's manual

2-Channel amplifier
2 Speaker to RCA adapters
Two 25-amp ATO fuses (1 installed/1 spare)
Four 5/8" Screws
Four 5" Zip ties
Owner's manual (English/ French/ Spanish/ Portuguese/ Chinese/ Japanese/ Korean)
2 Window stickers

Researched by Crutchfield's Mark G.

Product Research

Features

Auto Turn-on: When using speaker level inputs, the DC offset circuit in the amp senses when a signal is present and turns the amp on automatically.

Control Panel: The control panel is protected by a cover to help keep the controls dry, and to prevent unwanted adjustments.

Input Level: 2-position switch; select High (speaker level) or Low (preamp level)
Gain: rotary control; variable from 200mV to 6V with the input level switch in the low position and 500mV to 15V with the input level switch in the high position
Crossover:
- X-Over: 3-position switch; select High Pass, Off (full-range), or Low Pass
- Frequency: 3-position switch; select 60 Hz, 80 Hz, or 120 Hz
Bass Boost: 3-position switch; select 0 dB, +6 dB, or +12 dB; centered at 45 Hz; bass boost is only active when the X-Over switch is in the low pass position

Connections:

Speaker Outputs: 2 pair of 8" speaker wires attached; 16-gauge
Power: 8" wire attached; 14-gauge; ATO fuse holder wired in-line
Ground: 8" wire attached; 14-gauge
Remote Turn-on: 8" wire attached; 18-gauge
RCA Inputs: one pair of stereo RCA inputs, on the end of a 6" pigtail; compatible with preamp level and speaker level signals (two speaker wire to RCA adapters included)

Loading accessories...

5 questions already asked

can this amp run 2 ohm stable off of 2 svc 4 ohm speakers wired parrallel?

tammy May 08, 2020

1 answer

No, when bridged, this amplifier is only 4 -ohm stable.

thomas May 27, 2020 (Staff)

Can this be installed in a jeep wrangler to improve sound quality?

cynthia Aug 09, 2019

1 answer

If you replace the speakers with some that can handle around 100 watts RMS, then it can work. If you want to keep the factory speakers installed, this is too powerful for them. We have other options to improve sound with stock speakers in some of the Wranglers. I recommend contacting an advisor on 1-800-324-9695 to check for possible upgrades for your specific Wrangler

jason Aug 19, 2019 (Staff)

Could this be used for marine application?

jon Aug 08, 2019

1 answer

Yes, this amplifier has a weather and moisture resistant aluminum chassis. It is designed for marine, power sports, UTVs, or motorcycles.

thomas Aug 16, 2019 (Staff)

In electronics, power equals current multiplied by voltage. Therefore 300 Watts is equal to 14 Volts times 25 Amps, the rating of the included fuse. Amplifiers can be highly efficient however the math here represents an amplifier that is perfect 100%, how can this be?

thomas Aug 08, 2019

1 answer

14 x 25 = 350. This amplifier is a compact class D amplifier. When you are running it 2-ohm in 2 channel mode or bridged to a single channel at 4-ohms. it is rated for 100 watts RMS. That is 85% efficient, as 350 x 0.85 = 300, which is about par for a class D amplifier.

thomas Aug 16, 2019 (Staff)

How resistant to heat is this amplifier?

thomas Aug 08, 2019

1 answer

It is a class D amplifier, and is designed to not get as hot. It should however still be given airspace to breathe.

thomas Aug 16, 2019 (Staff)
