JBL Arena X 36Be Arena X Series 6-1/2" 3-way component speaker system

Name: JBL Arena X 36Be
Brand: JBL
SKU: 109ARENAX3
Price: 2899.95 USD
Availability: LimitedAvailability
Rating: 5.0 (1 reviews)

Item # 109ARENAX3

JBL lives up to their legend once again.

Does it Fit your car?

Find what Fits your vehicle

Remove

Checking fit...

Front

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

JBL lives up to their legend once again.

Item # 109ARENAX3

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

Deeply discounted installation gear

$4,999.95 Save $2,100.00

$2,899.95

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Arena rocks

JBL lives up to their legend once again. Their Arena X 36Be 3-way component system combines the latest speaker technology and materials with one of the coolest-looking designs I've seen in a while. The set's acoustically optimized metal grilles stylishly flaunt the JBL logo, and magnetic trim rings help an easier installation and seamless finish. And while looks are impressive, it's the sound that counts. JBL prioritizes neutral, accurate playback so that you can enjoy the best of what your high-resolution audio files have to offer.

Collaborative design

The Arena X Series tweeter is unlike any tweeter you've probably seen in a vehicle before. A collaboration with home audio titan, Revel, the beryllium dome tweeter is built into an oval ceramic-coated, cast-aluminum acoustic lens waveguide for unparalleled off-axis response. This ensures that you gain the smoothest sound possible, up to 40,000 Hz.

Carbon fiber woofers

JBL uses carbon fiber for both the 6-1/2" woofer and 3-1/2" midrange driver, providing hearty, bold lows that stay accurate at any volume. Note: You'll need an active crossover system (not included) to ensure seamless interplay between the three drivers.

Build an active system

JBL designed these speakers to be neutral, without coloration, so that you can craft exactly the right sound for you and your vehicle.

Product highlights:

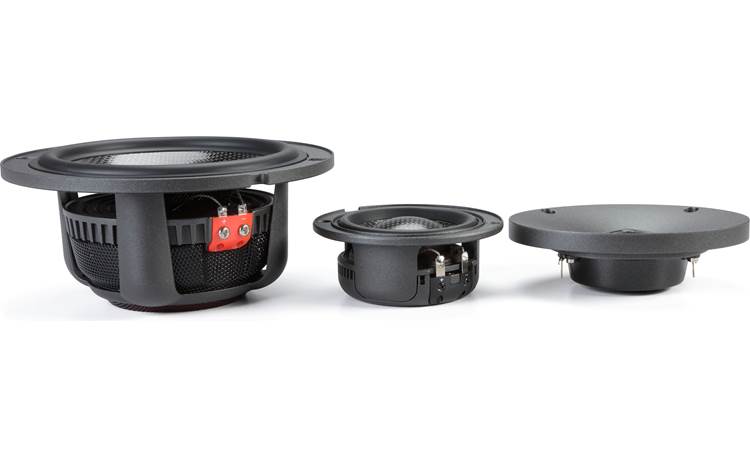

3-way component speaker system
includes 2 woofers, 2 midrange drivers, 2 tweeters (crossovers not included)
6-1/2" carbon fiber woofer cone
- high-roll rubber surround
- die-cast aluminum woofer basket
3-1/2" carbon fiber midrange driver
1" beryllium dome tweeter
active crossover network required
- crossover points: 250 Hz at 12 dB/octave, 3500 Hz at 24 dB/octave
handles up to 100 watts RMS (200 watts peak power)
frequency response: 60-40,000 Hz
sensitivity: 90 dB at 2.83V
woofer mounting depth: 2-7/8"
midrange mounting depth: 1-1/2"
grilles included
warranty: 1 year
MFR # JBLSPKAXAM
Item # 109ARENAX3

What's in the box:

JBL Arena X 36Be owner's manual

2 Woofers
2 Midrange
2 Tweeters
2 Woofer grilles
2 Midrange grilles
2 Woofer screw cover rings
2 Midrange screw cover rings
2 Oval tweeter mounting brackets
2 Tweeter trim rings
2 Tweeter factory mounting brackets
2 Adhesive backed foam gaskets
Eight M4.5x25mm Machine screws
Eight 1" Pan head screws
Eight 5/8" Flat head screws
16 Speed clips
Owner's manual (English/ French/ Spanish/ Chinese)

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6 1/2
Driver Design	3-way
Woofer Design	Cone
Woofer Material	Coated Carbon Fiber
Woofer Surround	Rubber
Midrange Design	Cone
Midrange Material	Coated Carbon Fiber
Tweeter Design	1" Dome
Tweeter Material	Beryllium
Super Tweeter Design	---
Super Tweeter Material	---
Impedance (Ohms)	4
Weather-resistant	No
Grilles Included	Black steel mesh
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	N/A
Sensitivity at 2.83 volts	90
Frequency Response	60 - 40k Hz
Maximum RMS Wattage	100
Peak Power Handling (Watts)	200
Top-mount Depth (Inches)	2 7/8
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	5 1/4
Mounting Height (Inches)	0.402
Frame Width	6.926
Frame Length	6.926

Product Research

Features

Woofer Size Classification: JBL describes these woofers as 6½; they will fit some 6½ applications, but they require a cutout slightly larger than is standard, and have a bigger frame, so they usually end up sorting with 6¾ applications. Please enter your vehicle information to confirm fit.

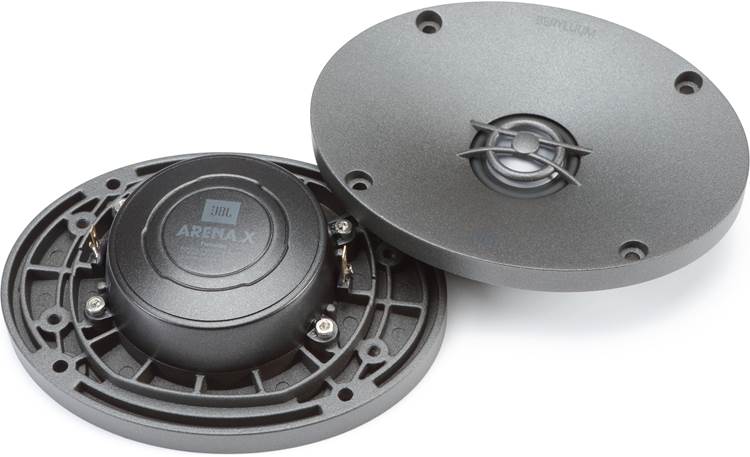

Beryllium Tweeters: Beryllium is several times stiffer than titanium or aluminum, but much lighter than either; it also has inner damping characteristics similar to silk. These properties make Beryllium an excellent tweeter material. The tweeters can be mounted several different ways using the included hardware.

Tweeter Mounting Dimensions:

	Flush Mount (using only the tweeter's frame)	Bracket (using the included mounting brackets and trim rings)	OEM (using the included brackets, typically bottom mounted)
Mounting Height	0.45"	0.75"	N/A
Depth	1.15"	0.85"	1.6"
Frame Width	5.215"	5.875"	5.215"
Frame Length	4.015"	4.7"	varies based on install
Cutout	3.55" x 3.3"	3.125" x 2.75"	N/A

Midrange Size: JBL calls the midrange drivers 3½"; the required cutout is typical for a standard 3½" speaker, but the frame is a different shape, so they don't usually fit factory 3½" applications easily. They are top mounted and have these dimensions:

Depth: 1.475"
Mounting height:
- With Grille: 0.46"
- Without Grille: 0.22"
Flange height: 0.18"
Cutout diameter: 3.1"
Frame diameter: 4.11"

Crossover: The Arena X system is designed for use in an active system, so no crossovers are included.

Wire Terminals: The woofers have set screw terminals, offering easy connection of bare wire up to 10-gauge. The midrange also have set screw terminals, for bare wire up to 12-gauge. The tweeters have 0.187" and 0.110" male quick slide terminals. Neither speaker wire nor female quick slide adapters are included with these speakers; they must be purchased separately.

Loading accessories...

1 question already asked

Whatâ??s missing or damaged for these scratch and dent JBL arena 3-ways?

robert May 17, 2025

1 answer

There won't be any missing parts because we make sure it can be installed and used like a new model. While we are not able to get the details on the exact blemish or substituted item, can confirm that if they have a blemish it will be only minor cosmetic damage and in some cases the manufacturer's accessories have been replaced with generic equivalents. The good news is that the manufacturer's warranty is there just like with the new models

jason May 17, 2025 (Staff)
