About the JBL Club 1000D

Product highlights:
- ported enclosure with two 10" subwoofers
- polypropylene cone with rubber surround
- enclosure made from 13/16" MDF covered with black carpet
- patented Slipstream port design reduces port noise
- 2-ohm total impedance
- power handling: 700 watts RMS (1400 watts peak)
- frequency response: 30-400 Hz
- sensitivity: 86 dB
- dimensions: 26"W x 14.13"H x 17"D1 x 13.88"D2
- warranty: 1 year
- MFR # JBLSUBCB1000D
- Item # 109CL1000D
What's in the box:
- Ported enclosure loaded with two 10" Club subwoofers
- Logo patch
- Owner's manual (En/Sp/Fr/Others)
More details on the JBL Club 1000D

Features & specs
General | ||
---|---|---|
Woofer Size (inches) | 10 | |
Speakers Per Box | 2 | |
Woofer Material | Polypropylene | |
Enclosure Type | Ported | |
Color | Black | |
Pieces in System | 1 | |
Width (inches) | 26 | |
Height (inches) | 14-3/16 | |
Depth (inches) | 17 | |
Connector Type | Spring post, 10 AWG | |
Frequency Response | 30-400 Hz | |
Power Handling (Watts RMS) | 700 | |
Power Handling (Watts Peak) | 1400 | |
Sensitivity | 86 dB | |
Impedance | 2 ohms | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Overview: The JBL Club 1000D dual 10" subwoofer enclosure has been carefully designed to provide deep, powerful bass with minimal distortion. The Club Series 1000D features two 10" polypropylene-cone drivers with 2" voice coils. Both drivers are mounted in a ported enclosure constructed of MDF (Medium Density Fiberboard) and covered in black carpet. The enclosure features JBL's patented Slipstream double-flared port design that minimizes turbulance and port noise, while providing deep bass down to 30 Hz.
Power: The two 4Ω subwoofers are internally wired in parallel for a 2Ω load at the single set of spring post terminals. The Club 1000D can handle up to 700W RMS (1400W peak).

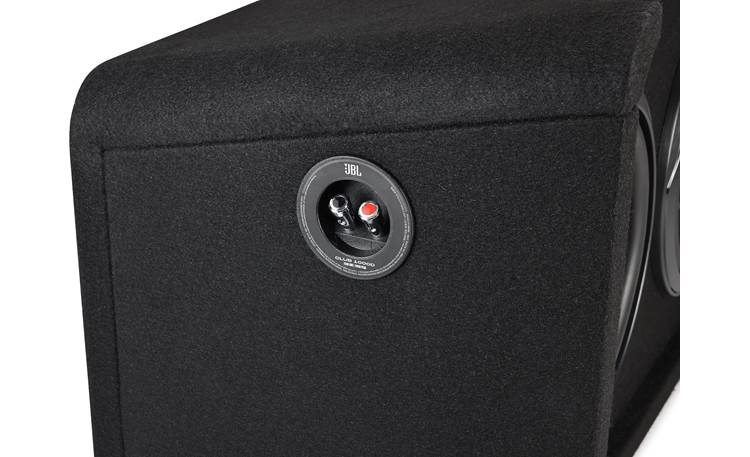

Terminals: Two spring posts can accept pin connectors, banana plugs, and bare wire up to 10-gauge.
Dimensions:
- Width: 26.0"
- Height: 14.13"
- Depth:
- Top: 13.88"
- Base: 17.0"
