About the JBL Club 1000P

Product highlights:
- ported enclosure with one 10" 2-ohm subwoofer
- polypropylene cone with rubber surround
- enclosure made from 11/16" MDF covered with black carpet

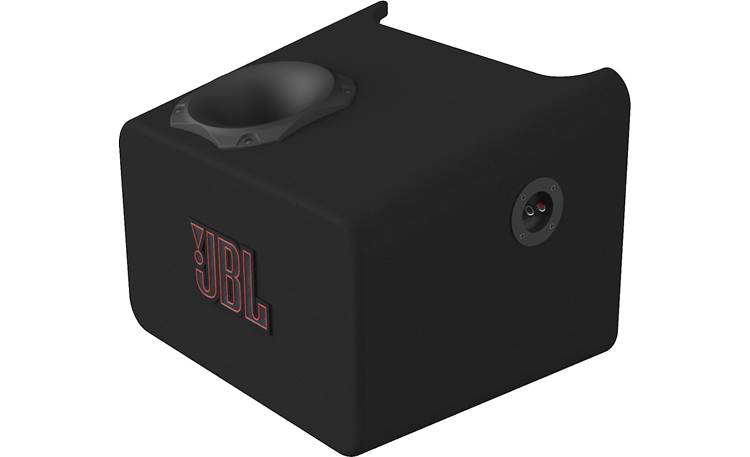

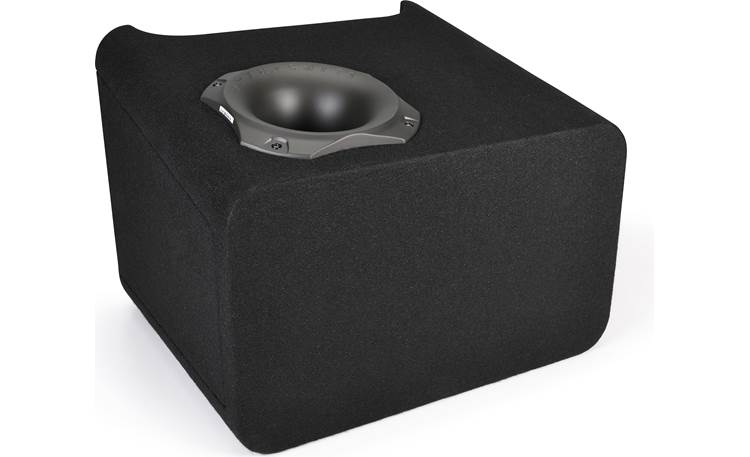

- patented Slipstream port design reduces port noise
- 2-ohm total impedance
- power handling: 350 watts RMS (1050 watts peak)
- frequency response: 35-400 Hz
- sensitivity: 83 dB
- dimensions: 17.5"W x 14.75"H x 13.38"D1 x 10.38"D2
- warranty: 1 year
- MFR # JBLSUBCB1000P
- Item # 109CL1000P
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Ported enclosure loaded with one 10" Club subwoofer
- Logo patch
- Owner's manual (En/Sp/Fr/Others)
More details on the JBL Club 1000P

Features & specs
General | ||
---|---|---|
Woofer Size (inches) | 10 | |
Speakers Per Box | 1 | |
Woofer Material | Polypropylene | |
Enclosure Type | Ported | |
Color | Black | |
Pieces in System | 1 | |
Width (inches) | 17-1/2 | |
Height (inches) | 14-3/4 | |
Depth (inches) | 13-7/16 | |
Connector Type | Spring post, 10 AWG | |
Frequency Response | 35-400 Hz | |
Power Handling (Watts RMS) | 350 | |
Power Handling (Watts Peak) | 1050 | |
Sensitivity | 83 dB | |
Impedance | 2 ohms | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Overview: The JBL Club 1000P 10" subwoofer enclosure has been carefully designed to provide deep, powerful bass with minimal distortion. The Club Series 1000P features a single 10" polypropylene-cone driver with 2" voice coil. The driver is mounted in a ported enclosure constructed of MDF (Medium Density Fiberboard) and covered in black carpet. The enclosure features JBL's patented Slipstream double-flared port design that minimizes turbulance and port noise, while providing deep bass down to 35 Hz.
Power: The JBL Club 1000P subwoofer presents a 2Ω load at the single set of spring post terminals. The subwoofer can handle up to 350W RMS (1050W peak).

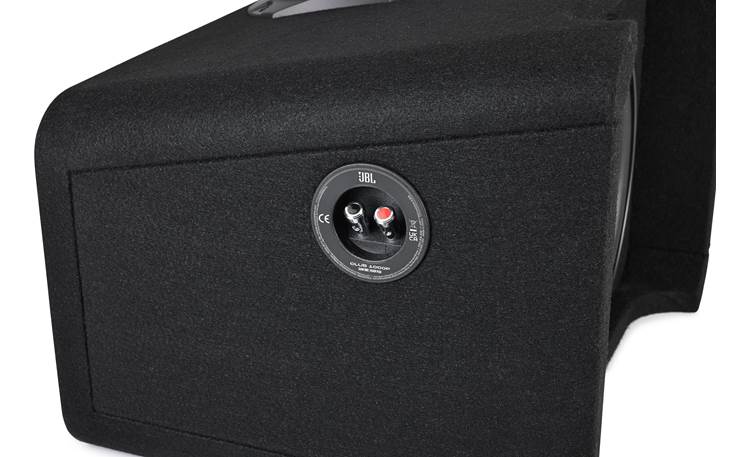

Terminals: Two spring posts can accept pin connectors, banana plugs, and bare wire up to 10-gauge.
Dimensions:
- Width: 17.50"
- Height: 14.75"
- Depth:
- Top: 10.38"
- Base: 13.38"
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
I bought this sub about a month ago and it sounds great and the bass is clear would definitely recommend buying this subwoofer
Tyler from Devils lake ND
