JBL Club 122SL Club Series 12" shallow-mount component subwoofer with 2- or 4-ohm selectable impedance

Name: JBL Club 122SL
Brand: JBL
SKU: 109CL122SL
Price: 309.95 USD
Availability: InStock

Item # 109CL122SL

With a low profile and selectable impedance, the 122SL fits a wide variety of situations.

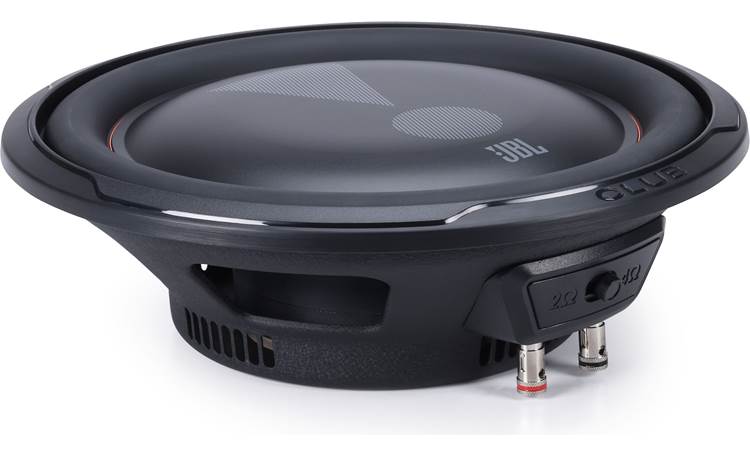

Front

1/5

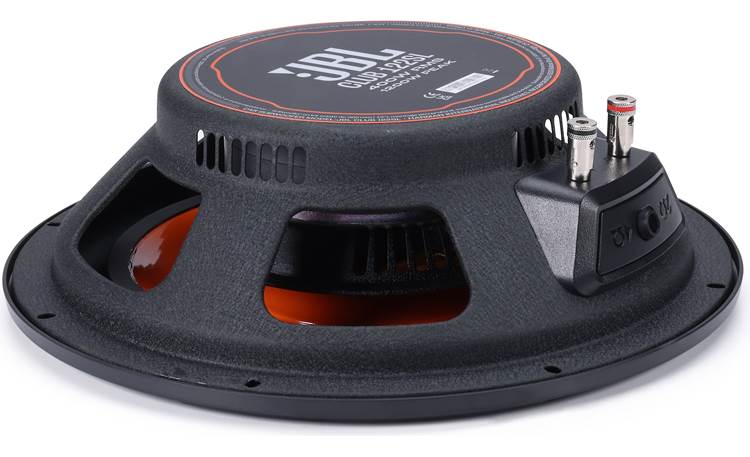

Back

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

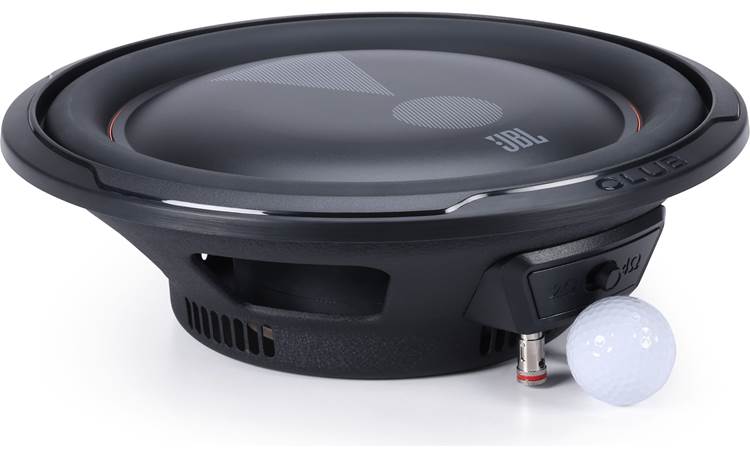

Golf ball shown for scale

JBL Club 122SL Golf ball shown for scale

With a low profile and selectable impedance, the 122SL fits a wide variety of situations.

Item # 109CL122SL

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$309.95 each

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Bob Bihlmayer

Designed for versatility

JBL designed their Club Series 122SL 12” subwoofer for versatility. Its low-profile design allows it to fit into shallow enclosures, and its selectable impedance gives you flexibility in configuring your system. That means it'll fit in just about any vehicle and into any upgrades you make to your bass setup.

Selectable impedance

Unlike most other dual voice coil subs, this sub's Selectable Smart Impedance (SSI™) switch makes it easy to change the sub's impedance from 2 ohms to 4 ohms, the most commonly used impedances. No complicated wiring — just flip the switch and you're done. This feature makes it easy to reconfigure your system when you add another Club Series subwoofer or upgrade your amplifier. The sub's proprietary aluminum cone punches out bass as low as 30Hz and handles up to 400 watts RMS. It works equally well in free-air applications, or in sealed, bandpass, or ported enclosures, another example of its versatility.

Product highlights:

12" component subwoofer
aluminum cone with rubber surround
impedance selector switch (2 or 4 ohms)
power handling: 400 watts RMS (1200 peak)
frequency response: 30-500 Hz
sensitivity: 84 dB
top-mount depth: 3.3"
mounting height: 0.6"
cutout diameter: 10.916"
sealed box volume: 0.88 cu. ft.
ported box volume: 0.88 cu. ft.
grille not included
warranty: 1 year
MFR # JBLSUBCB122SL
Item # 109CL122SL
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JBL Club 122SL owner's manual

One 12" Subwoofer (with impedance switch)
Trim ring (installed)
Adhesive backed foam gasket
Owner's manual

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	12-inch
Impedance (Ohms)	2, 4
Cone Material	Aluminum
Surround Material	Rubber
Basket Material	Steel
Grille	None included
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	84 dB at 1 watt
Frequency Response	30 - 500 Hz
Max RMS Power Handling	400
Peak Power Handling (Watts)	1200
Top Mount Depth (inches)	3 5/16
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	10 15/16
Frame Width	12.5
Frame Length	12.5
Vas (liters)	81.0925
Fs (Hz)	28.7
Qts	0.853
Xmax (millimeters)	6
Parts Warranty	1 Year
Labor Warranty	1 Year
Box Requirements
Ideal Sealed Box Volume (cubic feet)	0.88
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	0.88
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	3.54
Port length (inches)	10.24

The JBL Club 122SL replaces these items:

JBL Club WS1200

Product Research

Features

Selectable Smart Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 400 watts RMS/1200 watts peak.

Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. JBL recommends a sealed enclosure of 0.88 ft³.

Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. JBL recommends a ported enclosure of 0.88 ft³ with one 3.54" diameter x 10.24" long port, yielding a tuning frequency of 43.8 Hz.

Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by half (to 200 watts RMS).

Band-Pass: JBL also recommends a prefabricated band-pass enclosure, but no volume specifications are listed in the manual. Band-pass enclosures often provide the most output available from any amplifier and subwoofer combination, but at the expense of sonic accuracy.

Thiele-Small Parameters: Some of the parameters change based on the impedance setting:

	2Ω	4Ω
Re (Ω)	2.15	4.57
Le (mH)	0.817	0.803
Sd (cm²)	530.93	530.93
Bl (Tm)	7.837	10.93
Vas (liters)	81.0925	81.3191
Cms (mm/N)	0.203	0.204
Mms (g)	151.66	153.667
Fs (Hz)	28.7	28.4
Qms	7.8773	4.652
Qes	0.957	1.05
Qts	0.853	0.857
Xmax (mm)	6	6

The JBL Club 122SL replaces these items:

JBL Club WS1200

Club Series 12" shallow-mount component subwoofer with 2- or 4-ohm selectable impedance

13 reviews

polypropylene cone
power handling: 250 watts RMS (1000 watts peak)
top-mount depth: 3-5/16"

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

JBL Club 122SL

Club Series 12" shallow-mount component subwoofer with 2- or 4-ohm selectable impedance

In stock

$309.95 each
Loading...

Adding...

Pioneer TS-A2000LD2

Shallow-mount 8" subwoofer with dual 2-ohm voice coils

On backorder

5.0 out of 5 stars
76 reviews

$159.99 Sale: $40.00 off

$119.99 each
Loading...

Adding...

Rockford Fosgate P3SD2-8

Punch Stage 3 shallow 8" subwoofer with dual 2-ohm voice coils

In stock

5.0 out of 5 stars
143 reviews

$199.99 each
Loading...

Adding...

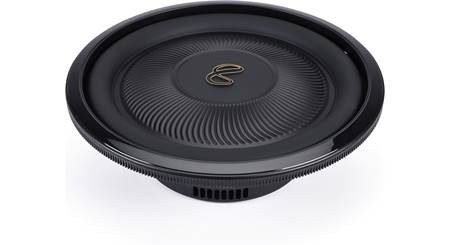

Infinity 123SWL
