About the JBL 601C
Strong components at a strong price
Strong components at a strong price
Bring on the big fun of being there live, but leave off the big price tag — that's the idea behind JBL's Concert Series car speakers. Their Concert 601C 6-1/2" component speaker system delivers a strong sound with a striking design, accented by JBL's "exclamation point" logo on the separate tweeter and external crossover. And the speaker's patented Plus One™ structure extends the surface area of the polypropylene woofer cone to give you a better low-frequency experience. Grilles are included.
A match for any system
These 3-ohm speakers are sensitive enough that you can power them with an aftermarket stereo, but you'll get even better results feeding them power from an outboard amp. JBL also gives you control over the tweeter volume with two selectable output levels.
Product highlights:
- 6-1/2" component speaker system includes two woofers, two tweeters, and two external crossovers
- polypropylene Plus One™ woofer cone

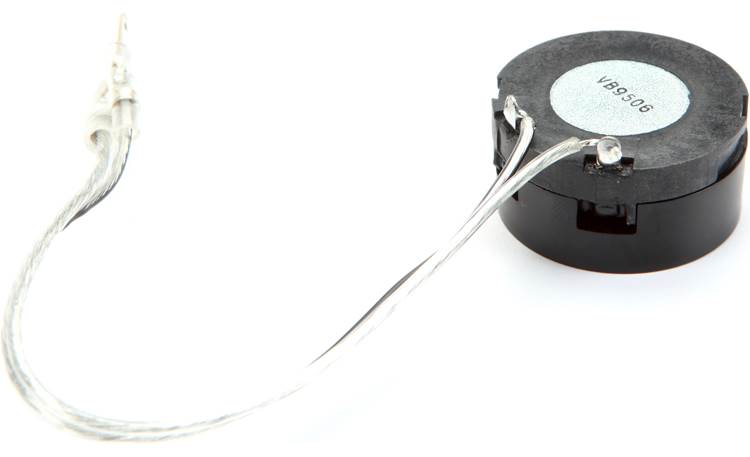

- separate PEI dome tweeter
- external crossover network with 2 selectable levels (0, +2dB)
- handles up to 50 watts RMS (150 watts peak power)
- frequency response: 55-20,000 Hz
- impedance: 3 ohms
- sensitivity: 92 dB at 2.83V
- woofer top-mount depth: 1-15/16"
- grilles included
- warranty: 1 year
- MFR # SPKCON601CAM
What's in the box:
- 2 Woofers
- 2 Tweeters (each has 6" speaker leads attached)
- 2 Crossovers
- 2 Woofer grilles
- 2 Woofer grille frames
- 2 Surface-mount tweeter housings
- 2 Angle mount adapters
- Four 5/8" Flat head screws
- Four 1/2" Pan head screws
- Eight 1" Pan head screws
- 8 Speed clips
- Installation instructions
- Template on box
Featured video:
Reviews (78)
Customer reviews for JBL 601C
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JBL 601C
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | Edge Driven Dome | |
| Impedance (Ohms) | 3 | |
| Tweeter Composition | PEI | |
| Woofer Composition | Poly | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 92 | |
| Frequency Response | 55 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 50 | |
| Peak Power Handling (Watts) | 150 | |
| Top-mount Depth (Inches) | 1 15/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 1/16 | |
| Mounting Height (Inches) | 0.508 | |
Product Research
Features
Plus One+ Woofer Cones: Each speaker uses a larger cone than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Woofer Size Classification: These speakers are marketed as 6½"; the woofers will fit standard 6½ speaker openings, but do not use the industry standard bolt pattern (then again, neither do many car manufacturers at this point). In most 6½ applications, new holes will need to be drilled in the mounting surface of the car. Without drilling new screw holes, the speakers fit many standard 6¾ applications. Please enter your vehicle information to confirm fit.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers. This results in clearer, richer sound for the listener.
Tweeter Mounting Options: The tweeters include brackets to allow flat surface mounting and angled surface mounting (approximately 40°).
Dimensions:
| Surface Mount | Angled Surface Mount | |
| Mounting Height | 0.81" | 1.596" |
| Depth | screw depth | screw depth |
| Frame Diameter | 1.48" | N/A |
| Frame Dimensions | N/A | 1.488" x 2.058" |
Crossover Connections: The crossovers' inputs and outputs are screw terminals; they will accommodate bare wire or spade connectors up to 0.3125" wide. A switch on each crossover allows you to set the tweeter output level according to system requirements and personal preference; choose +2 dB or 0 dB.
Crossover Dimensions:
- Width: 1.81"
- Height: 0.96"
- Depth: 2.67" (plus wire)
Loading accessories...
Customer Q&A
9 questions already asked
Loading articles...
Good sound quality for the money. Comes with the wire adapter to easily affix to the existing connector. Had to drill new holes to get the hardware provided to secure the speakers. Accidently punctured a small hole in the poly but the sound is still decent.
Joel from Riverside, CA
