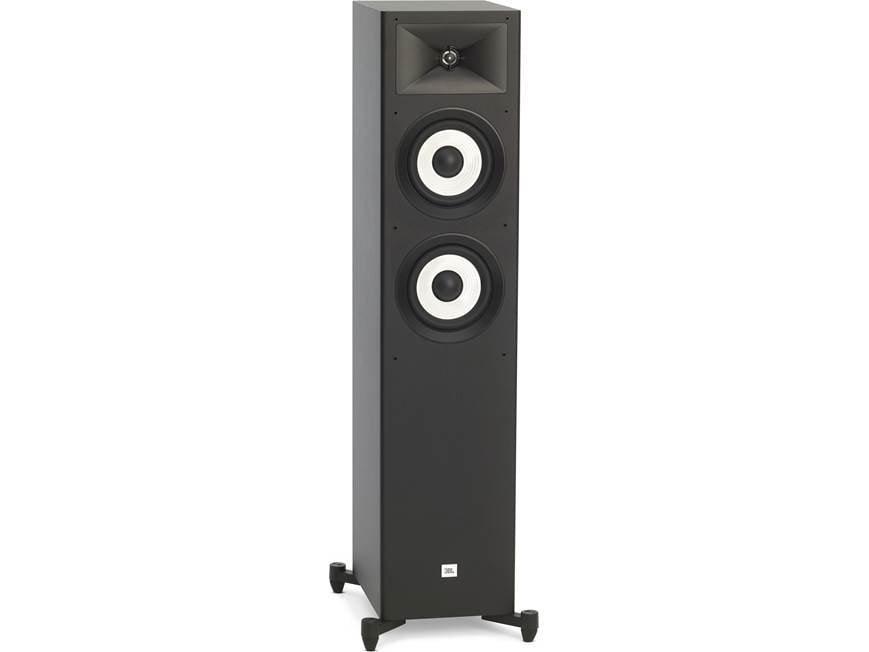

About the JBL Stage A180
A solid choice
A solid choice
The A180 is the mid-sized tower in JBL's new Stage series. And with plenty of features that punch above its price point, it's an excellent option if you're building a new stereo or home theater system. JBL paid particular attention to the design of the enclosure, aiming to craft a non-resonant cabinet with rigid walls and internal bracing so that you hear your music and movies as they were meant to be heard.
Expertly built drivers
The A180 draws from JBL's long and rich history of making speakers. The tweeter is mounted in an HDI (High Definition Imaging) waveguide that was designed for the JBL Professional M2 Master Reference Monitor. This flared shape helps smooth the transition from woofer to tweeter for a broad sweet spot and clear high-frequency detail.
The stiff polycellulose cone woofers produce clear midrange and deep, powerful bass. This speaker uses a "2.5-way" crossover design, which means both woofers cover the lower frequencies, but one goes higher into the midrange, for a smoother transition between drivers.
- 1" aluminum tweeter with HDI (High Definition Imaging) waveguide technology for detailed sound across a wide listening area
- dual 6-1/2" polycellulose woofers
- frequency response: 40-40,000 Hz
- sensitivity: 90 dB
- recommended amplifier power: 20-225 watts
- impedance: 6 ohms
- bass-reflex design with rear-firing tuned ports
- removable grille
- 5-way binding post speaker terminals
- two sets of input terminals allow bi-amping or bi-wiring
- 12"W x 41-1/8"H x 14-1/2"D
- weight: 38.03 lbs.
- warranty: 5 years
- MFR # JBLA180BLKAM
What's in the box:
- Floorstanding loudspeaker
- 4 Outriggers
- 4 Rubber feet
- 4 Spikes
- 8 Screws
- 2 Terminal jumpers (pre-installed)
- Owner's Manual
- Warranty Card
Customer reviews for JBL Stage A180
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the JBL Stage A180
Features & specs
|Tweeter Size (inches)||1|
|Midrange Size (inches)||N/A|
|Woofer Size (inches)||6.5|
|Built-in Powered Sub||No|
|Dolby Atmos Drivers||No|
|Connector Type||5-Way post|
|Parts Warranty||5 Years|
|Labor Warranty||5 Years|
|Frequency Response||40-40k Hz|
|Subwoofer Amp Power||---|
1" Aluminum Dome Tweeter w/ HDI Waveguide Horn: The JBL Stage A180 floorstanding loudspeaker features a 1" aluminum dome tweeter with a High Definition Imaging (HDI) waveguide horn for lifelike high frequencies with clarity & accuracy.
Dual 6.5" Polycellulose Woofers: The JBL Stage A180 floorstanding loudspeaker houses dual 6.5" polycellulose woofers with rubber surrounds that deliver deep, signature JBL bass performance.
Bass Reflex Cabinet: The floorstanding loudspeaker employs a bass reflex cabinet with dual rear-firing ports for greater efficiency and bigger bass response. The cabinet features MDF construction and is covered in a black vinyl. It also includes a detachable cloth grille.
Dual Binding Posts: The JBL Stage A180 is fitted with two sets of sturdy binding posts allowing to bi-amp or bi-wire the floorstanding loudspeaker. These binding posts ensure a secure connection to many types of cable and connectors. The binding post terminals will accept bare wire (up to 10AWG), pin-connectors, spade-lugs and banana plugs (single or dual). Plastic caps will need to be removed to use banana plugs.
- Bi-Wiring: Bi-wiring can provide noticeable improvements in the overall transparency of your loudspeakers. Run separate speaker wires to the low & high frequency drivers from a single amplifier (the upper set of binding posts are for the high frequency drivers; the lower set of binding posts are for the low frequency drivers).
- Bi-Amping: Bi-amping allows you to use separate amplifiers for the high & low frequency sections of your loudspeaker for greater dynamic range & lower distortion. We recommend that your separate amplifiers have identical gain to preserve the speaker's voicing balance.
Note: If you decide to bi-wire or bi-amp, you must remove the jumpers between the terminal posts (failure to do this could result in damage to your amplifier and loudspeakers).
Outriggers (w/ Rubber Pads or Spikes): The JBL Stage A180 come with four outriggers which screw into the bottom of the speaker cabinet. You can screw the included rubber or spike feet into the bottom of the outrigger based on your type of flooring. The rubber pads should be used on hardwood, laminate, tile, and vinyl flooring. The spikes should be used on carpeted flooring.
- Outriggers w/ Rubber Feet: 12.0" (w) x 41.125" (h) x 14.5" (d)
- Outriggers w/ Spike Feet: 12.0" (w) x 40.625" (h) x 14.5" (d)
Note: The JBL Stage A180 floorstanding speaker should always be used with the outriggers and either the rubber or spike feet installed for better stability and sound performance.
Placement: A pair of JBL floorstanding loudspeakers should be placed approximately 6-10' apart and angled between 40-60° toward the listening position. Generally, bass output will increase as the speaker is moved closer to a wall or corner. JBL recommends that you place the speakers at least 20" away from side or rear walls.
The JBL Stage A180 replaces these items
- 1" aluminum tweeter with HDI (High Definition Imaging) waveguide technology
- dual 6-1/2" polycellulose woofers for punchy midrange and bass
- frequency response: 40-40,000 Hz
