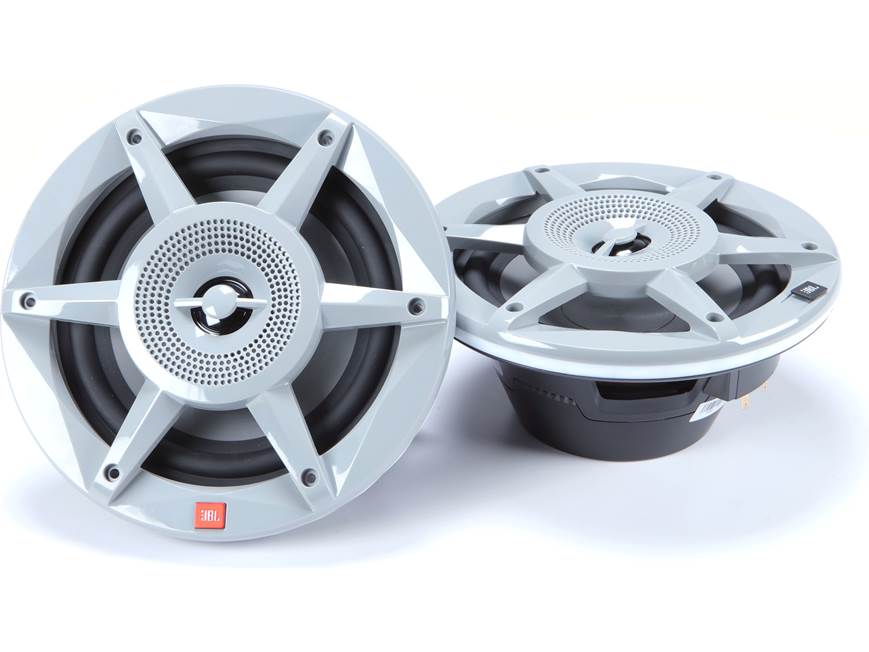

About the JBL Stadium Marine 62

Product highlights:
- 6-1/2" 2-way marine speakers (pair)
- multi-color RGB LED lights
- Plus One woofer cone for outstanding performance
- grille-mounted Mylar tweeter
- one-piece cast polymer basket
- IPX5 rated for weather resistance
Specs:
- handles up to 100 watts RMS (300 peak)
- sensitivity: 92 dB at 2.83 volts
- frequency response: 40-25,000 Hz
- impedance: 3 ohms
- warranty: 1 year
- MFR # JBLMARSPKSD62GAM
- Item # 109STADM62
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JBL Stadium Marine 62 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way marine speakers with fixed Gray polymer grilles
- Two 6" LED power harnesses
- Twelve 1-1/8" Stainless-steel screws (3mm Allen head)
- 12 Stainless-steel speed clips
- 3mm Allen head bit
- 2 Black JBL logo grille badges
- 2 Orange JBL logo grille badges
- 2 Adhesive backed foam gaskets
- Owner's manual (English/ French/ Spanish/ Russian)
- 2 JBL Stickers
- Template on the box
More details on the JBL Stadium Marine 62

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | Dome | |
Tweeter Composition | Mylar | |
Woofer Composition | Polypropylene | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity |
92 dB at 2.83 volts | |
Frequency Response | 40 - 25k Hz | |
Max RMS Power Handling | 100 | |
Peak Power Handling (Watts) | 300 | |
Impedance (Ohms) | 3 | |
Top-mount Depth (Inches) | 2 9/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 5 5/8 | |
Bolt Circle | 6.291 |
Product Research
Features
Tweeters: The tweeters are bridge mounted to the grilles, rather than to a pole piece, thus there is no chance of water leaking through the woofer cone. The tweeter is angled slightly (fixed at approximately 30°) so the sound image can be adjusted by turning the speaker before it's mounted.
LED Illumination: Integrated into each grille, around the perimeter and on the back of the tweeter casing is a red/green/blue LED assembly, to create a glow on the woofer cone. A 12 volt power supply is needed to turn the LEDs on; depending on what combination of LED wires is connected, they light red, green, blue, yellow, purple, aquamarine, or white. A 4-wire pigtail (14" long) is provided for supplying power to the built-in LEDs.
